ZZ® 430 Fire Protection Collar
Pipe penetration seal up to EI 120 for rigid walls, rigid floors and flexible walls. Through penetration firestop system for flammable pipes.
System component information
| Name | ZZ® 430 Fire Protection Collar |
| Manufacturer | ZAPP-ZIMMERMANN |
| Designation | Diameter | Art.-Nr. | VE |
|---|---|---|---|
| ZZ® 430-32 Fire Protection Collar | Ø 32 | B16N01-0001 | 1 |
| ZZ® 430-40 Fire Protection Collar | Ø 40 | B16N01-0002 | 1 |
| ZZ® 430-110 Fire Protection Collar | Ø 50-110 | B16N01-0003 | 1 |
| ZZ® 430-160 Fire Protection Collar | Ø 125-160 | B16N01-0004 | 1 |
Detailinformationen
- Description
Details
- Trade name:ZZ® 430 Fire Protection Collar; ZZ-Collar NE
- Description: Collar consisting of a sheet steel case and a fire protection element based on polyurethane with halogen-free intumescent fire retardants.
- Implementation areas: Pipe penetration seal EI90/EI120 for rigid walls, rigid floors and flexible walls. Fire protection of thermoplastic pipes up to an outer diameter of 160 mm.
- Approvals / certificates:
- European Technical Approval ETA-13/0117, OIB
- EC Certificate of Conformity 0761-CPD-0301
- Trade name:ZZ® 430 Fire Protection Collar; ZZ-Collar NE
- Additional Information
Additional Information

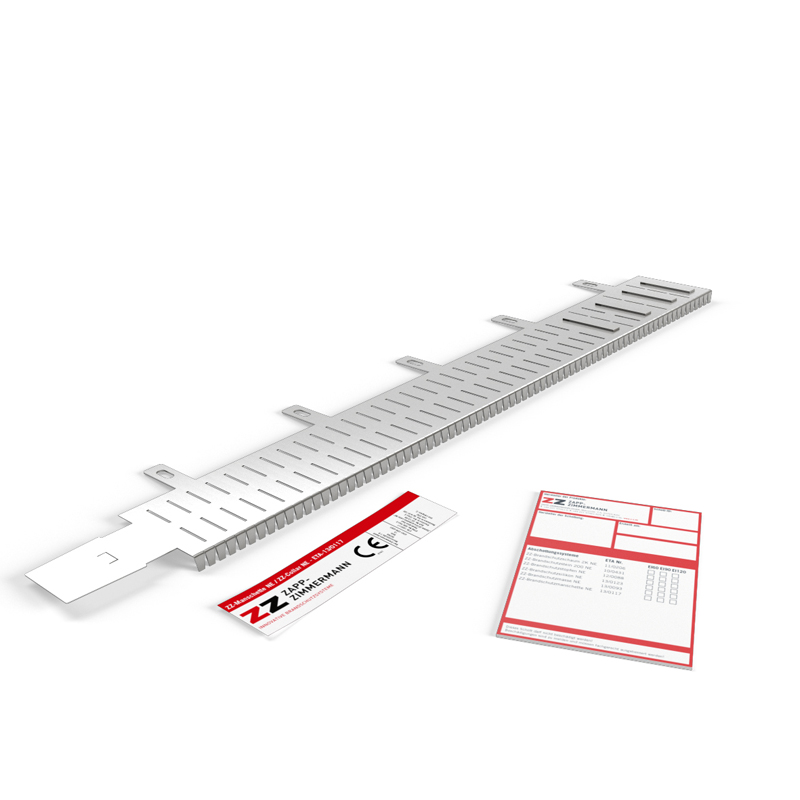

Product Information The Pipe Collar ZZ® 430 consists of a sheet metal body and an intumescent inlay. The sound insulation is included in the scope of delivery.
storage temperature 5 °C – 30 °C
