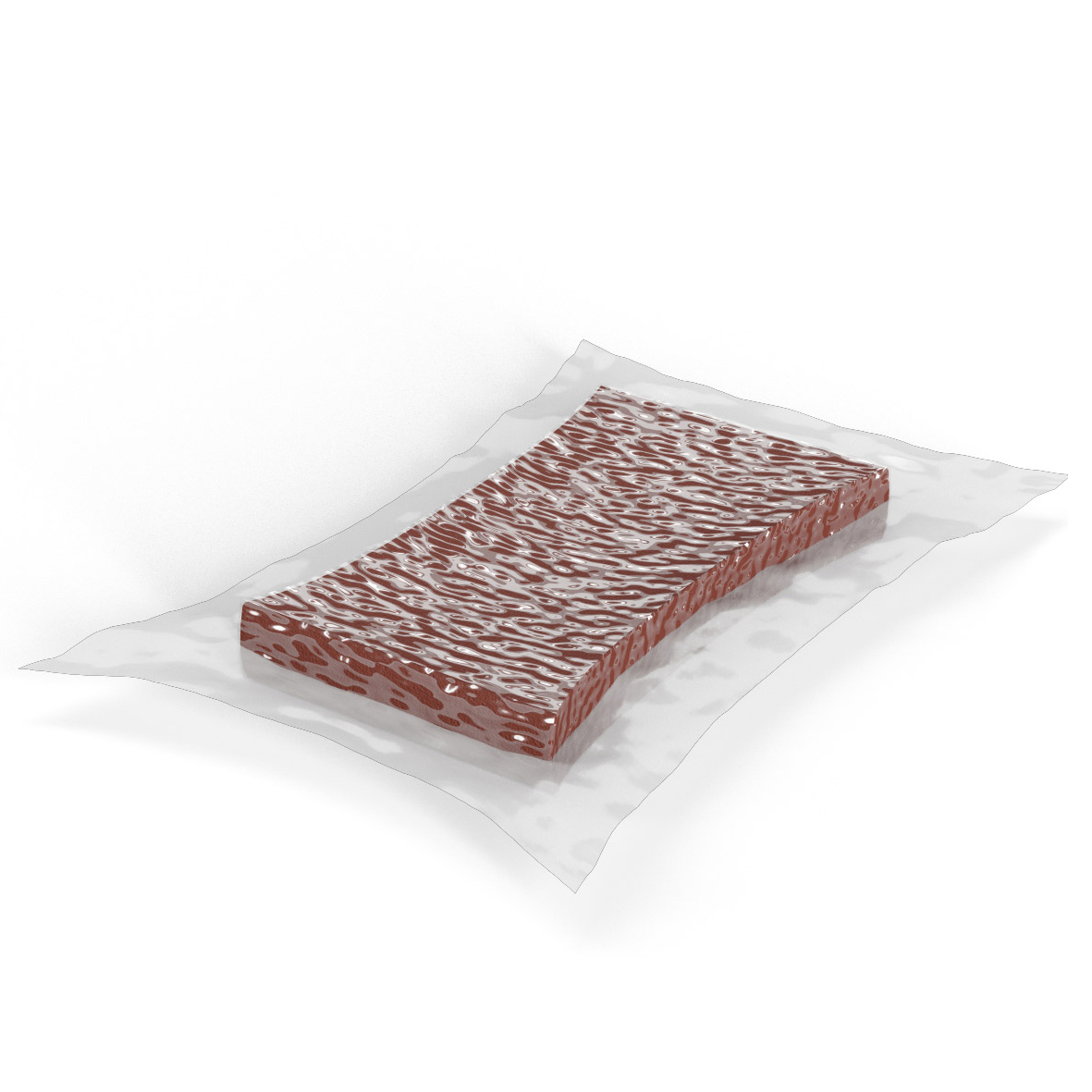

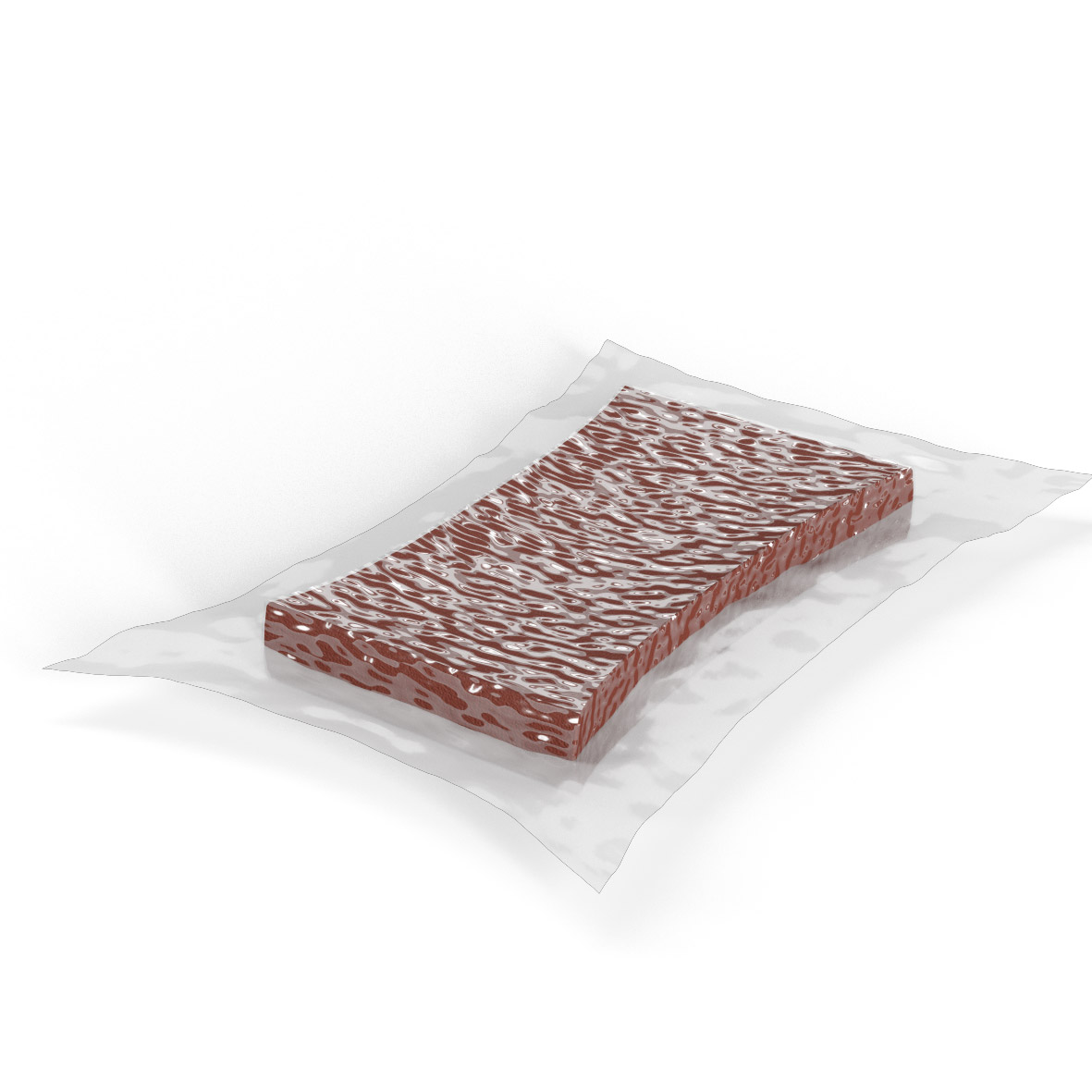

ZZ-Stein 200 NE, vakuumverpack
ZZ-Stein 200 NE, vakuumverpack

ZZ® 230-144-V Fire Protection Block

For easier sealing of narrow residual openings, the ZZ® 230-144-V Fire Protection Block (ZZ-Foam Block 200 NE), vacuum-packed can be used. After opening the foil the ZZ® 230-144-V Fire Protection Block (ZZ-Foam Block 200 NE), vacuum-packed expands to standard size. The foil can remain in the bulkhead after expansion.

System component information

Name ZZ® 230-144-V Fire Protection Block
Manufacturer ZAPP-ZIMMERMANN
Designationlength [mm]Art.-Nr.VE
ZZ® 230-144-V Fire Protection Block200B01V02-0003
B01V07-0001
2
7

Detailinformationen

Downloads
  • Technisches Datenblatt Brandschutzstein ZZ 230
  • Brandschutzstein ZZ230-20170701
Description

Details

Trade name:ZZ® 230-V Fire Protection Block; ZZ-Fire Protection Block 200 NE

Description: Square moulded part consisting of intumescent polyurethane foam with halogen-free fire safety additives.

Implementation areas: Mixed penetration seal for rigid walls, rigid floors and flexible walls. Through penetration firestop system for electrical cables, telecommunication cables and optical fibre cables, electrical installation conduits, as well as flammable and non-flammable pipes.

Approvals / certificates:
  • European Technical Approval ETA-10/0431, OIB
  • European Technical Approval ETA-11/0206, OIB
  • EC Certificate of Conformity 0761-CPD-0208
  • EC Certificate of Conformity 0761-CPD-0187
Additional Information

Additional Information

Product Information

200 x 144 x 60 [mm]

storage temperature5 °C – 30 °C
