Brandschutzfugendichtung ZZ 530 Ø 16
Brandschutzfugendichtung ZZ 530 Ø 16

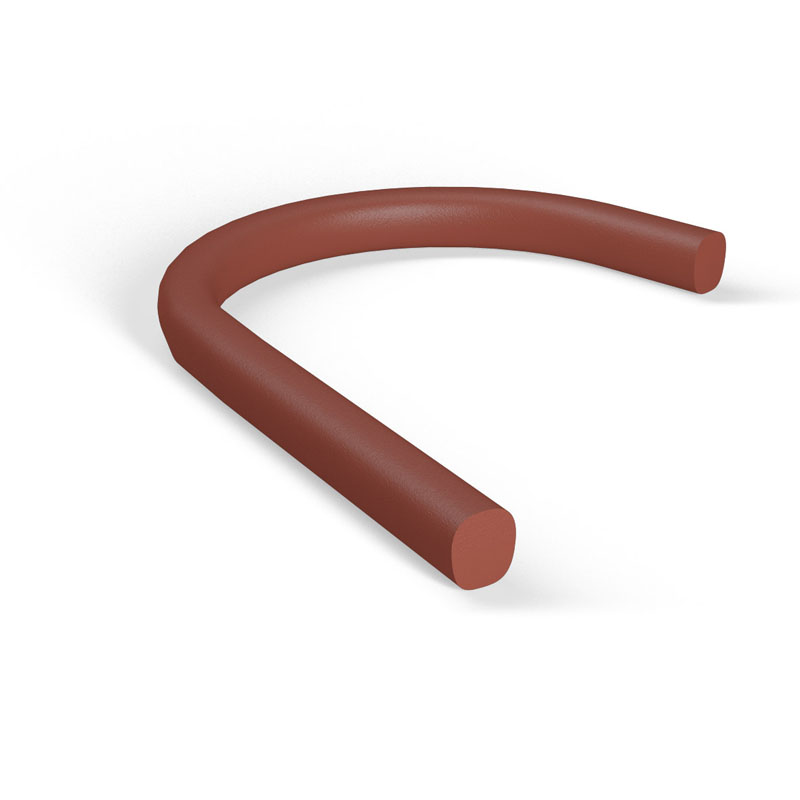

ZZ® 530 Fire Protection Joint Seal

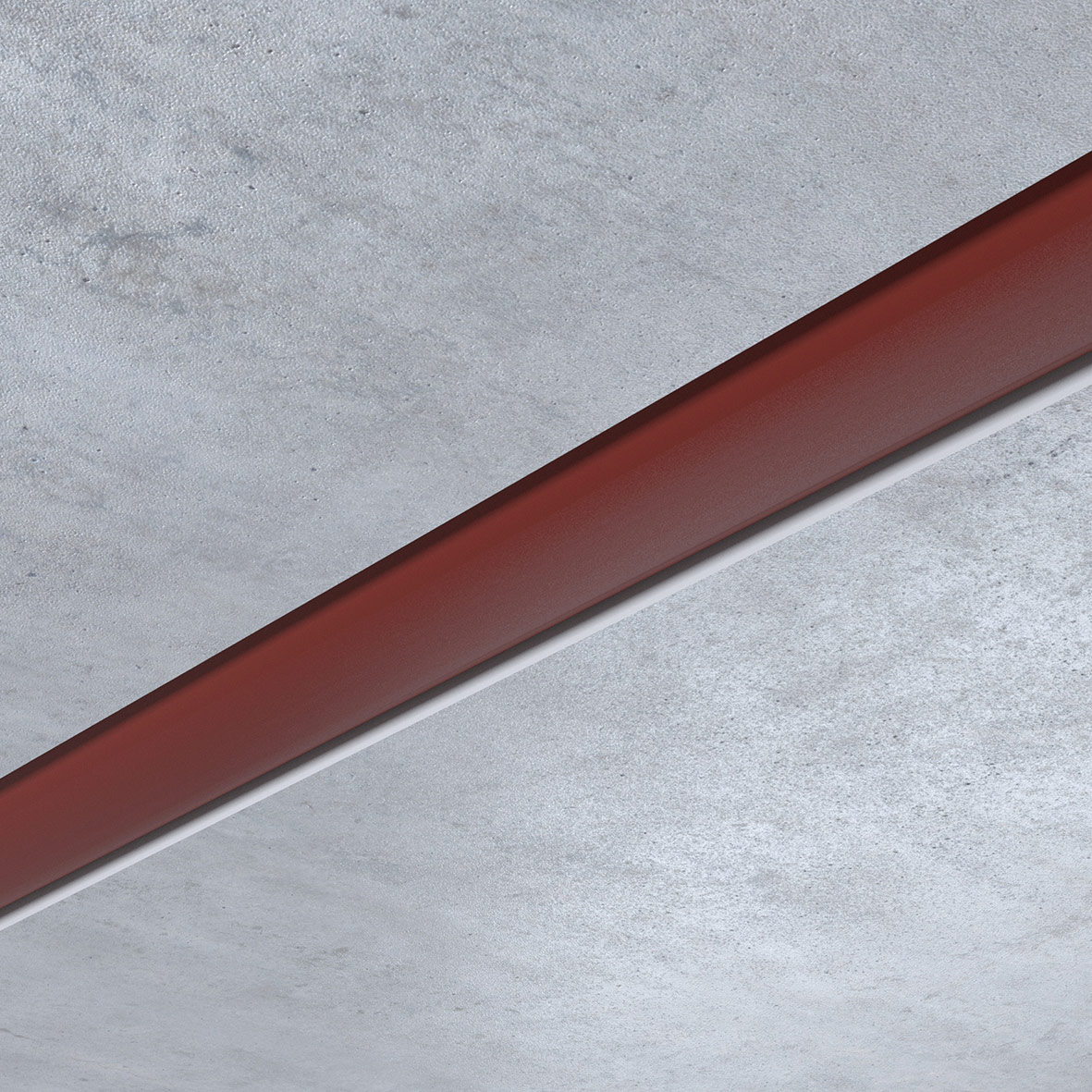

The ZZ® 530 Fire Protection Joint Seal is simply pushed into the joint from both sides with the prescribed excess dimensions. Through its elastic structure it can compensate elongation movements up to 25 %. Bonding with the structural component is not necessary for installation of the ZZ® 530 Fire Protection Joint Seal. Alternatively, as closure, in addition a sealant can be applied (e.g. silicone OTTOSEAL S 115 or acrylic OTTOSEAL A 207).

Name ZZ® 530 Fire Protection Joint Seal
Manufacturer ZAPP-ZIMMERMANN
DesignationDiameterArt. no.PU
ZZ® 530-16 Fire Protection Joint SealØ 16B08V20-000120
ZZ® 530-24 Fire Protection Joint SealØ 24B08V20-000220
ZZ® 530-30 Fire Protection Joint SealØ 30B08V20-000320
ZZ® 530-39 Fire Protection Joint SealØ 39B08V20-000420
ZZ® 530-49 Fire Protection Joint SealØ 49B08V10-000110
ZZ® 530-60 Fire Protection Joint SealØ 60B08V08-00018
ZZ® 530-70 Fire Protection Joint SealØ 70B08V06-00016
ZZ® 530-80 Fire Protection Joint SealØ 80B08V04-00014

Detailed information

Downloads
  • Technical data sheet
  • Safety data sheet
  • Declaration of Performance
Description

Approval: ETA-12/0119

Reaction to fire in accordance with DIN EN 13501-1: Class E

Testing the fire protection properties under environmental influences: Use category Z1 (use in indoor areas with high humidity and temperatures ≥ 0 °C)

Additional Information
Product Information

length 1000 mm
