Application examples for the intumescent behaviour

Depending on the application, ZAPP-ZIMMERMANN can influence and optimise the intumescent behaviour of a component with reference to multiple parameters.

Level of intumescence for cable and pipe penetration seals

For cable and pipe penetration seals it is important that the level of intumescence be as high as possible so that cables and pipes are protected against the encroaching fire over a distance that is as long as possible, and so that temperature transmission via the copper conductors of the cables or the copper and steel pipes is limited.

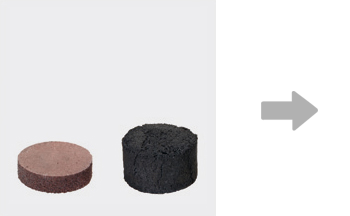

Intumescent effect – building material ZZ-Fire protection foam BDS-N minimal

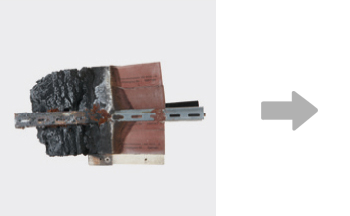

System Fire protection block 200 NE after fire
ZZ-Foam block 200 NE

Expansion pressure for pipe penetration seals

Collar systems that are used as a penetration seal for flammable pipes must, in the event of fire, develop an expansion pressure that is as strong as possible and a very high level of intumescence, so that the opening that occurs due to the burned or softened pipes is quickly and impermeably sealed.

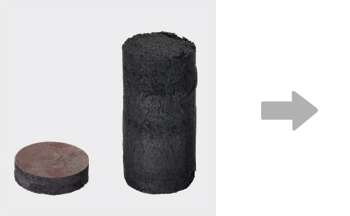

Intumescent effect – building material ZZ-Fire protection foam BDS-N maximal

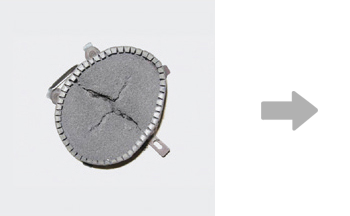

System ZZ-Fire protection collar NE after fire
ZZ-Collar NE

Stability of the insulating layer with fire protection joint seals

The level of intumescence is less critical for fire protection joint seals because joints are not penetrated by elements through which temperature could be transmitted. For the function of joint seals, it is necessary that a stable and permanent insulating layer is formed.

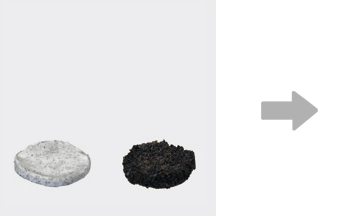

Intumescent effect – building material ZZ-Fire protection silicone NE

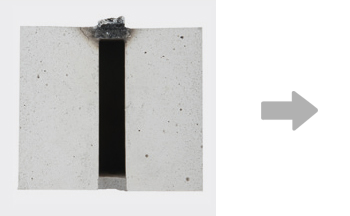

System ZZ-Fire protection silicone NE after fire
ZZ-Fire protection silicone NE
