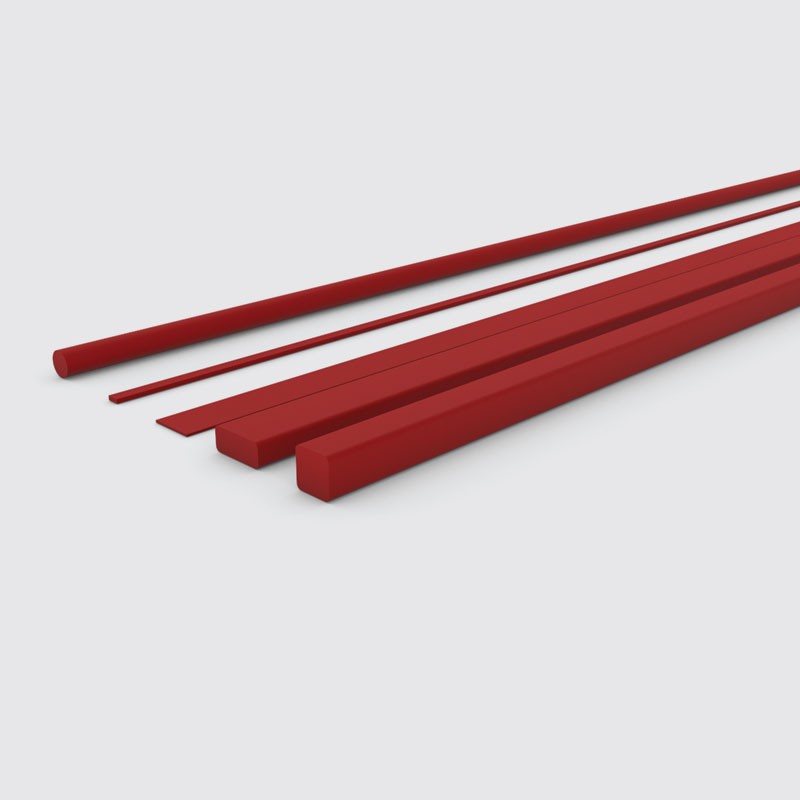

Intumescent profiles
| Building material: | ZZ-Fire protection foam BDS-N |
| Use category in accordance with ETAG 026-1: | Z1 |
| Reaction to fire in accordance with EN 13501-1: | Class E |
| Install locations: | Penetration seals, seals, inlays, etc. |
| Properties: | Soft, flexible |
| Function: | Sealing of cable penetration seals, e.g. in control cabinets |
| Designation | Length [mm] | Width [mm] | Height [mm] |
|---|---|---|---|
| Profile cut to size | 1000 | 10 | 10 |
| Profile cut to size | 1000 | 20 | 20 |
| Profile cut to size | 1000 | 30 | 30 |
| Profile cut to size | 1000 | 40 | 40 |
| Profile cut to size | 1000 | 50 | 50 |
Other formats available on request.
Einsatzbereiche:

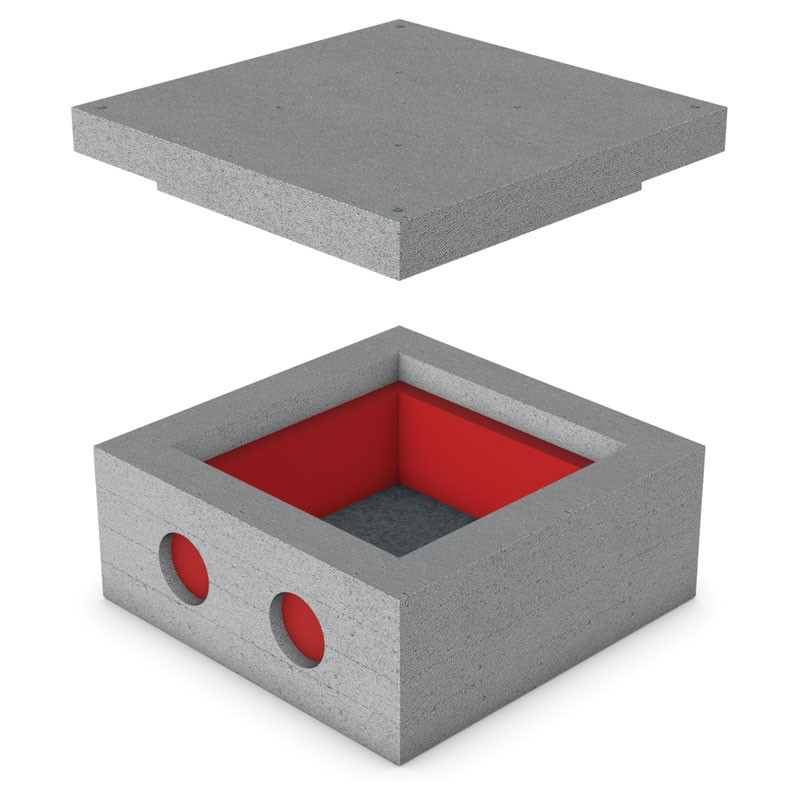

Inner through penetration firestop system in boxes
Inner through penetration firestop system in boxes

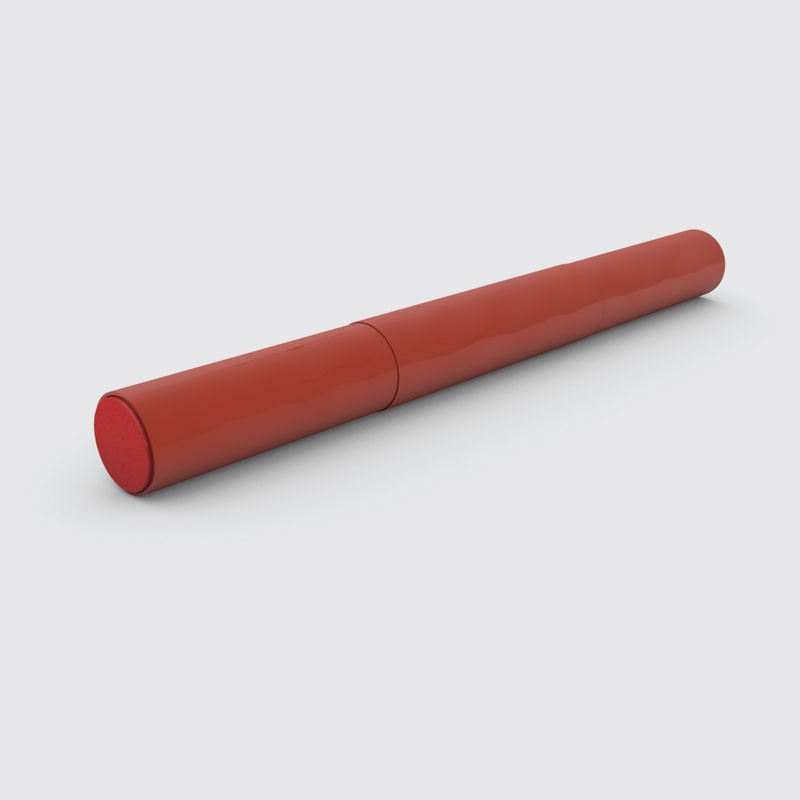

Fire protection composite elements
| Building material: | ZZ-Fire protection foam BDS-N with silicone outer skin |
| Properties: | Soft, flexible, tear-resistant, resistant to weathering |
| Function: | In the event of fire, it protects the EPDM joint seal and the concrete flanks in tunnel structures |
| Dimensions: | Length: up to 20 m (with end-to-end connections) Diameter: 20 to 50 mm Delivery on request |
Einsatzbereiche:

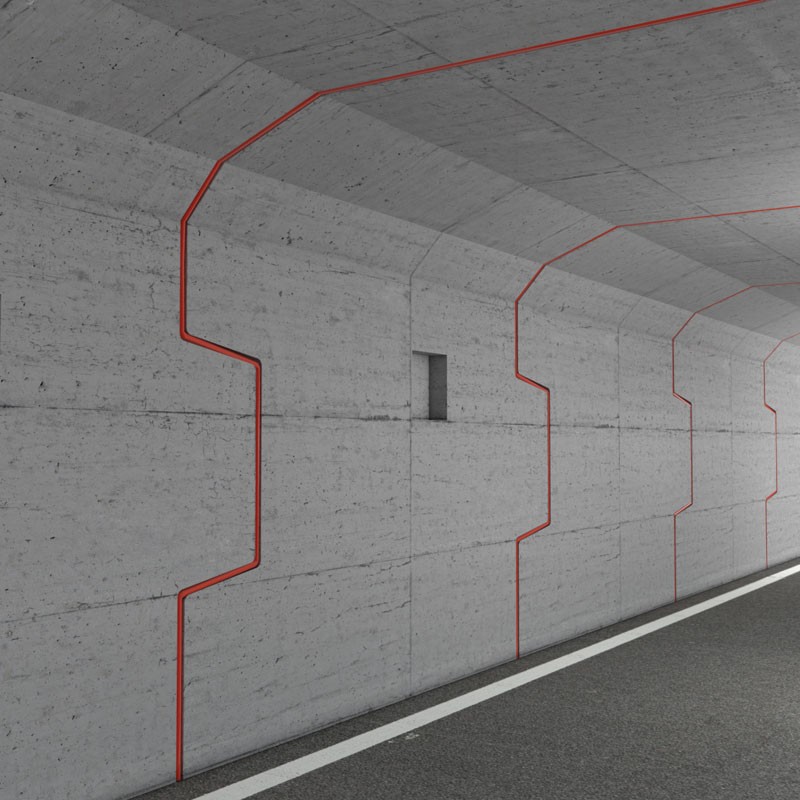

Fire protection joint seals in building construction or in tunnels
Fire protection joint seals in building construction or in tunnels

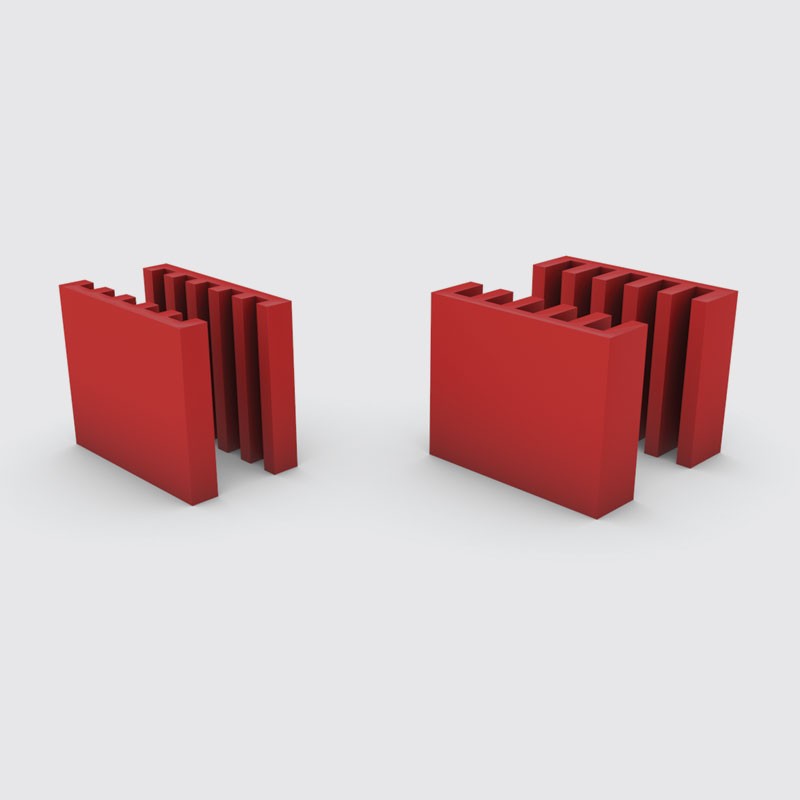

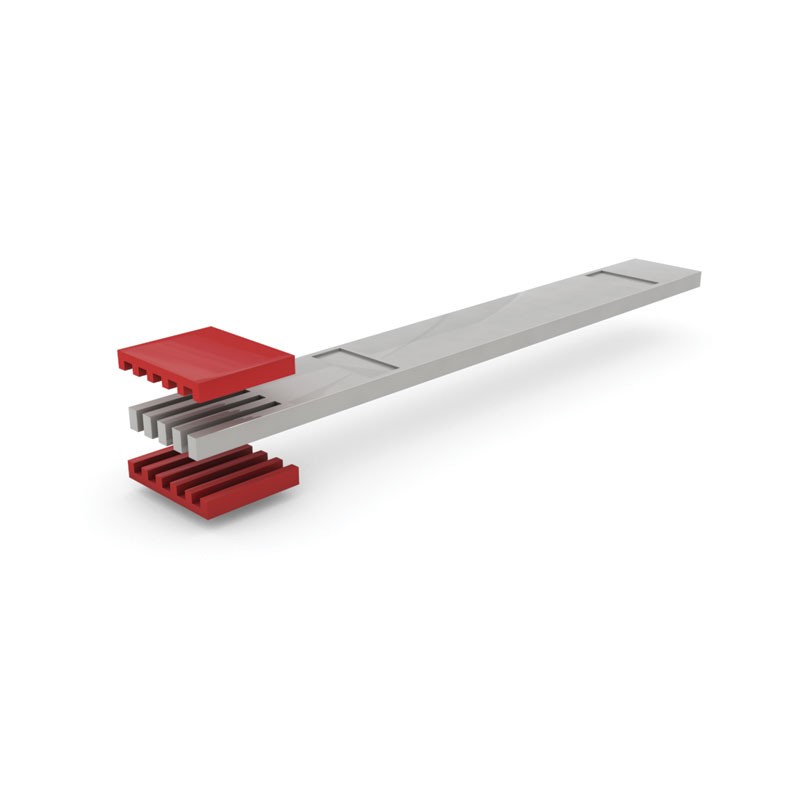

Fire protection special parts (comb-shaped)
| Building material: | ZZ-Fire protection foam TS |
| Install locations: | Busbar penetration seal |
| Properties: | Soft, fl exible, dense approx. 250 g/dm³ |
| Function: | Prevention of heat conductance via the busbar system |
| Designation | W x H x D [mm] |
|---|---|
| Busbar protection | 135 x 120 x 27 |
| Busbar protection | 135 x 120 x 55 |
Other formats available on request.
Einsatzbereiche:
Busbar penetration seal
Busbar penetration seal

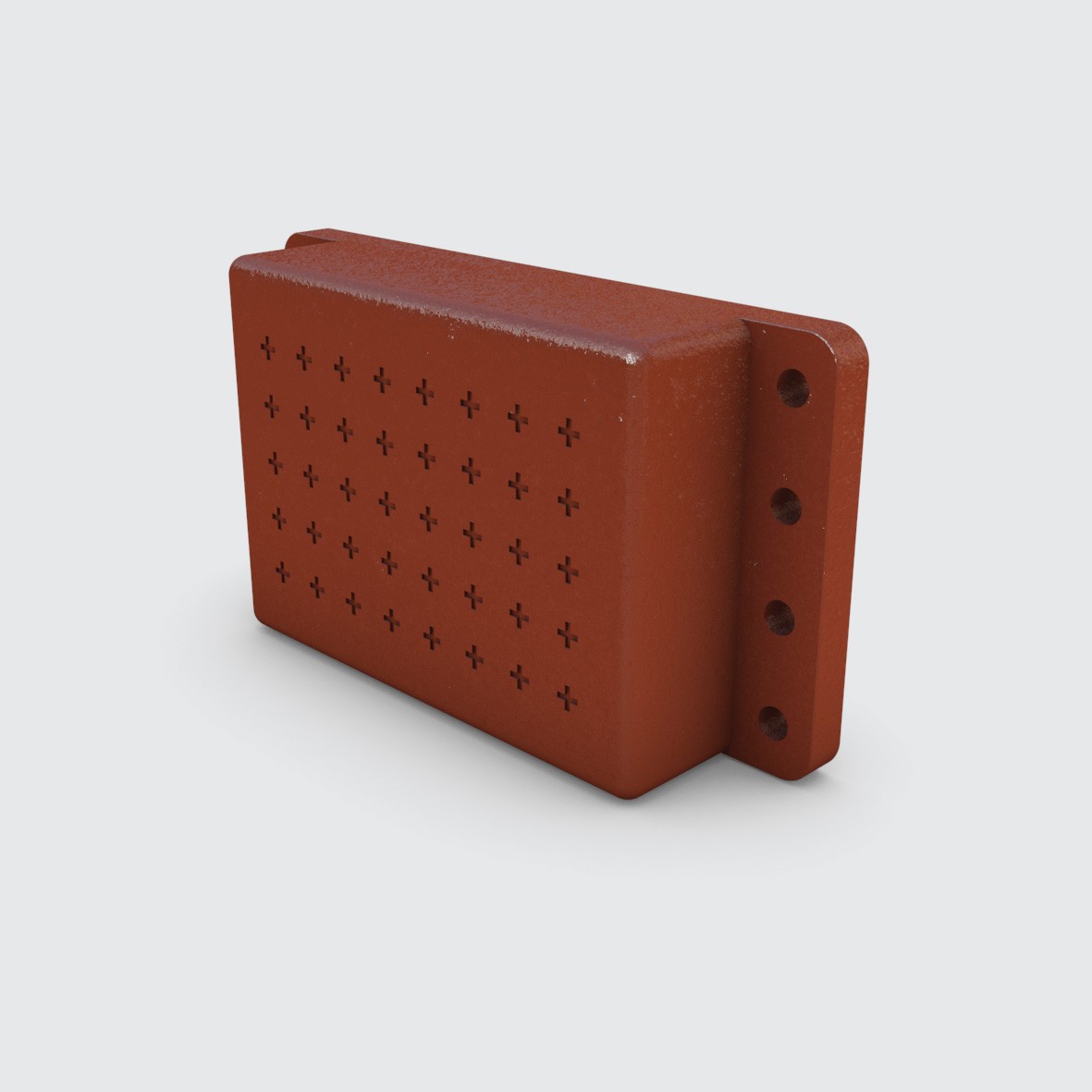

Intumescent cast parts
| Building material: | ZZ-Fire protection foam BDS-N |
| Properties: | Hard, dimensionally stable, density approx. 1150 – 1410 g/dm3 |
| Function: | Cable penetration seal |
Einsatzbereiche:
Cable penetration seal in control cabinets
Cable penetration seal in control cabinets
Intumescent linings
| Building material: | ZZ-Fire protection foam BDS-N var. F |
| Use category in accordance with ETAG 026-1: | Z1 |
| Reaction to fire in accordance with EN 13501-1: | Class E |
| Properties: | Flexible, density approx. 1000 g/dm3 |
| Function: | Closure of the plastic pipe in the event of fi re |
| Designation | Length [mm] | Width [mm] | Height [mm] |
|---|---|---|---|

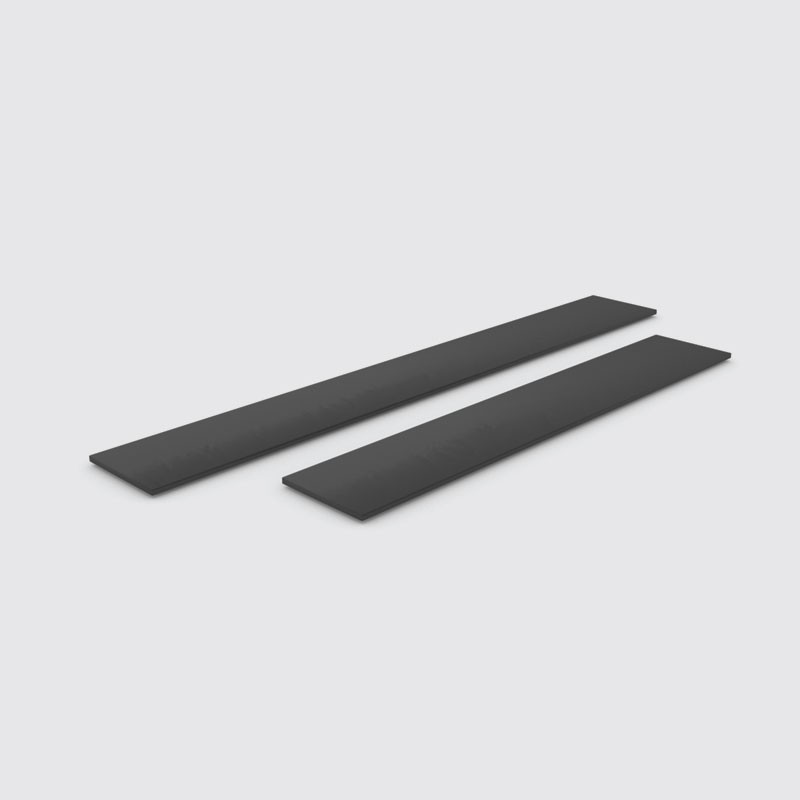

| Inlay 1 | 395 | 70 | 7 |
| Inlay 2 | 570 | 80 | 12 |
Einsatzbereiche:

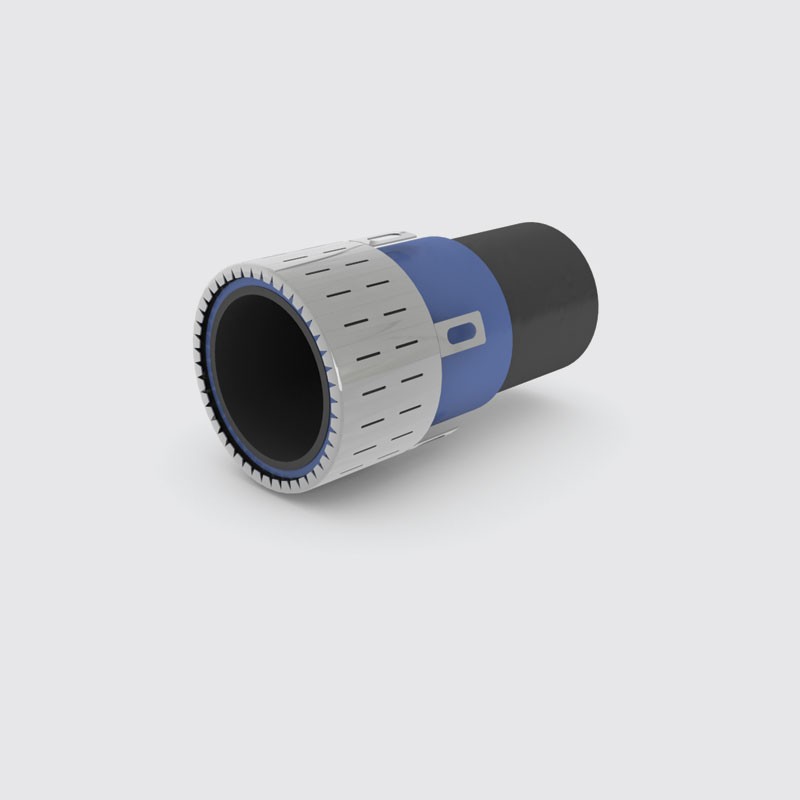

Intumescent inlay in fire protection collars for through penetration firestop systems for flammable pipes
Intumescent inlay in fire protection collars for through penetration firestop systems for flammable pipes
Fire protection seals
| Building material: | ZZ-Fire protection foam TS with high-temperature insulation (sandwich element) |
| Properties: | Soft, flexible |
| Function: | Fire protection seals in fire dampers |
| Designation | Length [mm] | Width [mm] | Height [mm] |
|---|---|---|---|

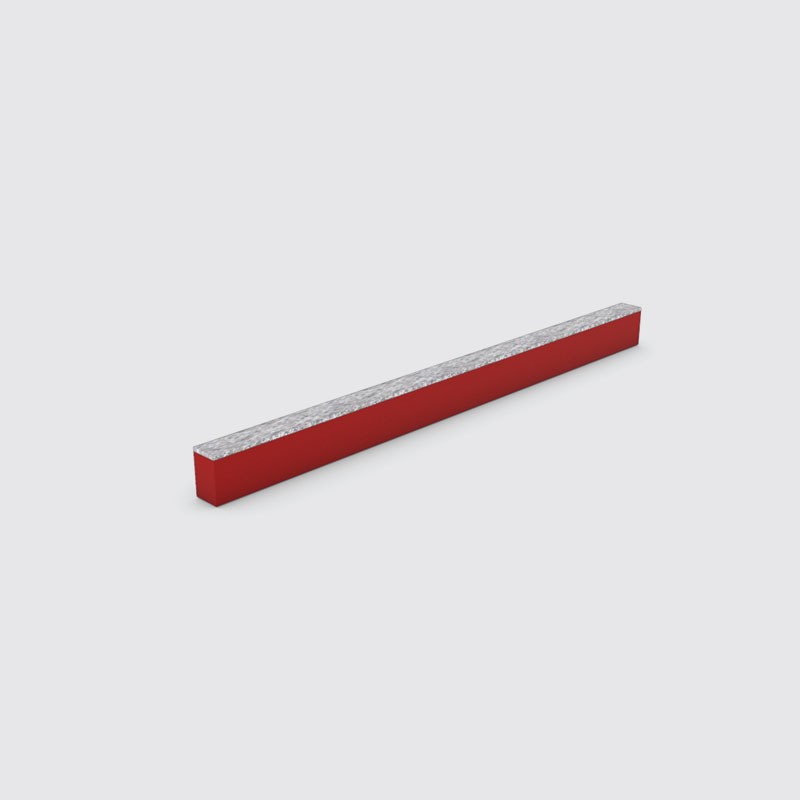

| Sandwich element | 1000 | 10 | 15 |
| Sandwich element | 1000 | 15 | 15 |
| Sandwich element | 1000 | 20 | 15 |
| Sandwich element | 1000 | 25 | 15 |
| Sandwich element | 1000 | 30 | 15 |
Einsatzbereiche:

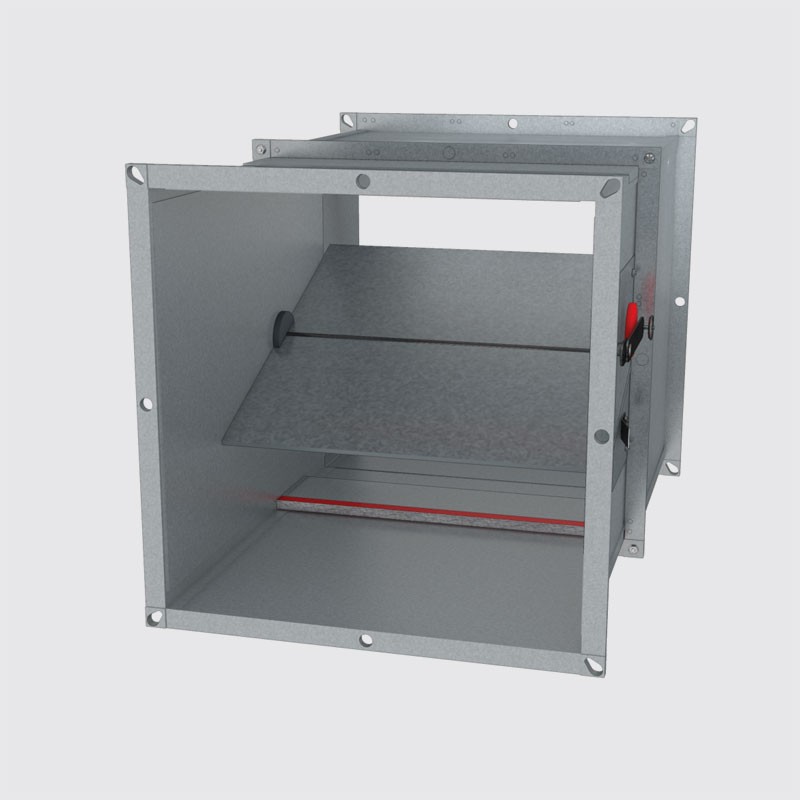

Sealing profile in fire dampers
Sealing profile in fire dampers

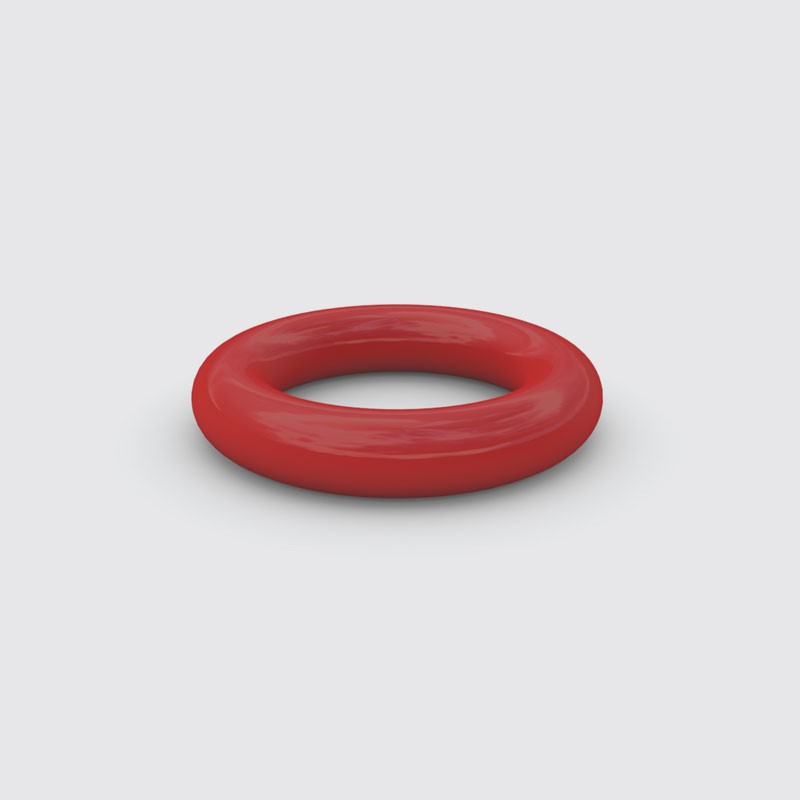

Fire protection seals
| Building material: | ZZ-Fire protection foam BDS-N |
| Properties: | Soft, flexible, dense approx. 250 g/dm3 |
| Function: | Sealing of valves |
| Designation | Ø [mm] | Height [mm] |
|---|---|---|
| Ring | 100 | 12-27 |
| Ring | 125 | 12-27 |
| Ring | 150 | 12-27 |
| Ring | 160 | 12-27 |
| Ring | 200 | 12-27 |
Einsatzbereiche:

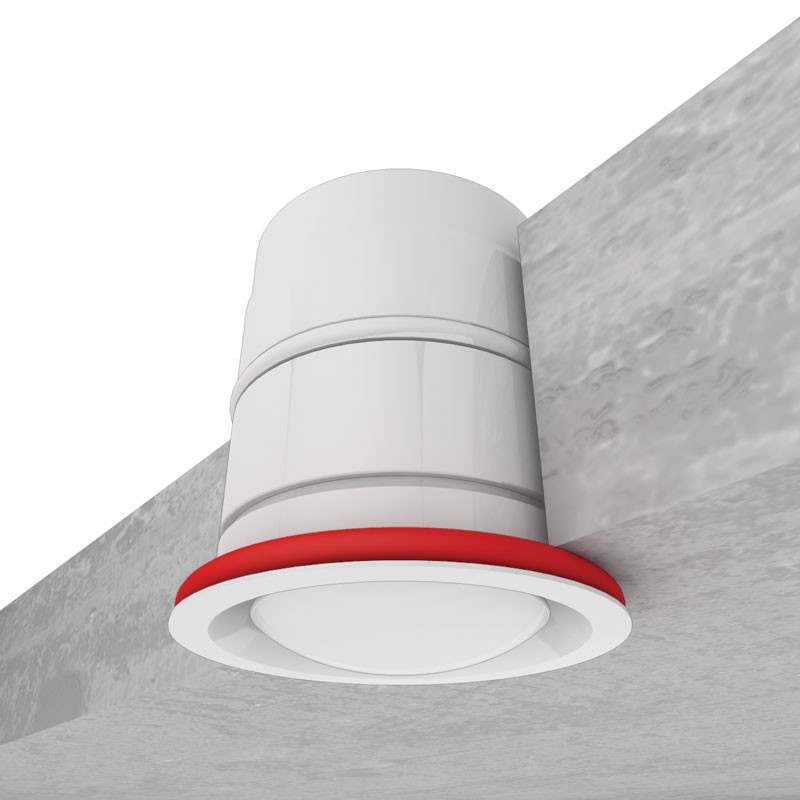

Seals for fire disc valves
Seals for fire disc valves
