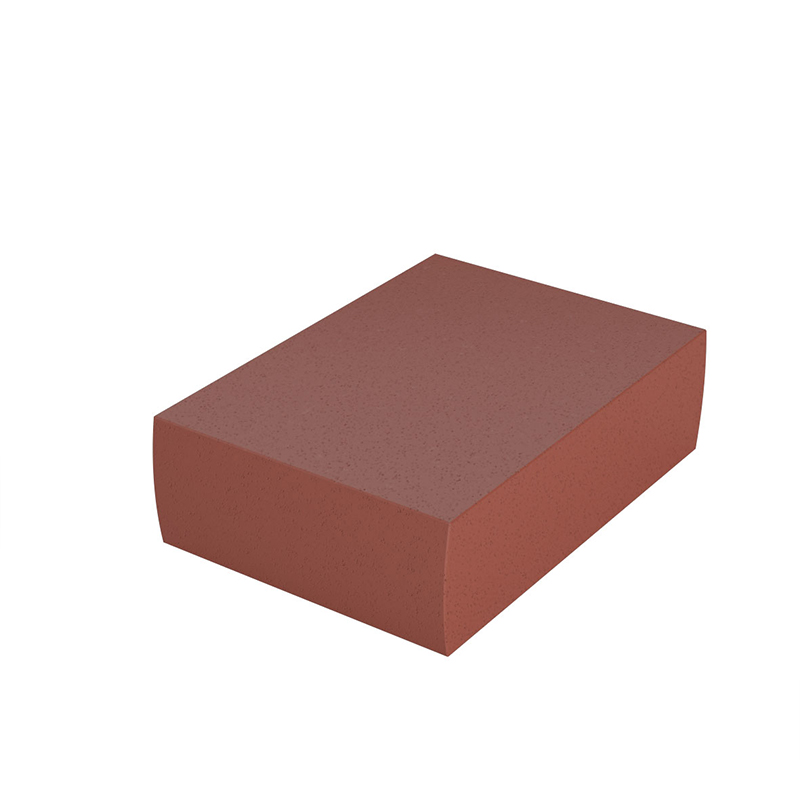

ZZ® 230-144 Fire Protection Block
ZZ® 230-144 Fire Protection Block (ZZ-Foam Block 200 NE) is a soft, flexible moulded foam part that is used in ZZ® M20, and as a filling block for free areas without penetrating installations in ZZ® M30 mixed penetration sealing systems.
System component information
| Name | ZZ® 230-144 Fire Protection Block |
| Manufacturer | ZAPP-ZIMMERMANN |
| Designation | length [mm] | Art.-Nr. | VE |
|---|---|---|---|
| ZZ® 230-144 Fire Protection Block | 200 | B01V01-0004 B01V04-0003 B01V18-0001 | 1 4 18 |
Detailinformationen
- Description
Details
- Trade name:ZZ® 230 Fire Protection Block; ZZ-Fire Protection Block 200 NE
- Description: Square moulded part consisting of intumescent polyurethane foam with halogen-free fire safety additives.
- Implementation areas: Mixed penetration seal for rigid walls, rigid floors and flexible walls. Through penetration firestop system for electrical cables, telecommunication cables and optical fibre cables, electrical installation conduits, as well as flammable and non-flammable pipes.
- Approvals / certificates:
- European Technical Approval ETA-10/0431, OIB
- European Technical Approval ETA-11/0206, OIB
- EC Certificate of Conformity 0761-CPD-0208
- EC Certificate of Conformity 0761-CPD-0187
- Trade name:ZZ® 230 Fire Protection Block; ZZ-Fire Protection Block 200 NE
- Additional Information
Additional Information
Product Information 200 x 144 x 60 [mm]
width [mm] 144 Heigth [mm] 60 storage temperature 5 °C – 30 °C
