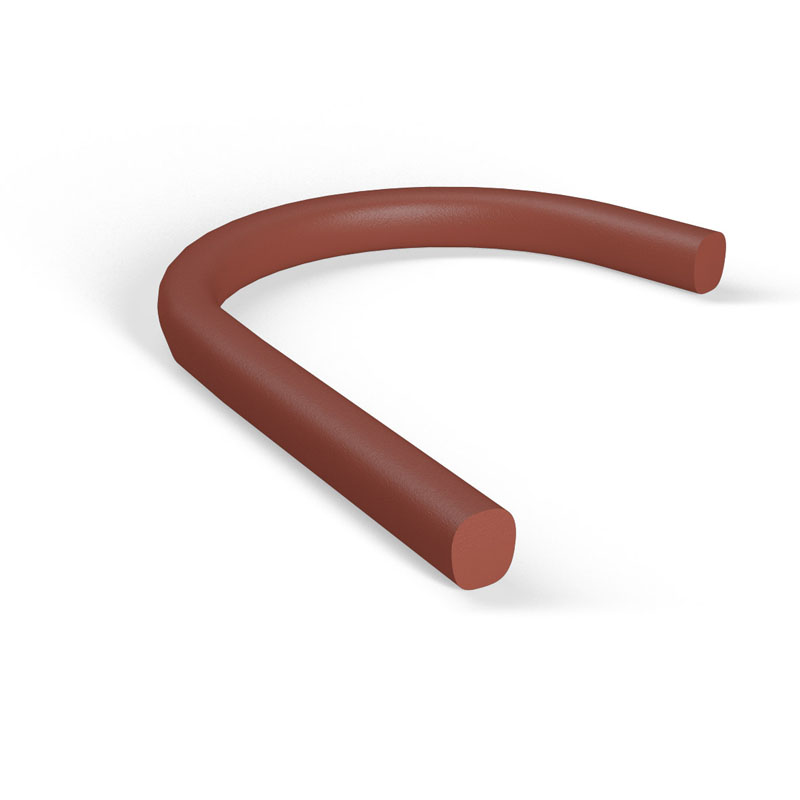

ZZ® 581 Fire Protection Joint Seal
Elastic fire protection joint seal for flue gas-tight joints of third-party railway vehicle modules or for separating the railway vehicle from the outer shell.
System component information
| Name | ZZ® 581 Fire Protection Joint Seal |
| Manufacturer | Karl Zimmermann GmbH |
| Designation | Durchmesser | Art. no. | PU |
|---|---|---|---|
| ZZ® 581-16 Fire Protection Joint Seal | Ø 16 | B08N02-0024 | 1 |
| ZZ® 581-24 Fire Protection Joint Seal | Ø 24 | B08N02-0025 | 1 |
| ZZ® 581-30 Fire Protection Joint Seal | Ø 30 | B08N02-0026 | 1 |
| ZZ® 581-39 Fire Protection Joint Seal | Ø 39 | B08N02-0027 | 1 |
| ZZ® 581-49 Fire Protection Joint Seal | Ø 49 | B08N02-0028 | 1 |
| ZZ® 581-60 Fire Protection Joint Seal | Ø 60 | B08N02-0029 | 1 |
| ZZ® 581-70 Fire Protection Joint Seal | Ø 70 | B08N02-0030 | 1 |
| ZZ® 581-80 Fire Protection Joint Seal | Ø 80 | B08N02-0031 | 1 |
Detailed information
- Downloads
- Description
Elastic fire protection joint seal for flue gas-tight joints of third-party railway vehicle modules or for separating the railway vehicle from the outer shell.
- Additional Information
Classification of the reaction to fire according to DIN EN 13501-1 Class E Thermal conductivity λ = 0.103 W/(m*K) Test standard: DIN EN 12667 Bulk density ρ ≥ 230 kg/m³ Storage temperature 5 °C – 30 °C safety instructions Please refer to the safety data sheet.
