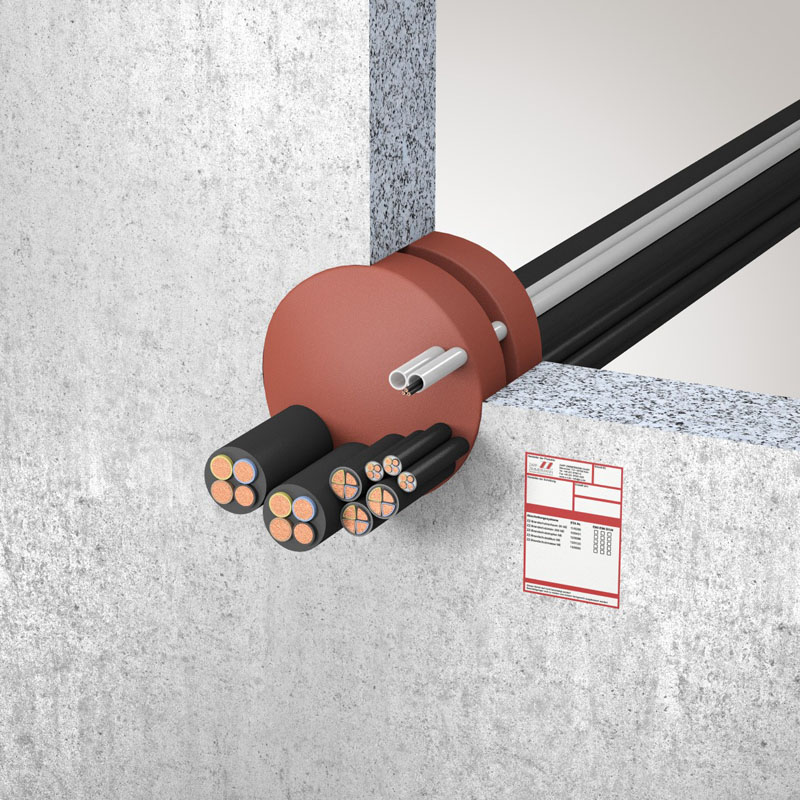

Fire Protection Plug ZZ NE rigid wall

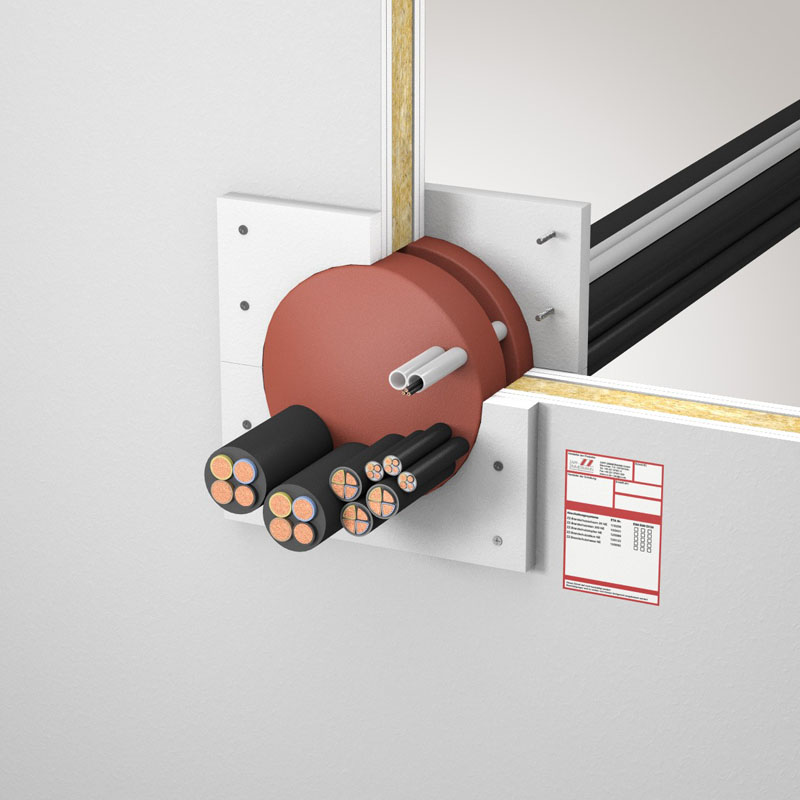

Fire Protection Plug ZZ NE flexible wall
Fire Protection Plug ZZ NE rigid wall
Fire Protection Plug ZZ NE flexible wall

ZZ® C10

Cable penetration seal up to EI 120 for rigid walls, rigid floors and flexible walls. Through penetration firestop system for electrical cables, telecommunication cables, optical fibre cables and conduits

Test norm EN 1366-3
Approval Number ETA-12/0088
Fire resistance class E, EI
Fire resistance duration [min] 90, 120
Seal type Cable penetration seal
Seal opening round
approved components flexible wall, rigid wall, rigid floor

System components

DesignationArt. no.PU
ZZ® 130 Fire Protection Plug show variants
DesignationDiameter [mm]Art. no.PU
ZZ® 130-65 Fire Protection PlugØ 65B02V02-0009
B02V04-0006
B02V20-0008		2
4
20
ZZ® 130-78 Fire Protection PlugØ 78B02V02-0010
B02V04-0007
B02V20-0009		2
4
20
ZZ® 130-107 Fire Protection PlugØ 107B02V02-0011
B02V04-0008
B02V20-0010		2
4
20
ZZ® 130-122 Fire Protection PlugØ 122B02V02-0012
B02V04-0009
B02V20-0011		2
4
20
ZZ® 130-134 Fire Protection PlugØ 134B02V02-0013
B02V04-0010
B02V20-0012		2
4
20
ZZ® 130-165 Fire Protection PlugØ 165B02V02-0014
B02V20-0013		2
20
ZZ® 130-200 Fire Protection PlugØ 200B02V02-0015
B02V10-0004		2
10
ZZ® 130-250 Fire Protection PlugØ 250B02V02-0016
B02V10-0002		2
10
ZZ® 333 Fire Protection Mastic show variants
Designation Art. no.PU
ZZ® 333 Fire Protection MasticB15N00-00131
ZZ® 333 Fire Protection MasticB15VP1-0013900
ZZ® 451-150 Fire Protection Wrap show variants
Designation Art. no.PU
ZZ® 451-150 Fire Protection WrapB04N00-00041
Identification Plate ETAB16H00-00511

Detailed information

Downloads

Download all

Description

Cable penetration seal up to EI 120 for rigid walls, rigid floors and flexible walls. Through penetration firestop system for electrical cables, telecommunication cables, optical fibre cables and conduits

Additional Information

Suitable for
  • Core holes up to 240 mm in diameter in rigid walls and floors
  • Through penetration firestop systems with frequently changing penetrating elements
Approved penetrating elements
  • Sheathed electrical cables, telecommunication cables, optical fibre cables up to a maximum outer diameter of 80 mm
  • Tied cable bundles up to a total diameter of 100 mm consisting of sheathed electrical cables, telecommunication cables, optical fibre cables with a maximum outer diameter of 21 mm (sealing of the interstices in the interior is not necessary)
  • Non-sheathed electrical cables up to a maximum outer diameter of 24 mm
  • Individual lines of steel or plastic conduits for control purposes up to a pipe outer diameter of 16 mm
  • Plastic conduits up to an outer diameter of 16 mm
  • Cable support systems (cable trays, cable racks, cable ladders) made of steel profiles can be routed through the penetration seal
Maximum dimensions in rigid wall width x height [mm]Ø 240
Maximum dimensions in flexible wall width x height [mm]Ø 240
Maximum dimensions in rigid floor width x height [mm]Ø 240
