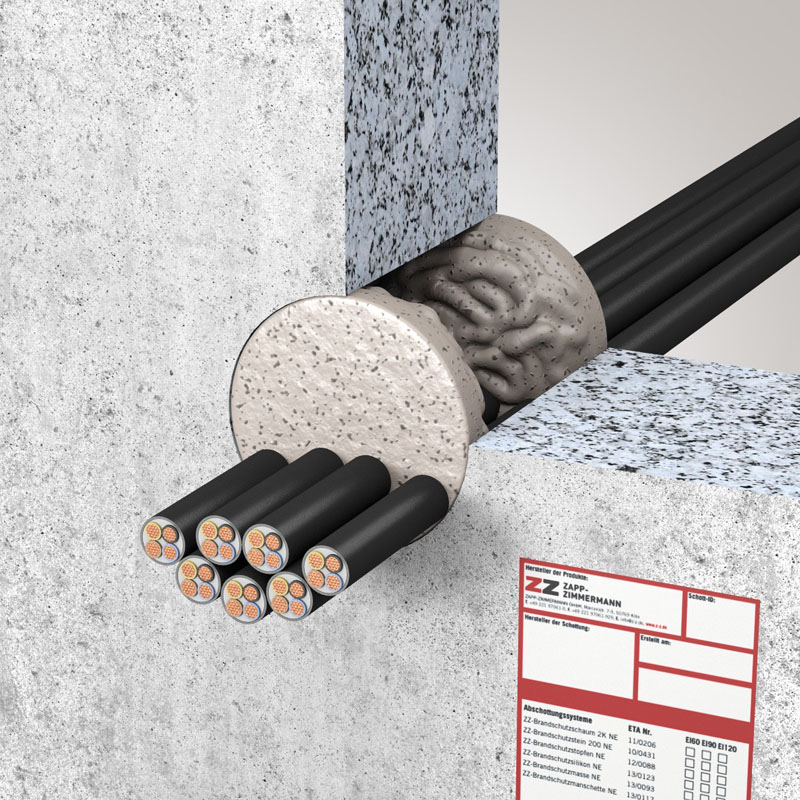

ZZ Fire Protection Silicone NE rigid wall

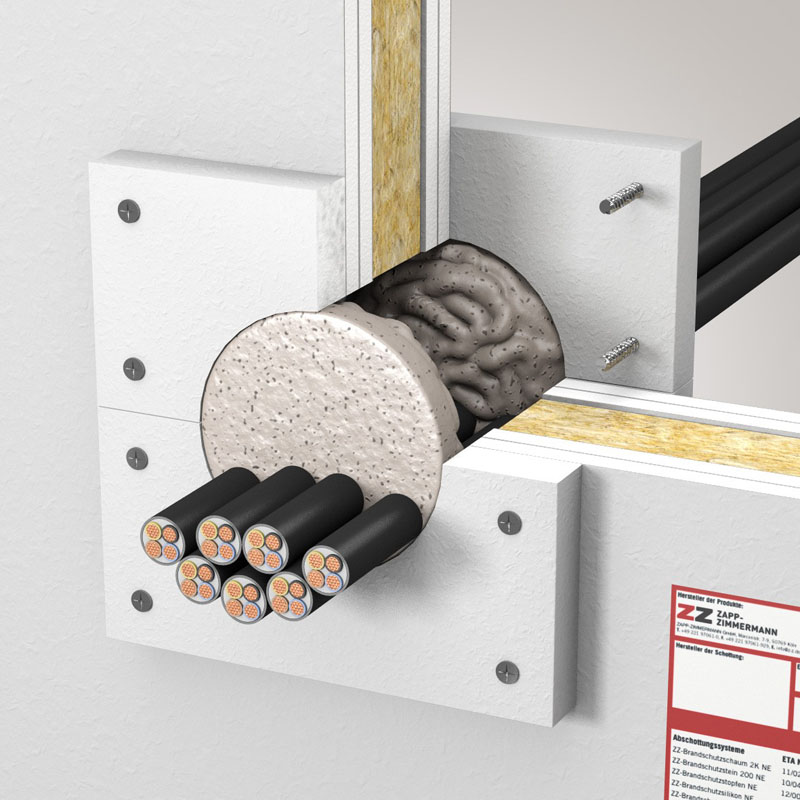

ZZ Fire Protection Silicone NE flexible wall
ZZ Fire Protection Silicone NE rigid wall
ZZ Fire Protection Silicone NE flexible wall

ZZ® C31

Cable penetration seal up to EI 120 for rigid walls, rigid floors and flexible walls. Through penetration firestop system for all types of sheathed cables except waveguides.

Test norm EN 1366-3
Approval Number ETA-13/0123
Fire resistance class E, EI
Fire resistance duration [min] 60, 90, 120
Seal type Cable penetration seal
Seal opening angular, round, unregular
approved components flexible wall, rigid wall, rigid floor

System components

DesignationArt. no.PU
ZZ® 345 Fire Protection Silicone show variants
DesignationContentsArt. no.PU
ZZ® 345-C Fire Protection SiliconecartridgeB15H00-00011
ZZ® 345-TB Fire Protection Siliconetubular bagB15H00-00021
Identification Plate ETAB16H00-00511

Detailed information

Downloads

Download all

Description

Cable penetration seal up to EI 120 for rigid walls, rigid floors and flexible walls. Through penetration firestop system for all types of sheathed cables except waveguides.

Additional Information

Suitable for
  • Fast and easy sealing of component openings
  • Openings that are difficult to access and irregular
  • Penetration seals in the outdoor area
  • Small penetration seals
  • Fast, easy and cost-effective, and excellently suited for through penetration firestop systems in outdoor areas
  • ZZ® 345 Fire Protection Silicone has a high level of stability
  • Flammable backfill is possible
  • Low filling depth
  • Can be used in flexible wall without lining
Approved penetrating elements
  • Sheathed electrical cables, telecommunication cables, data cables and optical fibre cables except waveguides up to a maximum outer diameter of 21 mm
  • Retrofitting of additional cables allowed
  • Intended for use in conditions expoesed to weathering, Category Type X
Maximum dimensions in rigid wall width x height [mm]100x100 or Ø 113
Maximum dimensions in flexible wall width x height [mm]100x100 or Ø 113
Maximum dimensions in rigid floor width x height [mm]100x100 or Ø 113
