  1. Innovative Fire Safety Systems
  2. Pipe Penetration Seals

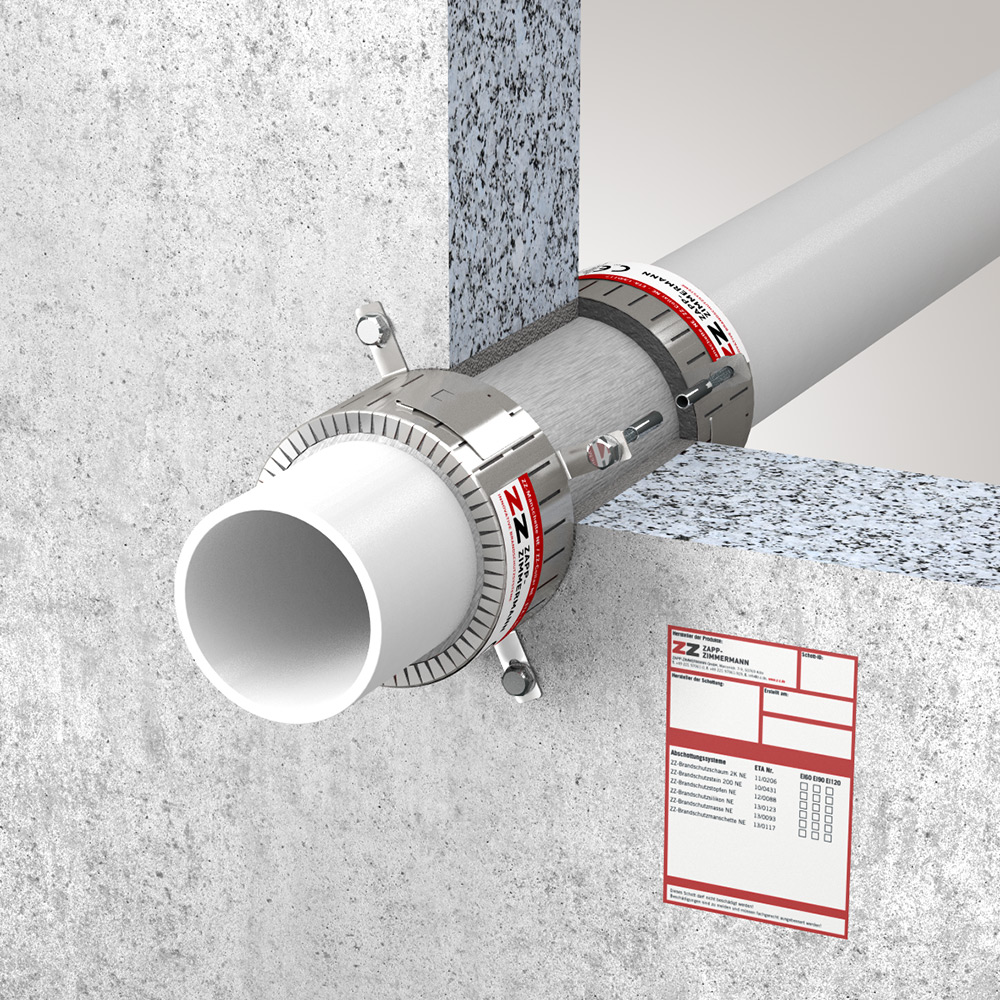

ZZ Brandschutzmanschette NE AS Kunststoffrohr in Massivwand

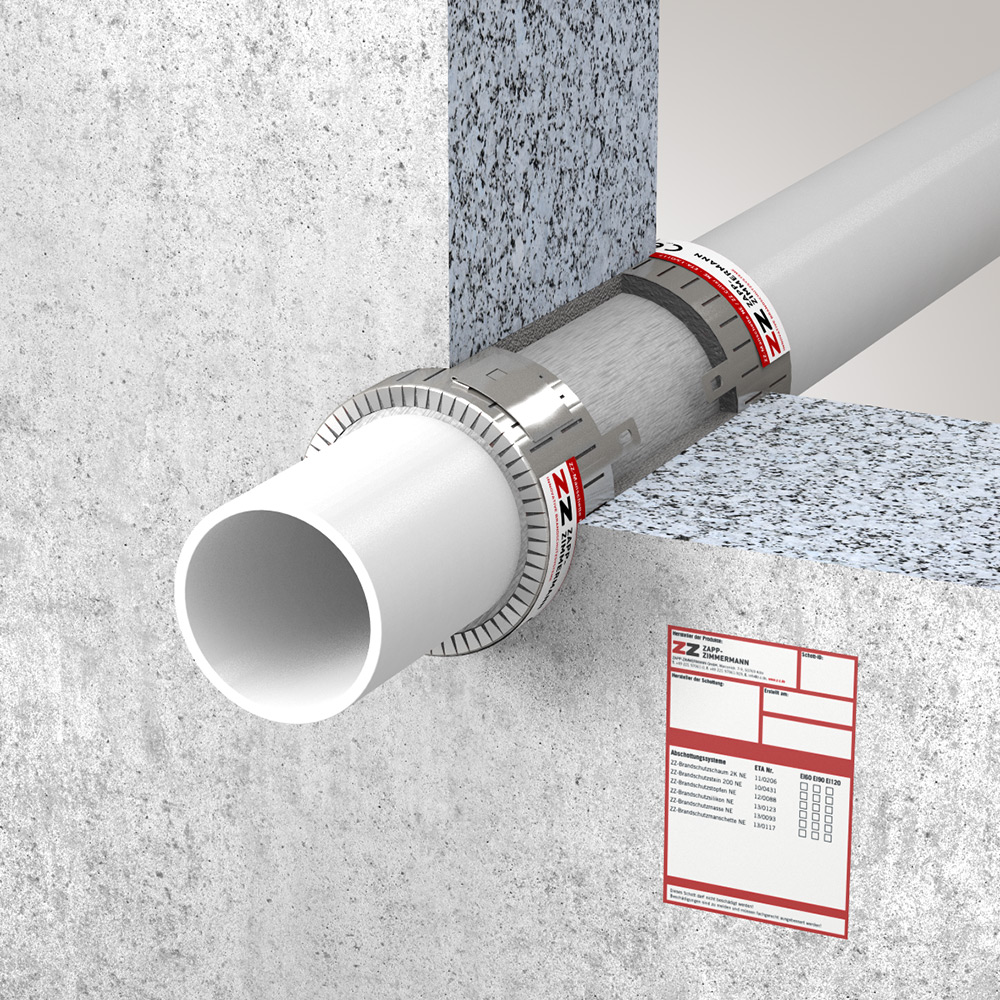

ZZ Brandschutzmanschette NE ES Kunststoffrohr in Massivwand

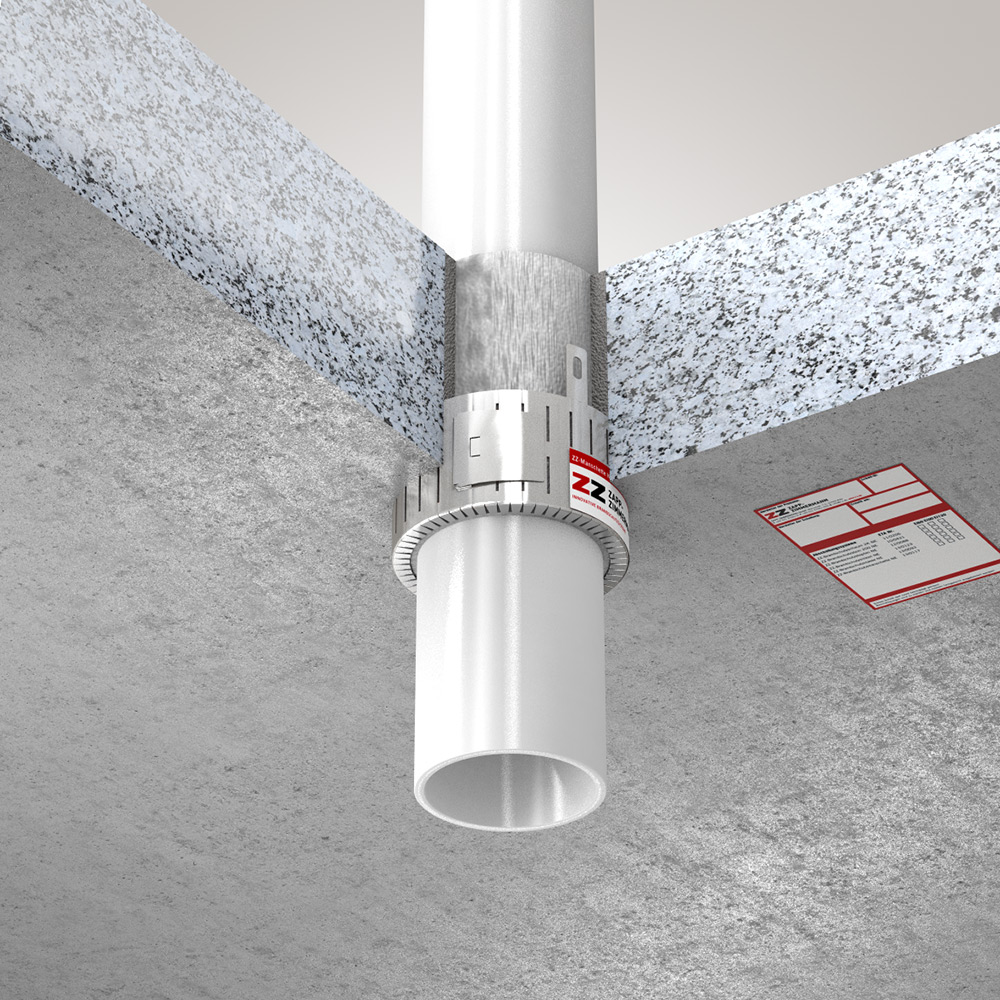

ZZ Brandschutzmanschette NE ES (Decke)

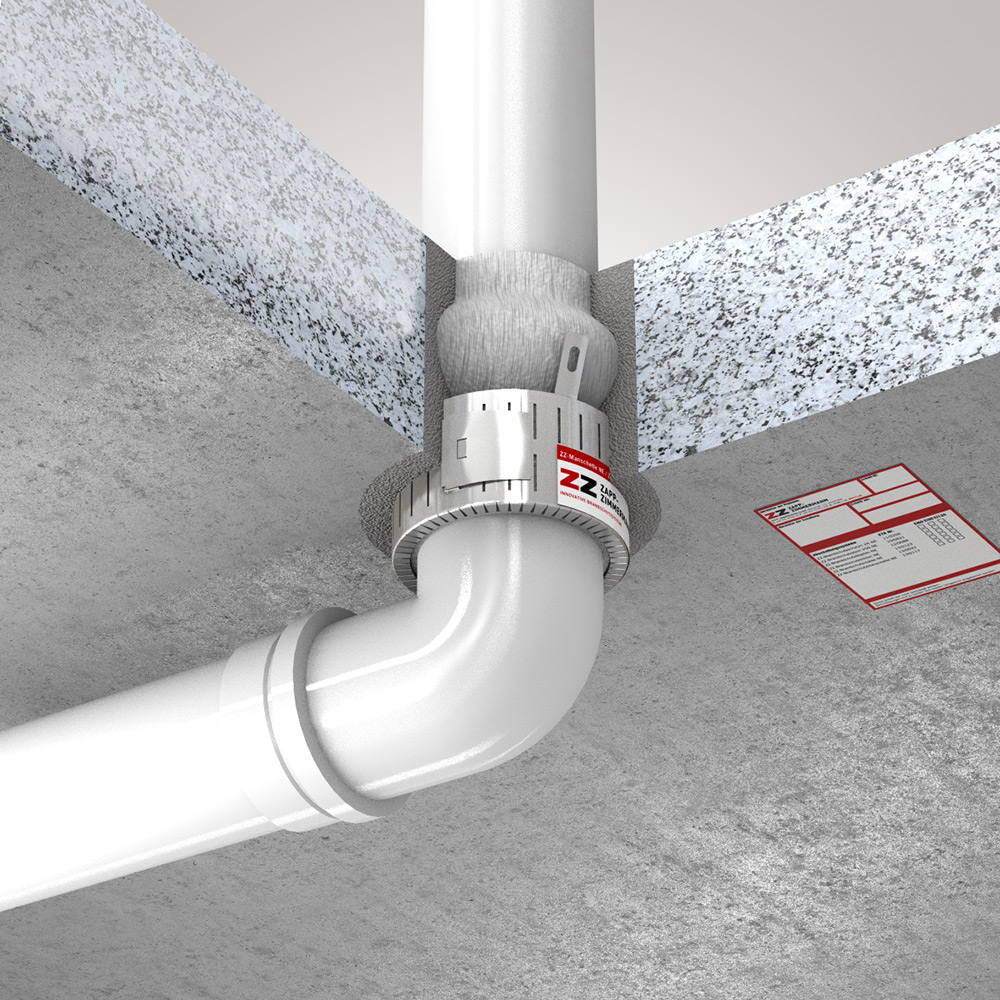

ZZ Brandschutzmanschette NE ES Muffe 90° Bogen (Decke)

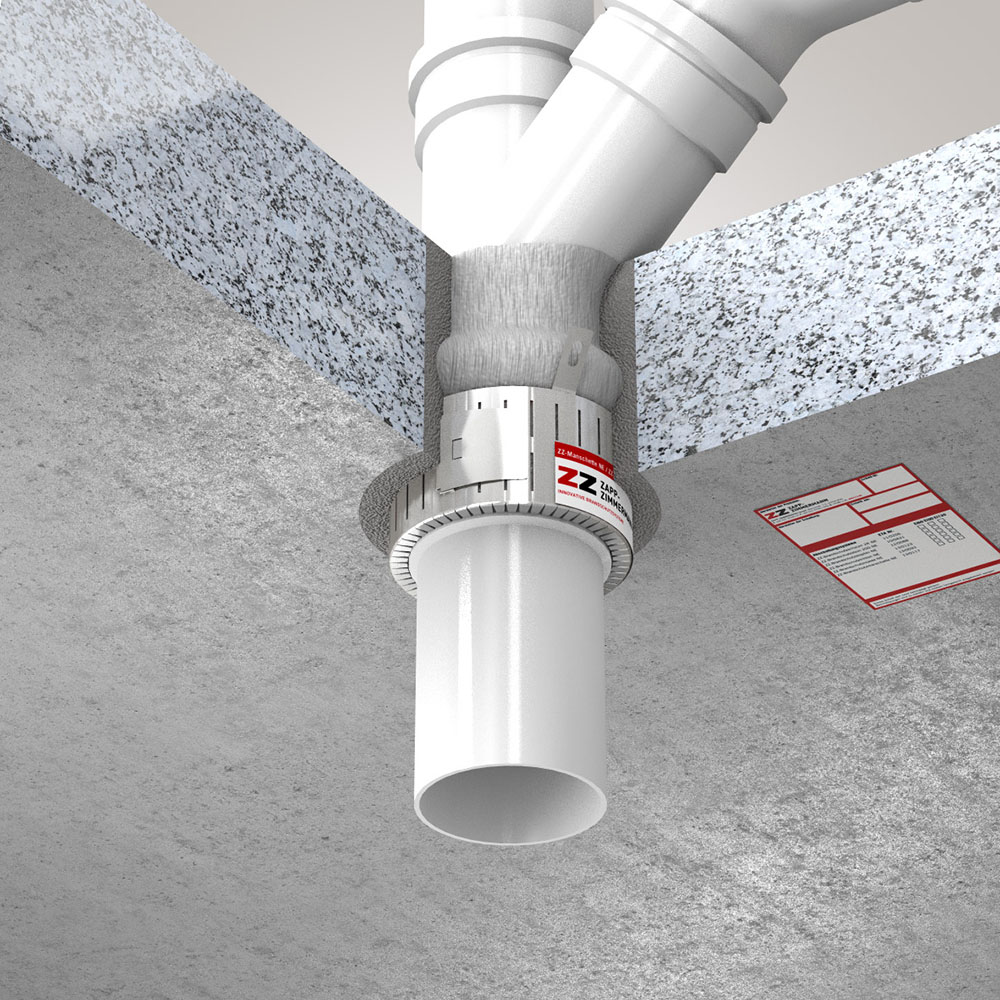

ZZ Brandschutzmanschette NE ES Muffe (Decke)

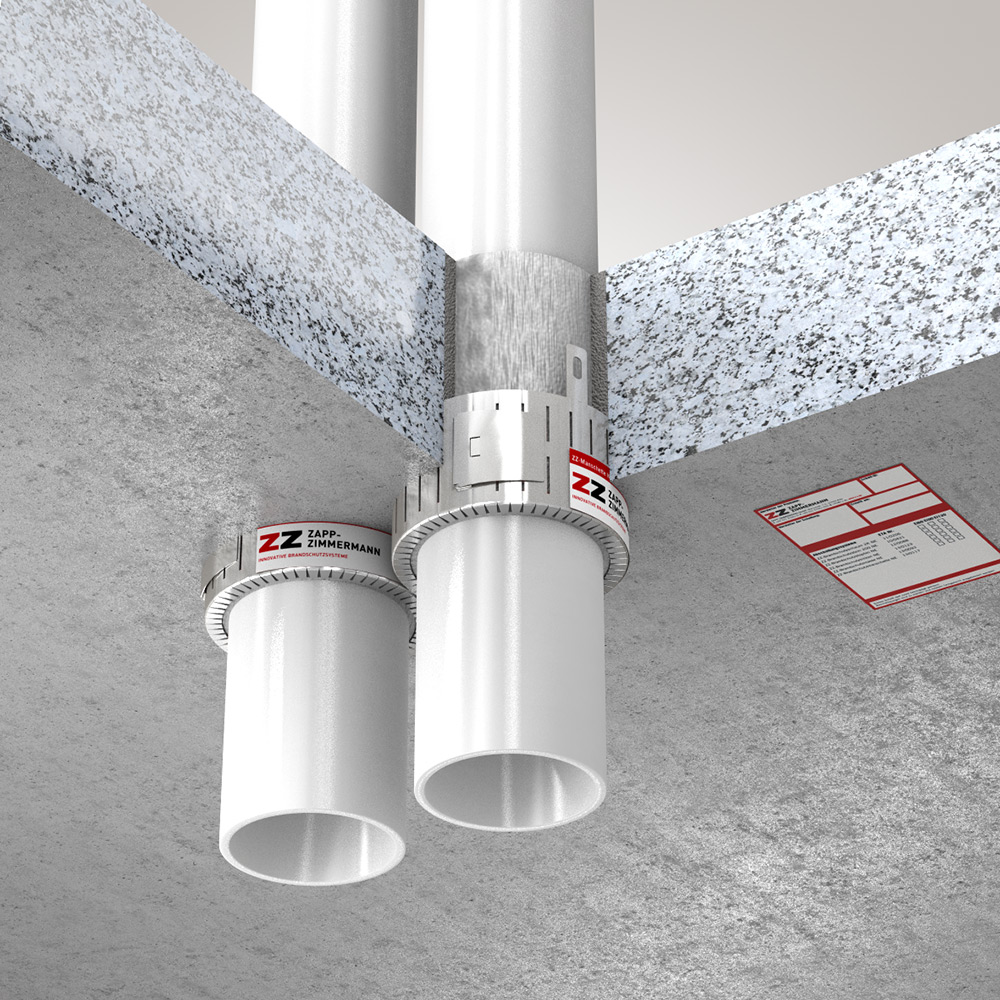

ZZ Brandschutzmanschette NE ES Nullabstand (Decke)

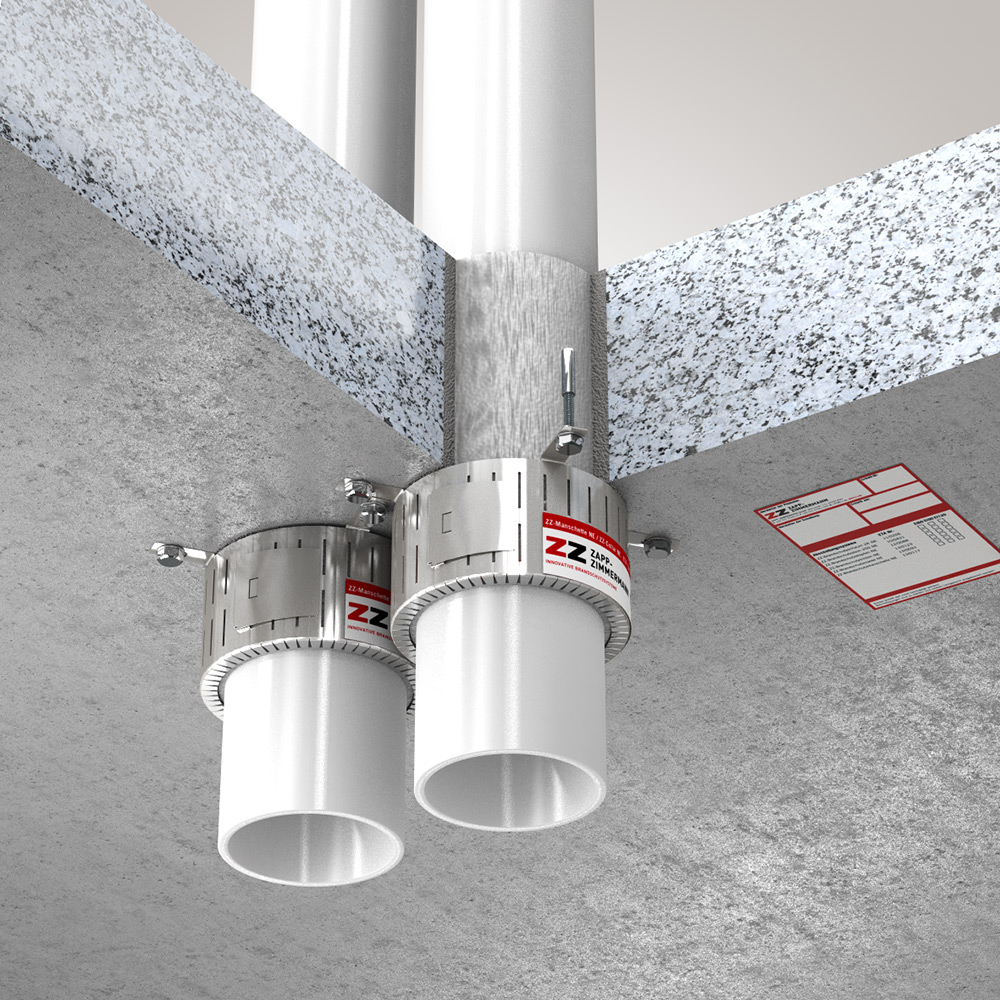

ZZ Brandschutzmanschette NE AS Nullabstand (Decke)
ZZ Brandschutzmanschette NE AS Kunststoffrohr in Massivwand
ZZ Brandschutzmanschette NE ES Kunststoffrohr in Massivwand
ZZ Brandschutzmanschette NE ES (Decke)
ZZ Brandschutzmanschette NE ES Muffe 90° Bogen (Decke)
ZZ Brandschutzmanschette NE ES Muffe (Decke)
ZZ Brandschutzmanschette NE ES Nullabstand (Decke)
ZZ Brandschutzmanschette NE AS Nullabstand (Decke)

ZZ® P40

Pipe penetration seal up to EI 120 for rigid walls, rigid floors and flexible walls.
Through penetration firestop system for combustible pipes.

System information

Test norm EN 1366-3
Approval Number ETA-13/0117
Fire resistance class E, EI
Fire resistance duration [min] 30, 60, 90, 120
Seal type Pipe penetration seal
Seal opening round
approved components flexible wall, rigid wall, rigid floor

System components

DesignationArt.-Nr.VE
ZZ® 430 Fire Protection Collar show variants
DesignationDiameterArt.-Nr.VE
ZZ® 430-32 Fire Protection CollarØ 32B16N01-00011
ZZ® 430-40 Fire Protection CollarØ 40B16N01-00021
ZZ® 430-110 Fire Protection CollarØ 50-110B16N01-00031
ZZ® 430-160 Fire Protection CollarØ 125-160B16N01-00041
Identification Plate ETAB16H00-00511

Detailinformationen

Downloads
  • Technical approval (de)
  • European Technical Assessment
  • Installation Manual
Description

Details

Pipe penetration seal up to EI 120 for rigid walls, rigid floors and flexible walls. Through penetration firestop system for combustible pipes.

Additional Information

Additional Information

Suitable for
ZZ® 430 Fire Protection Collar can be used for surface or as embedded installation.
Surface mounted: Pipe penetration seal of combustible pipes for retroactive installation
  • Through penetration firestop system for flammable pipes up to Ø 160 mm
  • Retroactive installation of the pipe penetration seal on pipes that have already been embedded in concrete
  • The fastening tabs are on the collar sheet metal

Embedded installation: Pipe penetration seal of combustible pipes for direct installation
  • Through penetration firestop system for flammable pipes up to Ø 160 mm
  • Direct installation of the fire protection collar together with the pipes
  • Alternatively the fire protection collar can be fitted onto the component and fastened
Approved penetrating elements
  • Polyvinyl chloride pipes that are free of softeners (PVC-U) in accordance with EN 1329-1, EN 1453-1, EN 1452-1, as well as DIN 8061/8062, and pipes of chlorinated polyvinyl chloride (PVC-C), in accordance with EN 1566-1 up to an outer diameter of 160 mm are permissible.
  • Pipes of polyethylene (PE) in accordance with EN 1519-1, EN 12666-1, EN 12201-2, as well as DIN 8074/8075, pipes of acrylonitrile butadiene styrene (ABS) in accordance with EN 1455-1 and pipes of styrene copolymer blends (SAN + PVC) in accordance with EN 1565-1 up to an outer diameter of 160 mm are permissible.
  • Insulated multi-layer composite pipes permissible with AF/Armaflex, “Uponor Uni Pipe PLUS” up to an outer diameter of 32 mm and “Uponor MLC” up to an outer diameter of 110 mm
  • The detailed permissible pipe dimensions (pipe outside diameter, pipe wall thickness) depend on the selected installation variant. Details, see Fire resistance classifications of the ETA-13/0117
