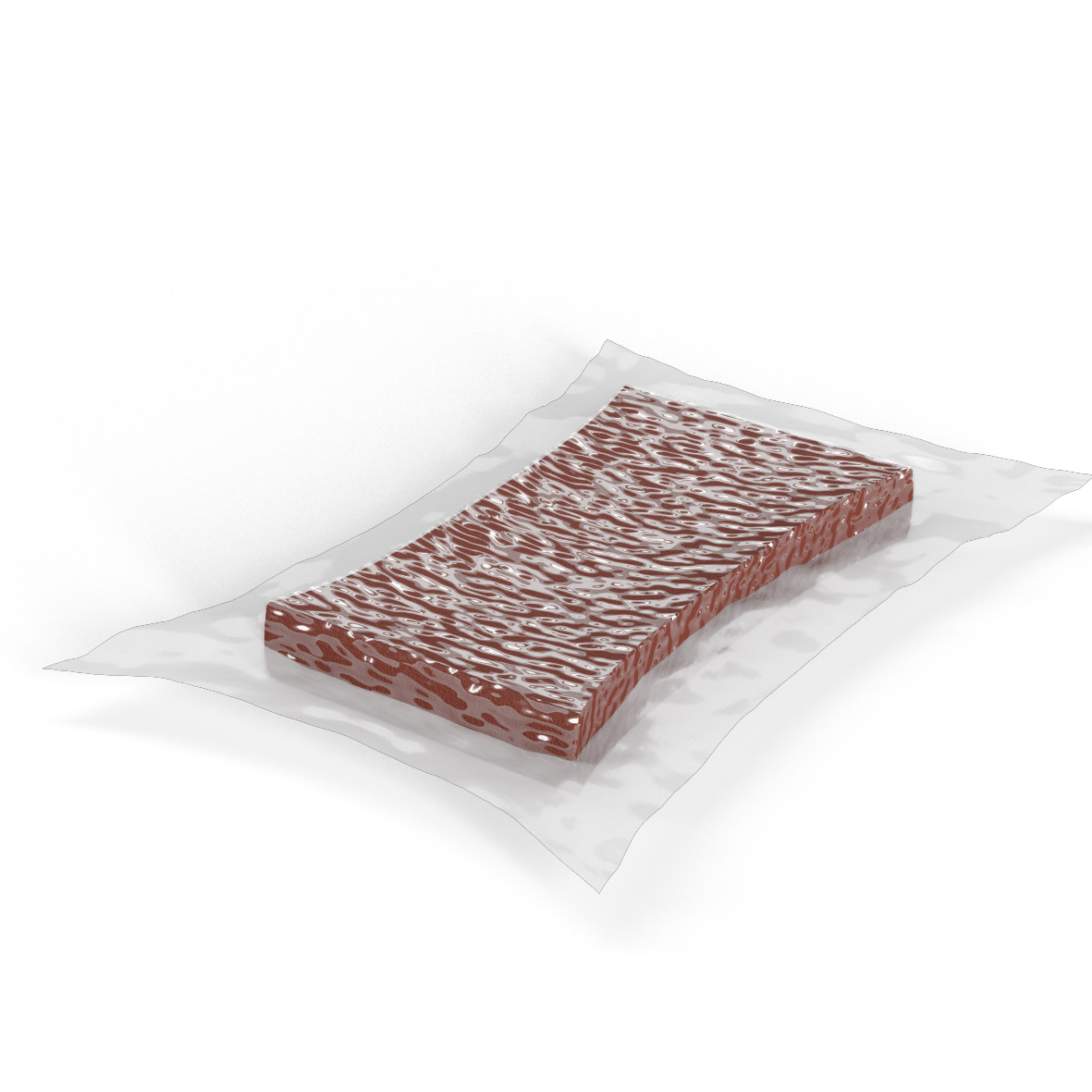

ZZ® 230-144-V Fire Protection Block
For easier sealing of narrow residual openings, the ZZ® 230-144-V Fire Protection Block, vacuum-packed can be used. After opening the foil the ZZ® 230-144-V Fire Protection Block, vacuum-packed expands to standard size. The foil can remain in the bulkhead after expansion.
| Name | ZZ® 230-144-V Fire Protection Block |
| Manufacturer | ZAPP-ZIMMERMANN |
| Designation | length [mm] | Art. no. | PU |
|---|---|---|---|
| ZZ® 230-144-V Fire Protection Block | 200 | B01V02-0003 B01V07-0001 | 2 7 |
Detailed information
Downloads
Description
- Trade name:ZZ® 230-V Fire Protection Block; ZZ-Fire Protection Block 200 NE
- Description:Square moulded part consisting of intumescent polyurethane foam with halogen-free fire safety additives.
- Implementation areas:Mixed penetration seal for rigid walls, rigid floors and flexible walls. Through penetration firestop system for electrical cables, telecommunication cables and optical fibre cables, electrical installation conduits, as well as flammable and non-flammable pipes.
- Approvals / certificates:
- European Technical Approval ETA-10/0431, OIB
- European Technical Approval ETA-11/0206, OIB
- EC Certificate of Conformity 0761-CPD-0208
- EC Certificate of Conformity 0761-CPD-0187
Additional Information
| Product Information | 200 x 144 x 60 [mm] |
|---|---|
| Storage temperature | 5 °C – 30 °C |
