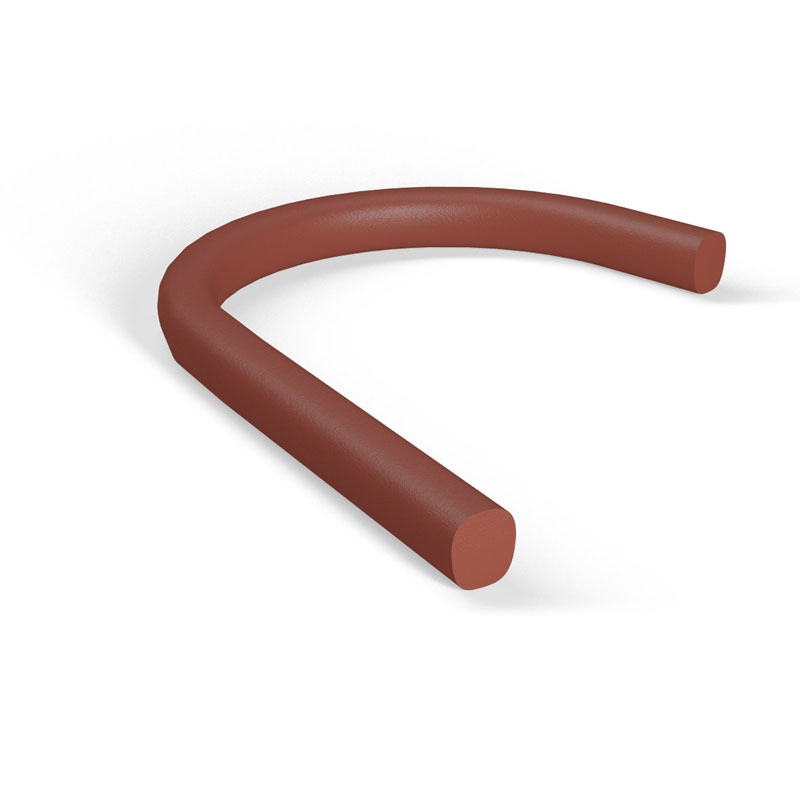

ZZ® 530 Fire Protection Joint Seal
ZZ® 530 Fire Protection Joint Seal is a compressible joint tape based on polyurethane with halogen-free fire protection additives that intumesces in the event of a fire. It is used in the ZZ® G50 system.

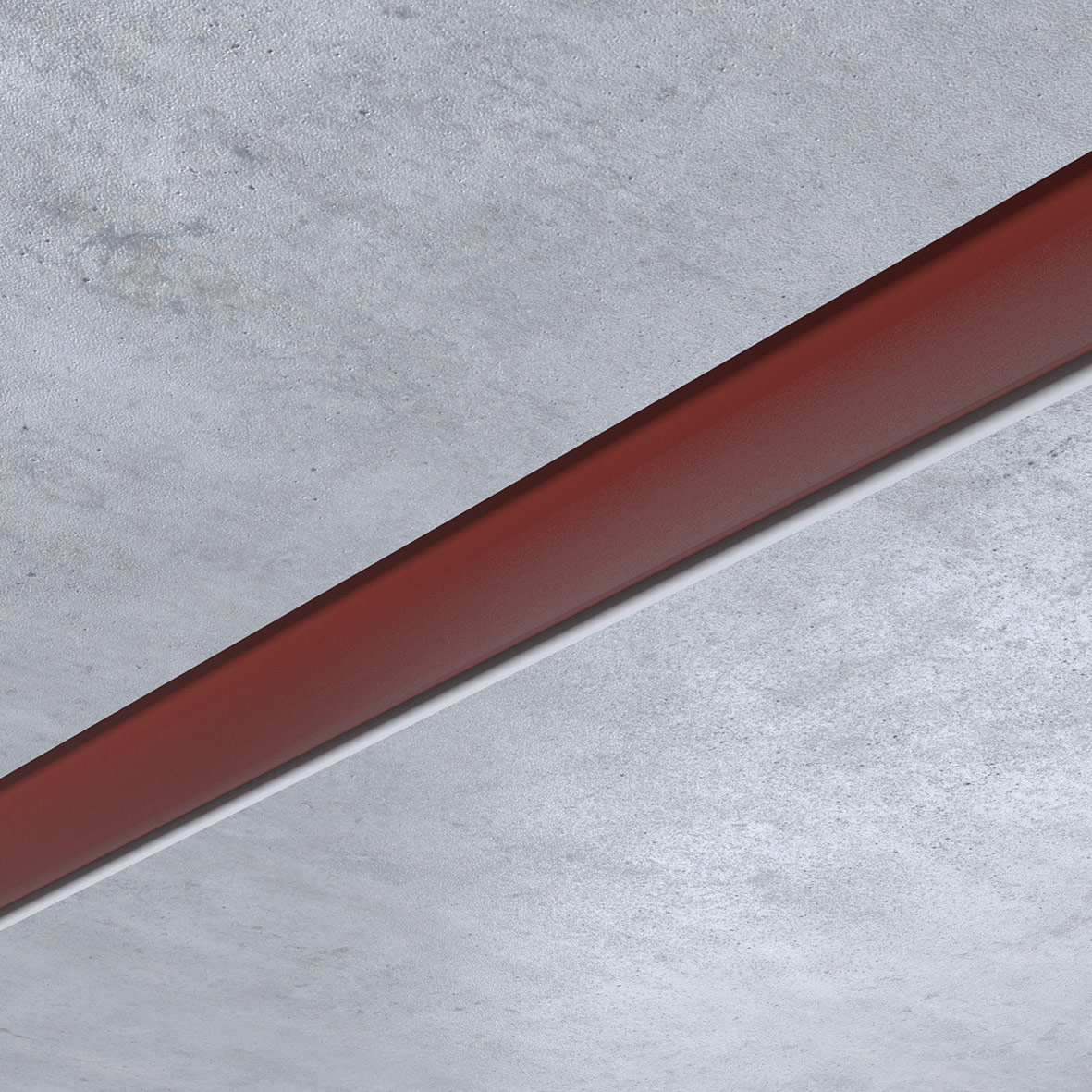

According to ETA, it can also be used in supply and operating rooms in tunnels.
| Name | ZZ® 530 Fire Protection Joint Seal |
| Manufacturer | ZAPP-ZIMMERMANN |
| Designation | Diameter [mm] | max joint width* [mm] | Art. no. | PU |
|---|---|---|---|---|
| ZZ® 530-16 Fire Protection Joint Seal | Ø 16 | 13 | B08V20-0001 | 20 |
| ZZ® 530-24 Fire Protection Joint Seal | Ø 24 | 21 | B08V20-0002 | 20 |
| ZZ® 530-30 Fire Protection Joint Seal | Ø 30 | 27 | B08V20-0003 | 20 |
| ZZ® 530-39 Fire Protection Joint Seal | Ø 39 | 35 | B08V20-0004 | 20 |
| ZZ® 530-49 Fire Protection Joint Seal | Ø 49 | 45 | B08V10-0001 | 10 |
| ZZ® 530-60 Fire Protection Joint Seal | Ø 60 | 55 | B08V08-0001 | 8 |
| ZZ® 530-70 Fire Protection Joint Seal | Ø 70 | 65 | B08V06-0001 | 6 |
| ZZ® 530-80 Fire Protection Joint Seal | Ø 80 | 75 | B08V04-0001 | 4 |
Detailed information
Downloads
Description
Trade name: ZZ® 530 Fire Protection Joint Seal
Description: The ZZ® 530 Fire Protection Joint Seal is simply pushed into the joint from both sides with the prescribed excess dimensions. Through its elastic structure it can compensate elongation movements up to 25 %. Bonding with the structural component is not necessary for installation of the ZZ® 530 Fire Protection Joint Seal. Alternatively, as closure, in addition a sealant can be applied (e.g. silicone OTTOSEAL S 115 or acrylic OTTOSEAL A 207).
Additional Information
| Product Information | length 1000 mm |
|---|---|
| Notes | * including the permissible movement (25%) |
