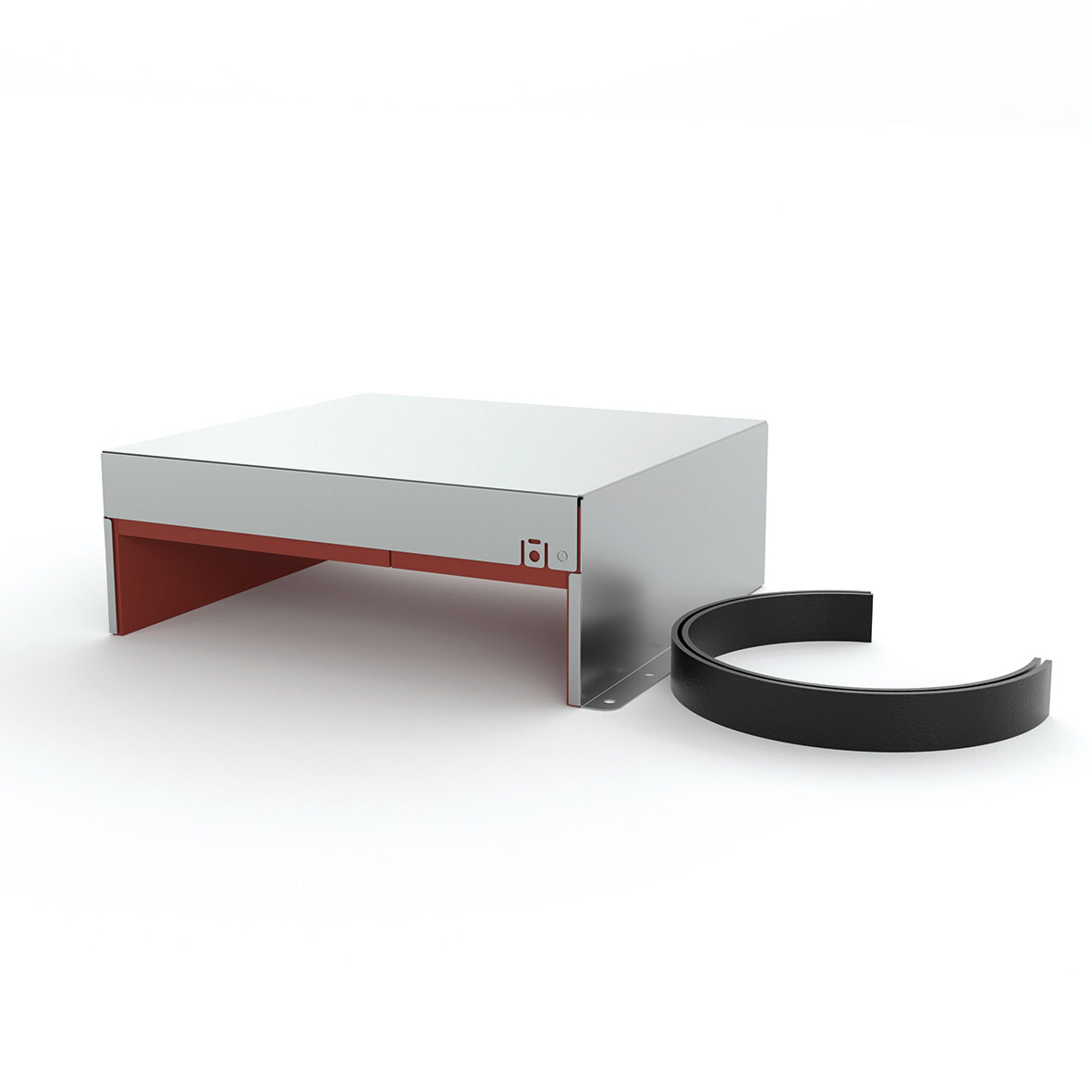

ZZ® 630 Fire Protection Box - 3 sided, 110 mm
The ZZ® 630 Fire Protection Box consists of a stainless steel sheet housing with factory-lined fire protection inserts. The modular dimensions are matched to the common dimensions of cable support systems.
| Name | ZZ® 630 Fire Protection Box - 3 sided, 110 mm |
| Manufacturer | ZAPP-ZIMMERMANN |
| Designation | width [mm] | Art. no. | PU |
|---|---|---|---|
| ZZ® 630-100-4 Fire Protection Box | 100 | B16B01-0019 | |
| ZZ® 630-200-4 Fire Protection Box | 200 | B16B01-0020 | |
| ZZ® 630-300-4 Fire Protection Box | 300 | B16B01-0021 | |
| ZZ® 630-400-4 Fire Protection Box | 400 | B16B01-0022 | |
| ZZ® 630-500-4 Fire Protection Box | 500 | B16B01-0023 | |
| ZZ® 630-600-4 Fire Protection Box | 600 | B16B01-0024 |
Detailed information
Downloads
Description
- Description:
The ZZ® 630 Fire Protection Box consists of a stainless steel sheet housing with factory-lined fire protection inserts. The modular dimensions are matched to the common dimensions of cable support systems.
- Application areas: Mixed penetration seal or cable penetration seal up to EI 90 /E 120 for rigid walls, rigid floors and flexible walls. Through penetration firestop system for electrical cables, telecommunication cables and optical fibre cables, conduits, as well as specific pipes and conduits.
Additional Information
| Product Information | The ZZ® 630 fire protection box is supplied including the required length of ZZ® 452-30 fire protection tape, for installation on building site. |
|---|
