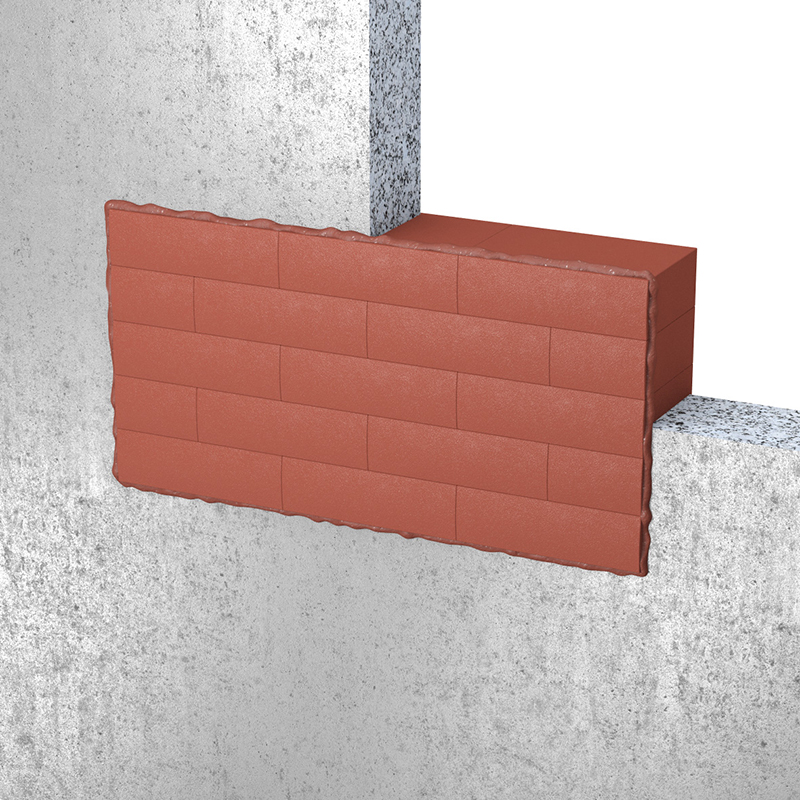

System No. C-AJ-0150 Blank opening in solid wall or floor


  • F-Rating: 2 h; T-Rating: 2 h

  • Maximum opening size: 384 in.² with a max. dimension of 32 in.

  • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks

  • Fire Protection Sealant ZZ® 365 or Fire Protection Foam ZZ 360 to be filled between ZZ® 260 and periphery of opening

System information

Test norm UL 1479
Approval Number C-AJ-0150
Seal type Blank Opening

System components

DesignationArt.-Nr.VE
ZZ® 260-8 Fire Protection BlockB01V12-000112
ZZ® 260-40 Fire Protection BlockB06N00-00184
ZZ® 365 Fire Protection SealantB15V12-00011

Detailinformationen

Downloads
  • Listing System No. C-­AJ-­0150
Description

Details

  • F-Rating: 2 h; T-Rating: 2 h
  • Maximum opening size: 384 in.² with a max. dimension of 32 in.
  • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
  • Fire Protection Sealant ZZ® 365 or Fire Protection Foam ZZ 360 to be filled between ZZ® 260 and periphery of opening
Additional Information

Additional Information

Accessories

  1. Messer mit Wellenschliffblatt, schmal

    Knife with serrated blade, narrow

  2. Messer mit Wellenschliffblatt, breit

    Knife with serrated blade, wide

  3. Kartuschenpistole HandyMax 380 ml (5:1)

    Cartridge Gun HandyMax 2k

  4. Schalungsband

    Duct Tape
