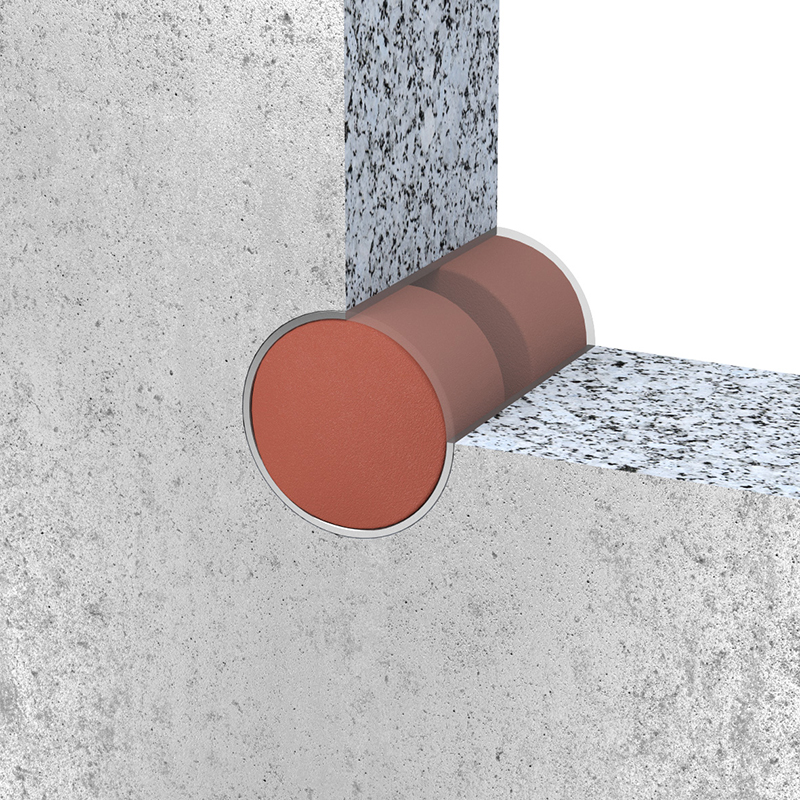

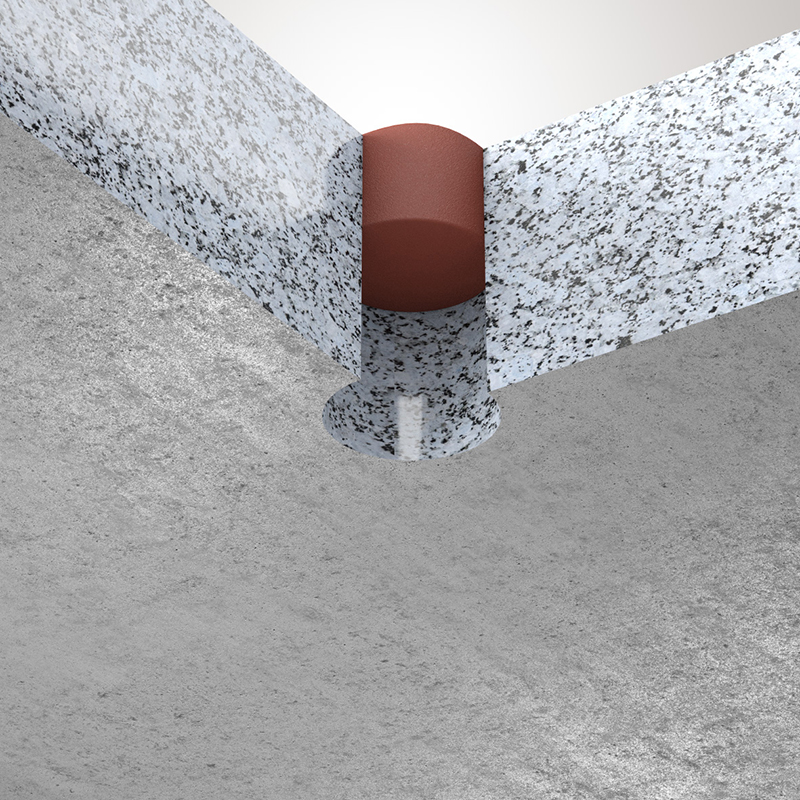

System No. C-AJ-0151 Blank opening in solid wall or floor


  • F-Rating: 2 h; T-Rating: 2 h

  • Maximum opening size: 5 in. diameter

  • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks

  • Optional: Steel sleeve grouted into floor or wall

System information

Test norm UL 1479
Approval Number C-AJ-0151
Seal type Blank Opening

System components

DesignationArt.-Nr.VE
Fire Protection Plug ZZ 160 show variants
DesignationDurchmesserArt.-Nr.VE
ZZ® 160-2.5 Fire Protection Plug Ø 2.5 inchB02N00-00774
ZZ® 160-3 Fire Protection Plug Ø 3 inchB02N00-00784
ZZ® 160-4 Fire Protection Plug Ø 4 inchB02N00-00754
ZZ® 160-4.5 Fire Protection PlugØ 4.5 inchB02N00-00794
ZZ® 160-5 Fire Protection Plug Ø 5 inchB02N00-00804
ZZ® 365 Fire Protection SealantB15V12-00011

Detailinformationen

Downloads
  • Listing System No. C-­AJ-­0151
Description

Details

  • F-Rating: 2 h; T-Rating: 2 h
  • Maximum opening size: 5 in. diameter
  • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
  • Optional: Steel sleeve grouted into floor or wall
Additional Information

Additional Information

Accessories

  1. Messer mit Wellenschliffblatt, breit

    Knife with serrated blade, wide

  2. Kartuschenpistole HandyMax 380 ml (5:1)

    Cartridge Gun HandyMax 2k

  3. Schalungsband

    Duct Tape

  4. Messer mit Wellenschliffblatt, schmal

    Knife with serrated blade, narrow
