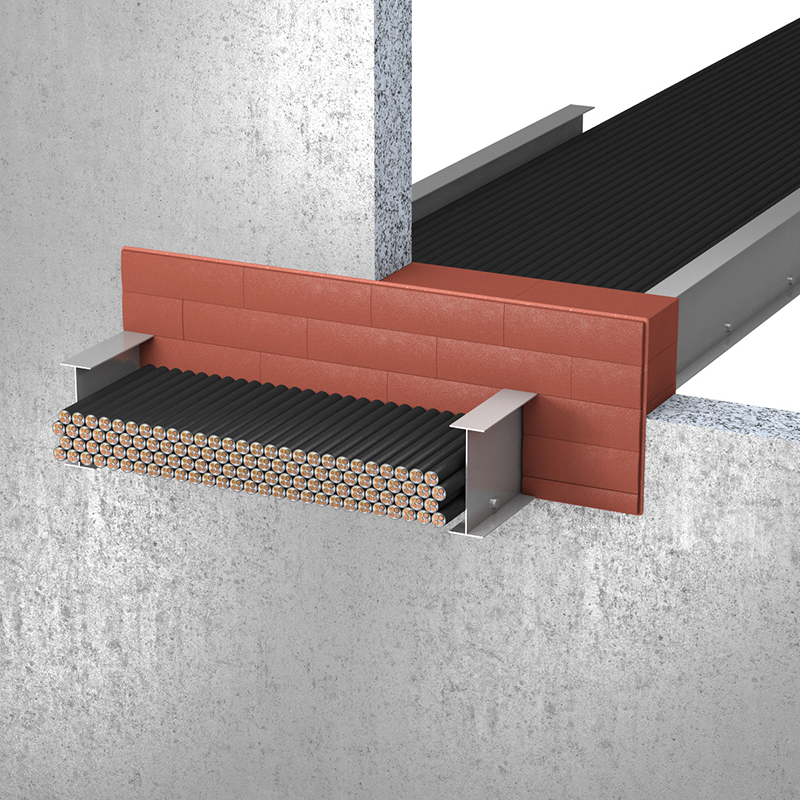

System No. C-AJ-4105 Cable tray with cables in solid wall or floor

  • Up to 6 in. by 24 in. steel or aluminum cable tray with max. 45% cable fill
  • F-Rating: 2 h; T-Rating: 0 h
  • Max. opening size: 384 in.² with a max. dimension of 32 in.
  • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
  • Annular space: point contact to max. 8 in.
  • ZZ® 365 Fire Protection Sealant to be filled between cables, in voids between cables and ZZ® 260 Fire Protection Block and between periphery of opening and ZZ® 260 Fire Protection Block
Test norm UL 1479
Approval Number C-AJ-4105
Seal type Mixed penetration seal

System components

DesignationArt. no.PU
ZZ® 365 Fire Protection SealantB15V12-00011

Detailed information

Downloads
  • Listing System No. C­-AJ­-4105
Description

  • Up to 6 in. by 24 in. steel or aluminum cable tray with max. 45% cable fill
  • F-Rating: 2 h; T-Rating: 0 h
  • Max. opening size: 384 in.² with a max. dimension of 32 in.
  • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
  • Annular space: point contact to max. 8 in.
  • ZZ® 365 Fire Protection Sealant to be filled between cables, in voids between cables and ZZ® 260 Fire Protection Block and between periphery of opening and ZZ® 260 Fire Protection Block

Accessories

  1. Messer mit Wellenschliffblatt, breit

    Knife with serrated blade, wide

  2. Kartuschenpistole HandyMax 380 ml (5:1)

    Cartridge Gun HandyMax 2k

  3. Schalungsband

    Duct Tape

  4. Messer mit Wellenschliffblatt, schmal

    Knife with serrated blade, narrow
