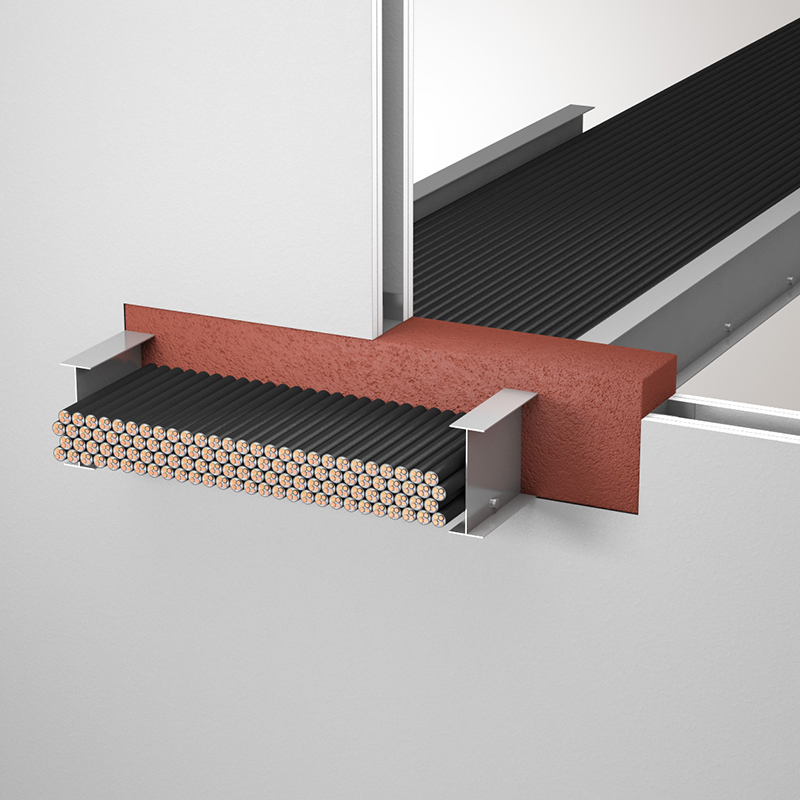

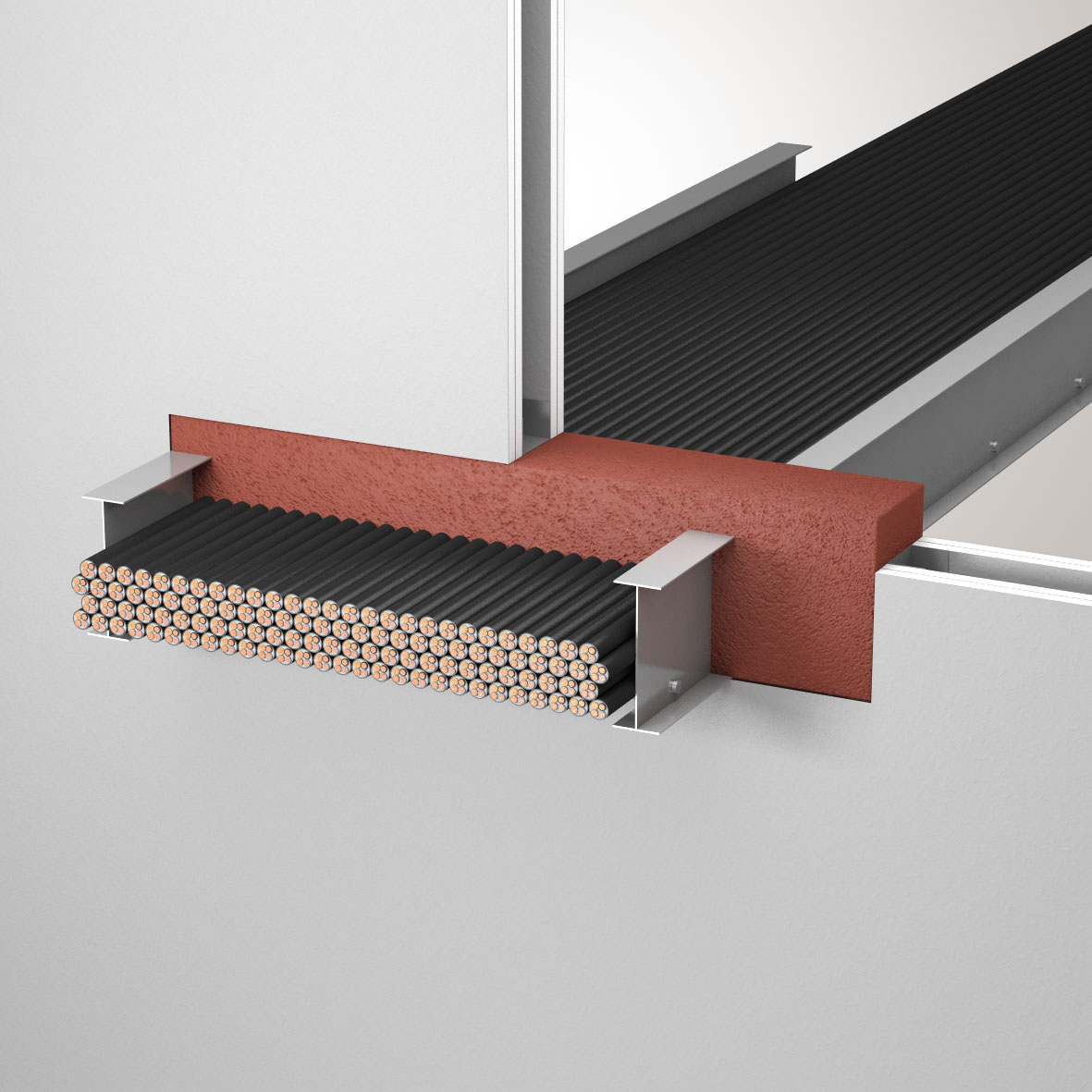

ZZ® System No. W-L-4085 Cable tray with cables in drywall


  • Up to 6 in. by 24 in. steel or aluminum cable tray with max. 45% cable fill

  • F-Rating: 2 h; T-Rating: 1 h

  • Fire rated gypsum board/ steel stud wall according to U400, V400 or W400 Series with minimum 2-1/2 in. wide studs



  • Fire Protection Foam ZZ® 360 only

  • Maximum opening size: 224 in.² with a max. dimension of 32 in.

  • Annular space: point contact to max. 3-1/2 in. (vertical) and 8 in. (horizontal)

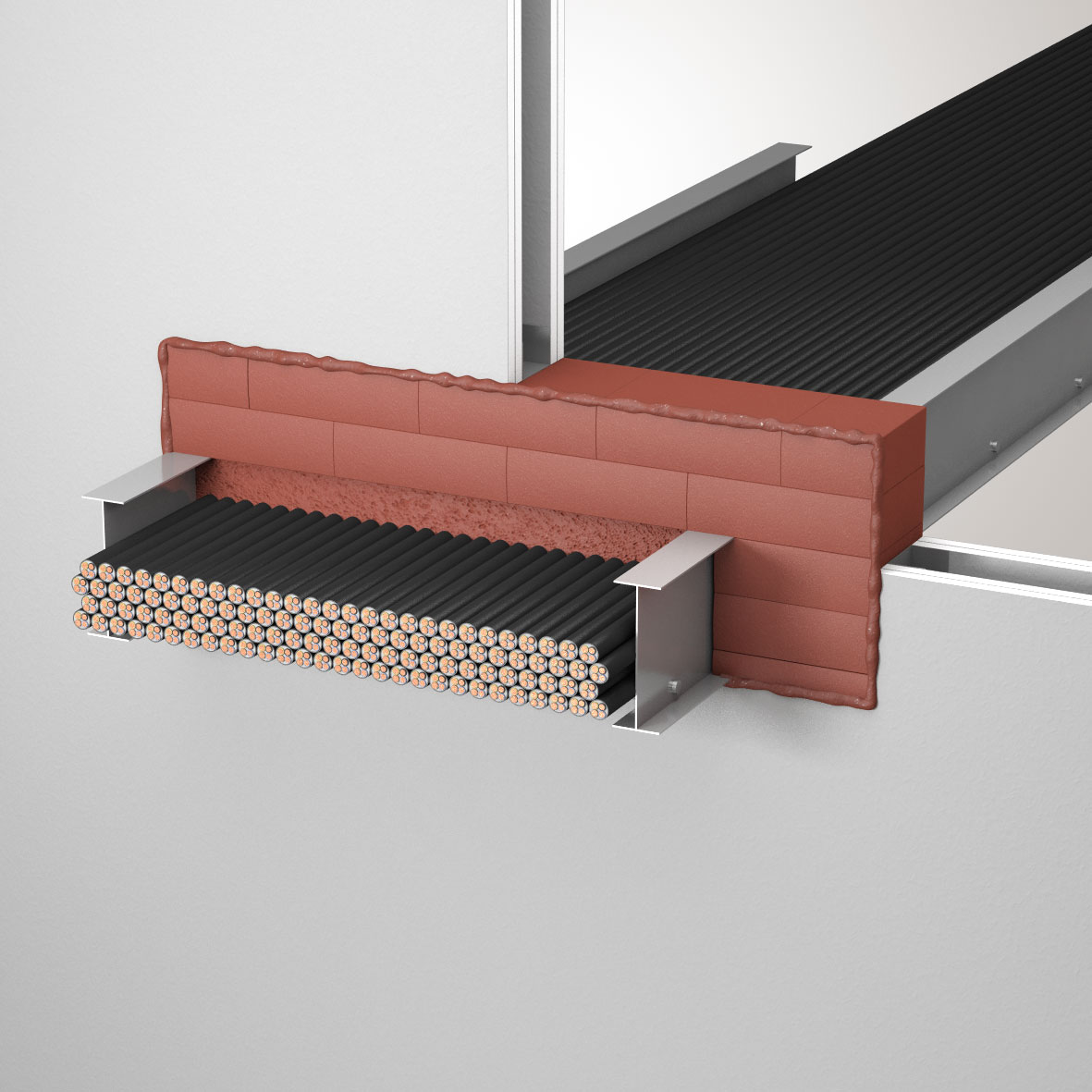

  • In combination with Fire Protection Block ZZ® 260

  • Maximum opening size: 384 in.² with a max. dimension of 32 in.

  • Annular space: point contact to max. 3-1/2 in. (vertical) and 8 in. (horizontal) to periphery of opening or foam/block interface, rest of the opening has to be sealed with Fire Protection Block ZZ® 260

System information

Test norm UL 1479
Approval Number W-L-4085
Seal type Cable penetration seal

System components

DesignationArt.-Nr.VE
ZZ® 260-8 Fire Protection BlockB01V12-000112
ZZ® 260-40 Fire Protection BlockB06N00-00184

Detailinformationen

Downloads
  • Listing System No. W­-L-­4085
Description

Details

  • Up to 6 in. by 24 in. steel or aluminum cable tray with max. 45% cable fill
  • F-Rating: 2 h; T-Rating: 1 h
  • Fire rated gypsum board/ steel stud wall according to U400, V400 or W400 Series with minimum 2-1/2 in. wide studs
  • Fire Protection Foam ZZ® 360 only
  • Maximum opening size: 224 in.² with a max. dimension of 32 in.
  • Annular space: point contact to max. 3-1/2 in. (vertical) and 8 in. (horizontal)
  • In combination with Fire Protection Block ZZ® 260
  • Maximum opening size: 384 in.² with a max. dimension of 32 in.
  • Annular space: point contact to max. 3-1/2 in. (vertical) and 8 in. (horizontal) to periphery of opening or foam/block interface, rest of the opening has to be sealed with Fire Protection Block ZZ® 260
Additional Information

Additional Information

Accessories

  1. Schalungsband

    Duct Tape

  2. Messer mit Wellenschliffblatt, schmal

    Knife with serrated blade, narrow

  3. Messer mit Wellenschliffblatt, breit

    Knife with serrated blade, wide

  4. Kartuschenpistole HandyMax 380 ml (5:1)

    Cartridge Gun HandyMax 2k
