  1. Innovative Fire Safety Systems
  2. Firestop Systems: UL
  3. Penetration Seals
  4. Mixed Penetration Seals
Filter By
Filter By

Filter

Approved installations

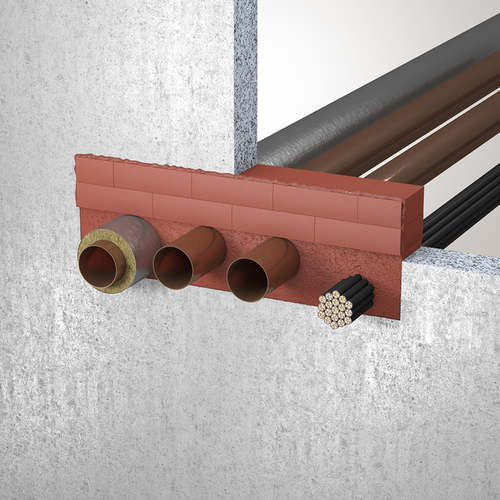

  1. System No. C-AJ-8233 Mixed penetration seal in solid wall or floor

    C-AJ-8233
    • Cable bundle up to 4 in. diameter, metal pipes up to 4 in. diameter optionally glass fiber insulated
    • F-Rating: 2 h; T-Rating: 1/4 h, 1-1/4 h and 1-3/4 h
    • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks

    View Detail

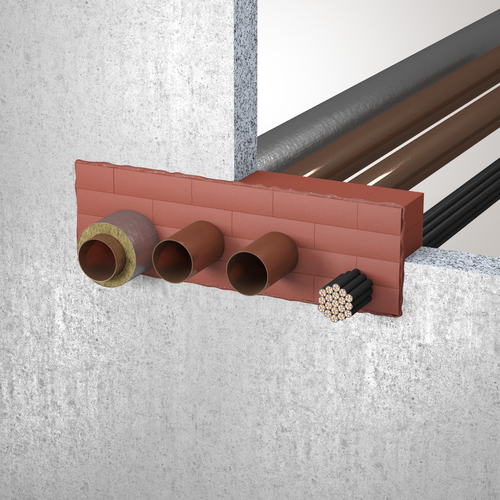

  2. System No. C-AJ-8234 Mixed penetration seal in solid wall or floor

    C-AJ-8234
    • Cable bundle up to 4 in. diameter, metal pipes up to 4 in. diameter optionally glass fiber insulated
    • 2 h and 2 h
    • Max. opening size: 384 in.² with a max. dimension of 32 in.
    • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
    • Annular space: point contact to max. 7-7/8 in.
    • ZZ® 365 Fire Protection Sealant to be filled between cables, in voids between cables/pipes and ZZ® 260 Fire Protection Block and between periphery of opening and ZZ® 260 Fire Protection Block

    View Detail

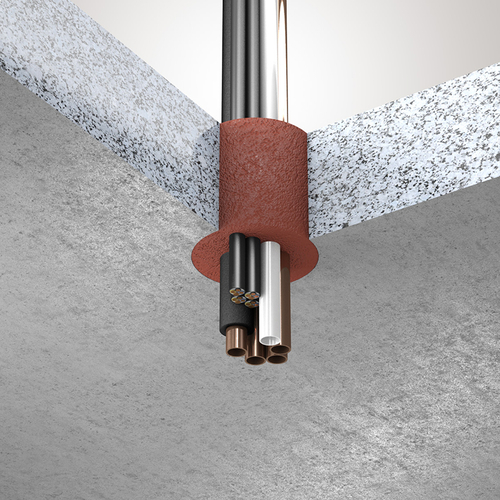

  3. System No. C-AJ-8235 Mixed penetration seal (AC lineset) in solid wall or floor

    C-AJ-8235
    • Up to four metallic pipes optionally AB/PVC insulated and one PVC/CPVC pipe each up to 1 in. diameter, four cables
    • 4 h and 2 h
    • Maximum diameter of opening is 6 in.
    • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
    • Annular space: point contact to max. 2 in

    View Detail
