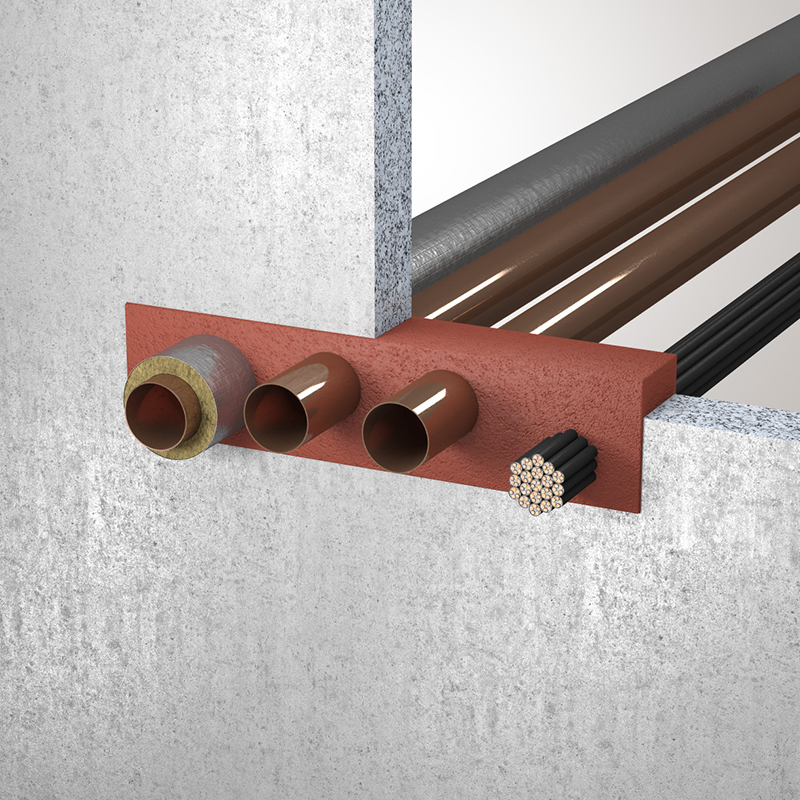

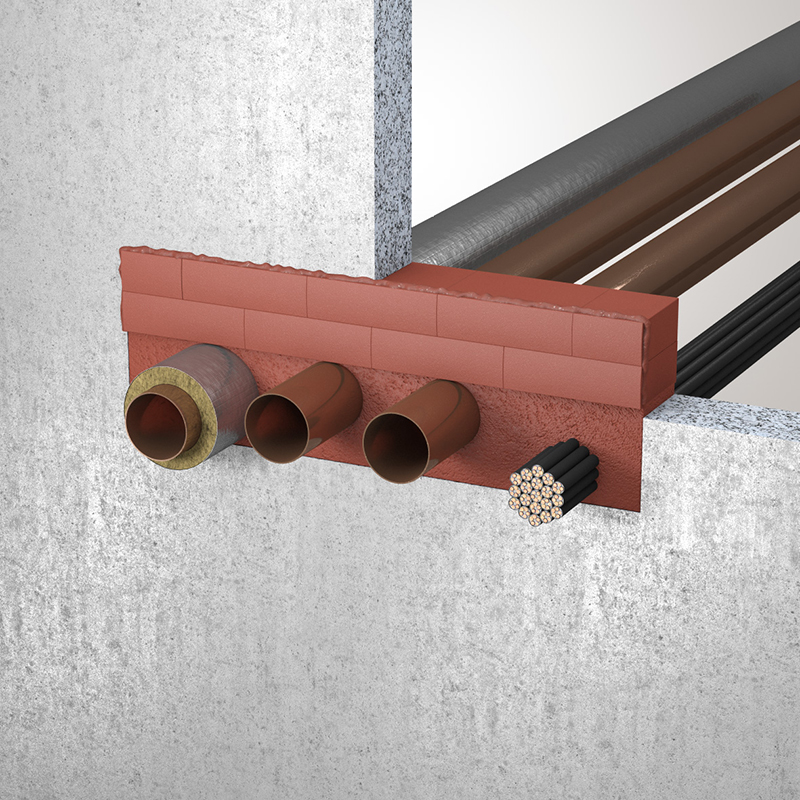

System No. C-AJ-8233 Mixed penetration seal in solid wall or floor

  • Cable bundle up to 4 in. diameter, metal pipes up to 4 in. diameter optionally glass fiber insulated
  • F-Rating: 2 h; T-Rating: ¼ h, 1 ¼ h and 1 ¾ h
  • Floor or wall of min. 4 ½ in. thick reinforced concrete or any UL Classified Concrete Blocks
Test norm UL 1479
Approval Number C-AJ-8233
Seal type Mixed penetration seal

System components

DesignationArt. no.PU
ZZ® 260 Fire Protection Block show variants
DesignationAbmessungenArt. no.PU
ZZ® 260-8 Fire Protection Block8 x 32 x 12 [in]B01V12-000112
ZZ® 260-40 Fire Protection Block40 x 32 x 12 [in]B06N00-00184
ZZ® 360 Fire Protection Foam, 6 pc.-set show variants
Designation Art. no.PU
ZZ® 360 Fire Protection Foam, 6 pc.-setB15N01-01341

Detailed information

Downloads
Download all
Description

  • Cable bundle up to 4 in. diameter, metal pipes up to 4 in. diameter optionally glass fiber insulated
  • F-Rating: 2 h; T-Rating: ¼ h, 1 ¼ h and 1 ¾ h
  • Floor or wall of min. 4 ½ in. thick reinforced concrete or any UL Classified Concrete Blocks

Accessories
