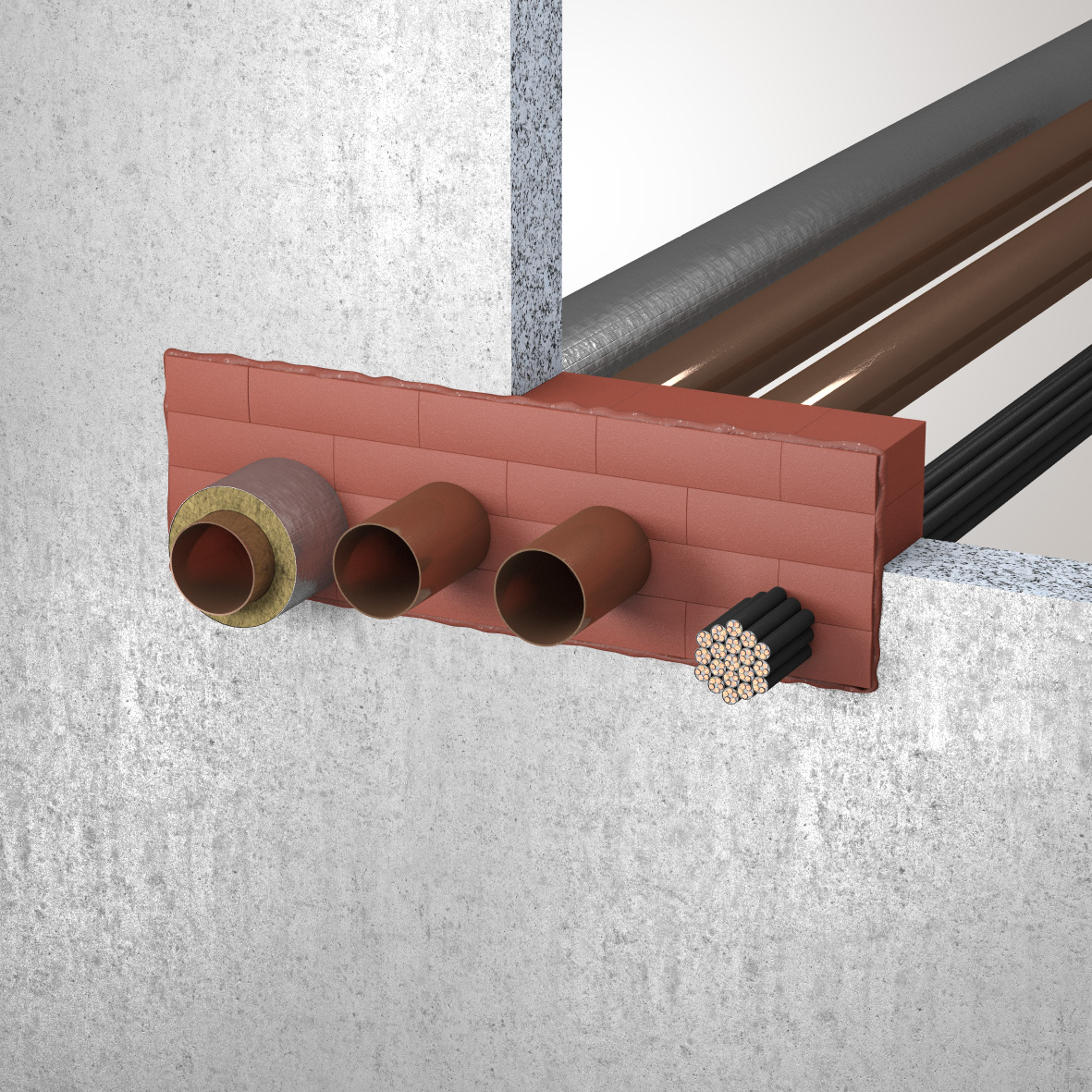

ZZ® System No. C-AJ-8234 Mixed penetration seal in solid wall or floor


  • Cable bundle up to 4 in. diameter, metal pipes up to 4 in. diameter optionally glass fiber insulated

  • F-Rating: 2 h; T-Rating: 1/4 h, 1-1/2 h and 2 h

  • Max. opening size: 384 in.² with a max. dimension of 32 in.

  • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks

  • Annular space: point contact to max. 7-7/8 in.

  • Fire Protection Sealant ZZ 365 to be filled between cables, in voids between cables/ pipes and ZZ 260 and between periphery of opening and ZZ 260

System information

Test norm UL 1479
Approval Number C-AJ-8234
Seal type Mixed penetration seal

System components

DesignationArt.-Nr.VE
ZZ® 365 Fire Protection SealantB15V12-00011
ZZ® 260-40 Fire Protection BlockB06N00-00184

Detailinformationen

Downloads
  • Listing System No. C-­AJ-­8234
Description

Details

  • Cable bundle up to 4 in. diameter, metal pipes up to 4 in. diameter optionally glass fiber insulated
  • 2 h and 2 h
  • Max. opening size: 384 in.² with a max. dimension of 32 in.
  • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
  • Annular space: point contact to max. 7-7/8 in.
  • Fire Protection Sealant ZZ 365 to be filled between cables, in voids between cables/ pipes and ZZ 260 and between periphery of opening and ZZ 260
Additional Information

Additional Information

Accessories

  1. Schalungsband

    Duct Tape

  2. Messer mit Wellenschliffblatt, schmal

    Knife with serrated blade, narrow

  3. Messer mit Wellenschliffblatt, breit

    Knife with serrated blade, wide

  4. Kartuschenpistole HandyMax 380 ml (5:1)

    Cartridge Gun HandyMax 2k
