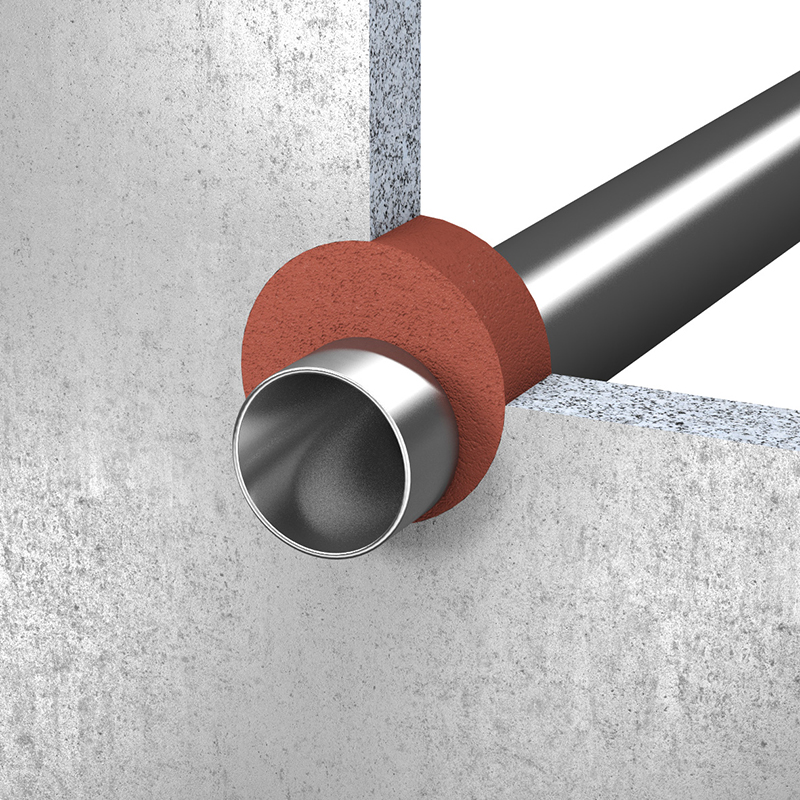

System No. C-AJ-1641 Metallic pipe in solid wall or floor
- Copper pipes up to 4 in. diameter and steel pipes, iron pipes or steel conduits up to 8 in. diameter
- F-Rating: 2 h; T-Rating: ¼ h
- Maximum diameter of opening is 12 in.
- Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
- Annular space: Point contact to max. 4 in.
- Optional: Steel sleeve grouted into floor or wall
System information
| Test norm | UL 1479 |
| Approval Number | C-AJ-1641 |
| Seal type | Pipe penetration seal |
System components
| Designation | Art.-Nr. | VE |
|---|---|---|
| ZZ® 365 Fire Protection Sealant | B15V12-0001 | 1 |
Detailinformationen
- Downloads
- Description
Details
- Copper pipes up to 4 in. diameter and steel pipes, iron pipes or steel conduits up to 8 in. diameter
- F-Rating: 2 h; T-Rating: ¼ h
- Maximum diameter of opening is 12 in.
- Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
- Annular space: Point contact to max. 4 in.
- Optional: Steel sleeve grouted into floor or wall
