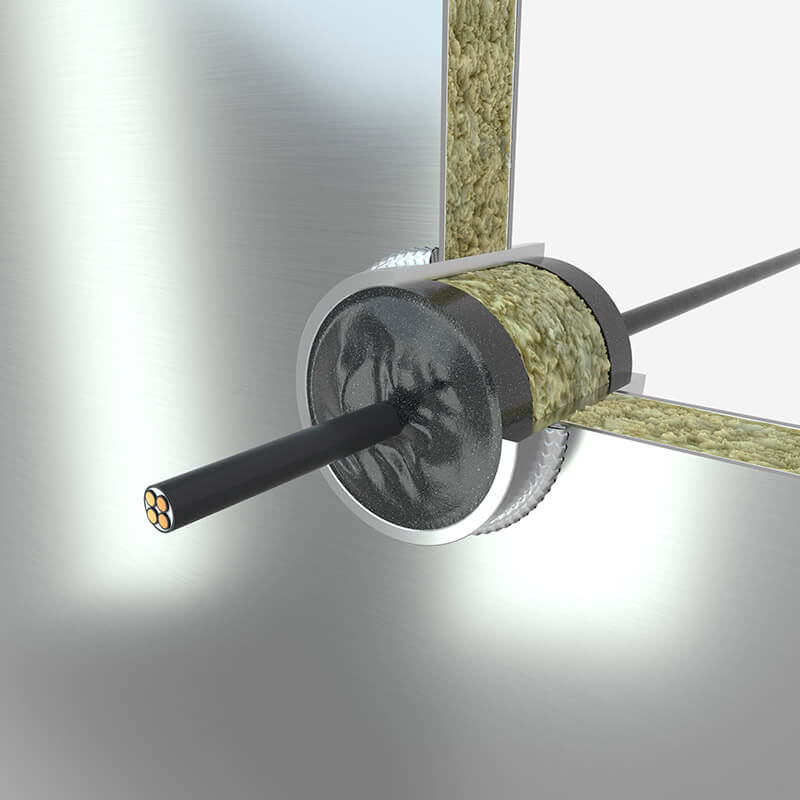

1. Fire protection seal for cable and pipe penetrations

    Fire protection seal between passenger areas


    Benefits
    • fast sealing of small or irregular openings with few penetrations
    • easy installation and shaping by hand without tools or additional components, similar to modeling material
    • especially suited for frequently changing configuration due to permanent flexibility

    View Detail

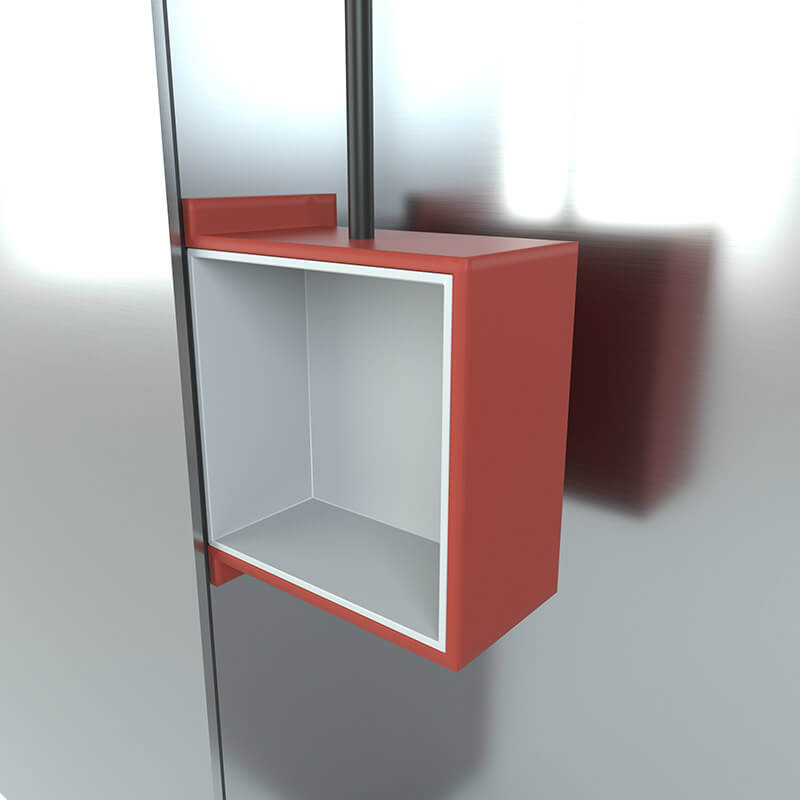

  2. Fire resistance upgrade for installations and surfaces

    Fire penetration seal for cable penetrations and electrical sockets, enables retrofitting of fire protection and sound decoupling of existing housings and sockets that are not protected.


    Benefits
    • fast and easy upgrading of small electrical boxes and sockets with few penetrations
    • fast and uncomplicated lining of boxes or switch cabinets
    • retrofitting of sockets / switch boxes without fire resistance

    View Detail

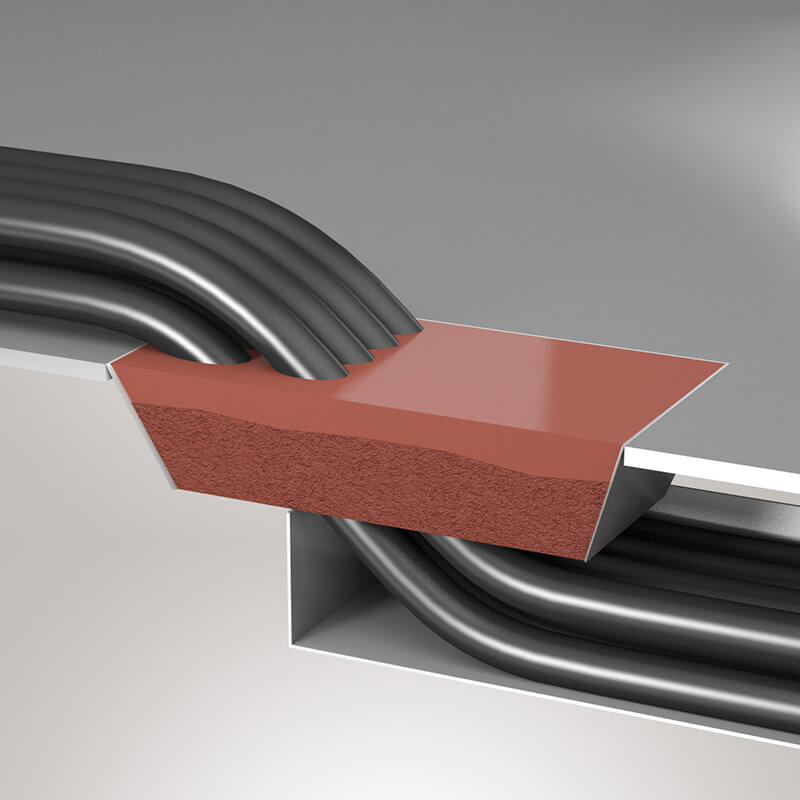

  3. Fire protection seals in penetrations through the vehicle floor

    Fire protection seals up to EI 30


    Benefits
    • filling fire protection seals in the vehicle floor or ceiling
    • fast progress due to short curing times
    • penetration seals in areas with requirements for waterproof and pressure-tight

    View Detail

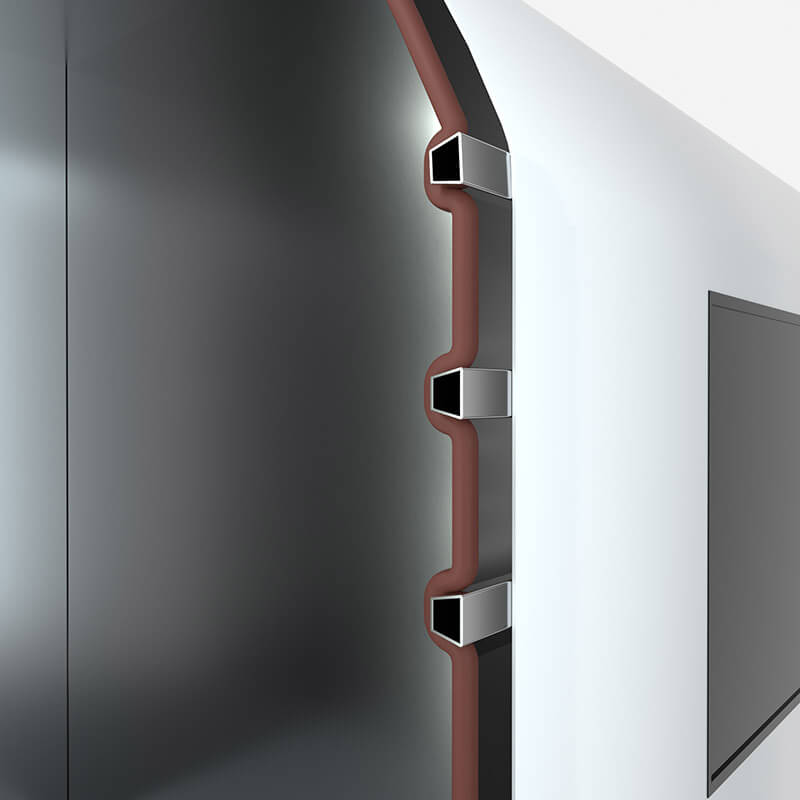

  4. ZZ® slotted sealings strips for door, wall and ceiling seals

    Elastic fire protection joint seal for flue gas-tight joints of third-party rail vehicle modules or for separating the rail vehicle from the outer shell.


    Benefits
    • flue gas-tight connecting joints between rail vehicle modules / separation of vehicles from the outer skin
    • compensation of dimensional tolerances in third-party rail vehicle modules in the coach body
    • easy push-on mounting on sheet metal edges due to longitudinally slotted sealing profiles
    • sealing of abutting wall/ceiling elements of sheet metal with requirements for fire resistance
    • individual adaptation and production for your applications

    View Detail

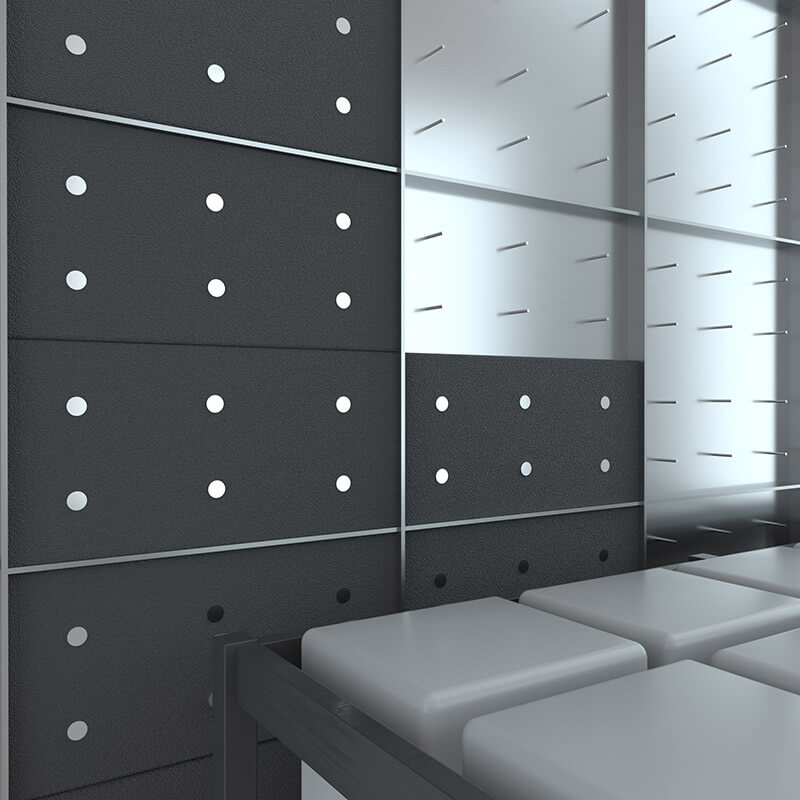

  5. ZZ® laminated elastic mats for technical cabinet linings

    Elastic mats with ALU or NBR lamination as an installation aid for lining technical cabinets in order to upgrade fire protection.


    Benefits
    • lining of technical cabinets for upgrading fire protection
    • large-surface applications in machine rooms and technical cabinets, especially on metal surfaces
    • especially suited for areas with small dimensions for fire protection measures as well as areas with simultaneous requirements for soundproofing and fire protection

    View Detail

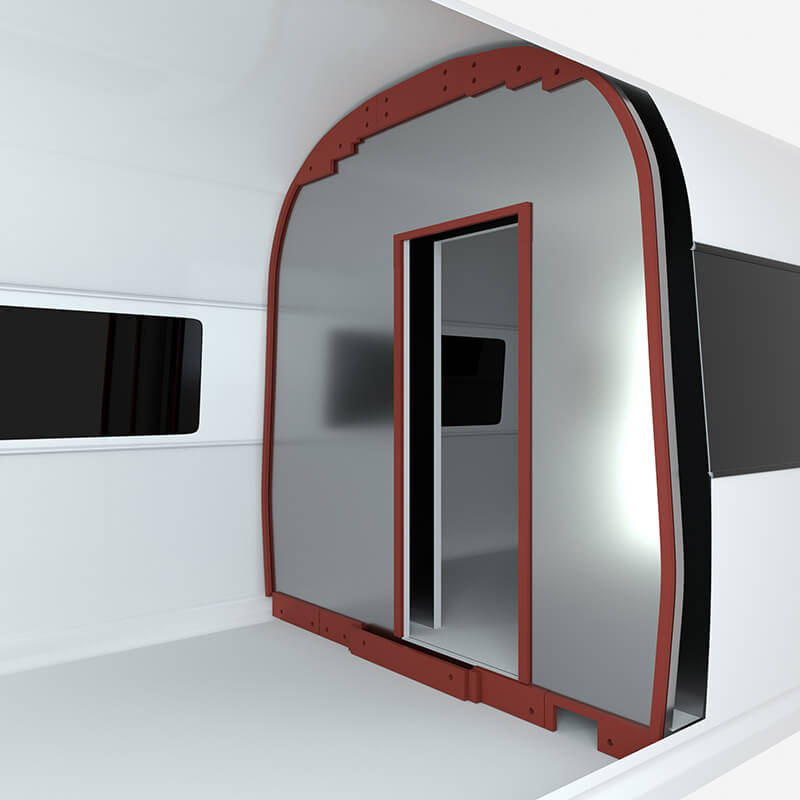

  6. ZZ® custom contour cut set

    Double-wall separating elements such as rail car bulkheads can be sealed with customized sets of contour cuts made of flexible fire protection foam. Dimensional tolerances can be compensated while creating a fire-proof seal. Custom contour cuts can be manufactured with complex geometries and adapted to the particular application.


    Benefits
    • lining of partial areas in wall and ceiling constructions
    • fire penetration seals in system walls in train compartments
    • custom sizing of fire protection mats, custom sizing of moulded components, precision adaptation of sets

    View Detail

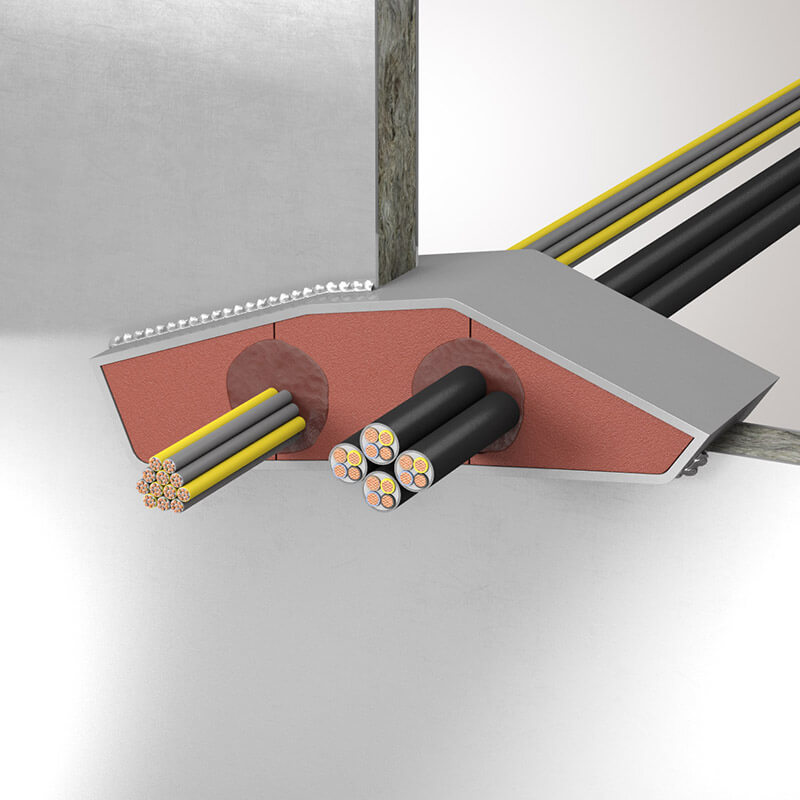

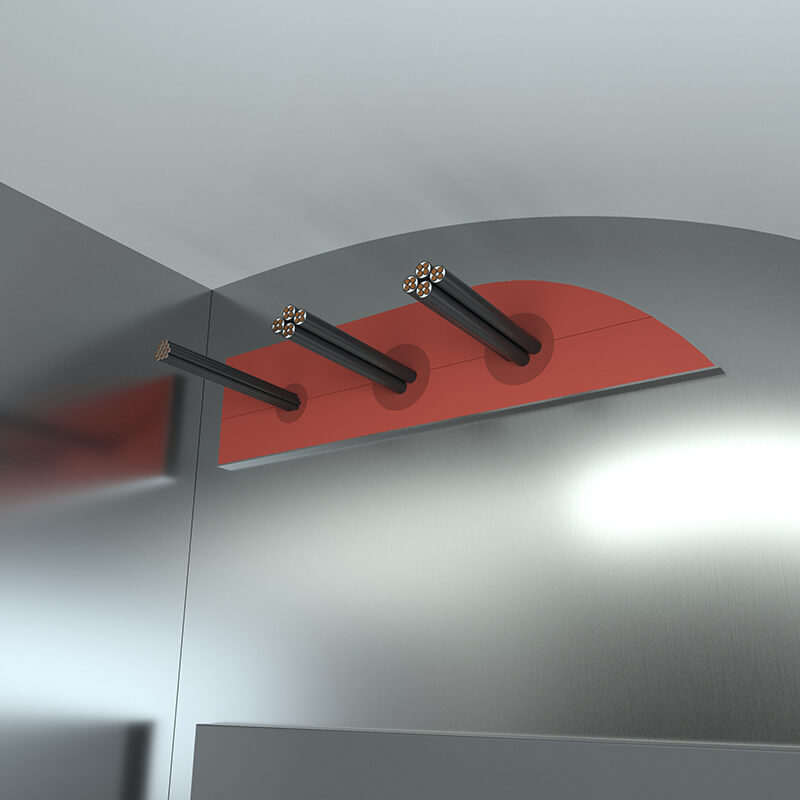

  7. ZZ® custom contour cuts as penetration seals

    Cable and pipe penetration seals for wall and ceiling constructions inside railway vehicles. Fire penetration seal for electrical cables, telecommunication cables and optical fibre cables, electrical installation conduits, as well as flammable and non-flammable pipes (including the corresponding pipe insulation).


    Benefits
    • custom moulded components as an individual penetration seal solution
    • series production of pre-fabricated system penetration seals
    • safe application and fast “plug and play” installation
    • penetration seals in train walls with complex dimensions and shapes
    • penetration seals with the requirement for retrofitting
    • Fire penetration seals up to fire resistance class EI 30

    View Detail

  8. Cable or pipe penetration seal for diving walls in passenger and personnel areas

    Through penetration fire protection system for electrical cables, telecommunication cables and optical fibre cables, electrical installation conduits, as well as flammable and non-flammable pipes (including the corresponding pipe insulation).


    Benefits
    • fast and easy sealing of component openings
    • especially suited for hard to reach and irregular openings
    • fire barrier up to fire resistance class EI 30

    View Detail

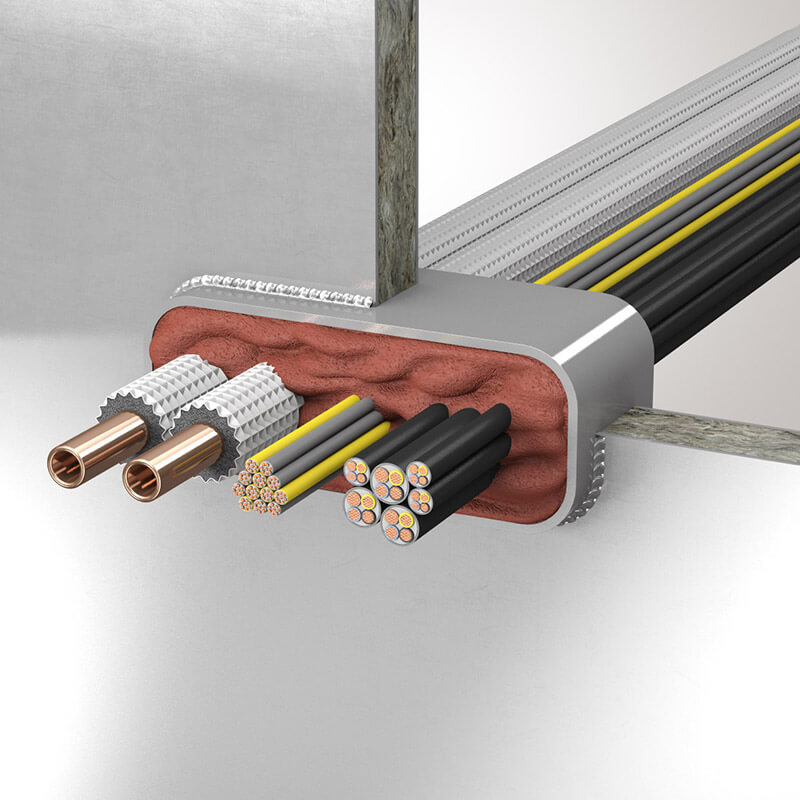

  9. Cable and pipe fire protection systems for wall and ceiling constructions inside railway vehicles

    Through penetration fire protection systems for electrical cables, telecommunication cables and optical fibre cables, electrical installation conduits, as well as flammable an non-flammable pipes (including the corresponding pipe insulation).


    Benefits
    • batch production of prefabricated system penetration seals
    • safe application and fast “plug and play” installation
    • Fire barriers up to fire resistance class EI 30

    View Detail

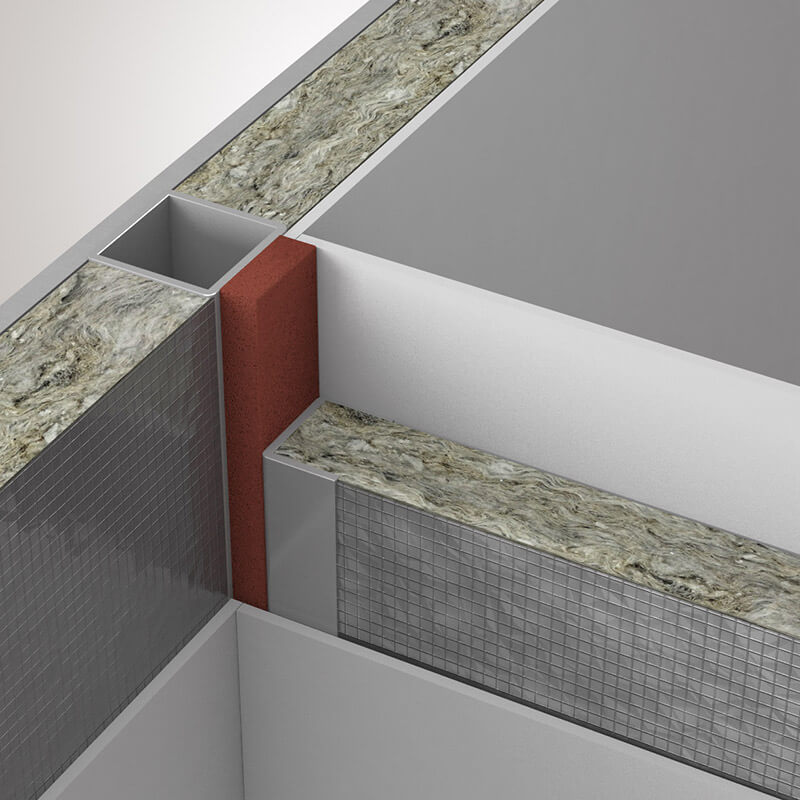

  10. Brandschutzfugendichtung für rauchgassichere Anschlussfugen

    Elastische Brandschutzfugenabdichtung für rauchgasdichte Anschlussfugen von extern gefertigten Wageneinbauten bzw. Wagenabtrennung zur Wagenaußenhaut.


    Vorteile
    • rauchgasdichte Anschlussfugen zwischen Wageneinbauten/Wagenabtrennung und der Wagenaußenhaut
    • Ausgleich von Maßtoleranzen bei extern gefertigten Wageneinbauten in den Wagenkasten

    View Detail

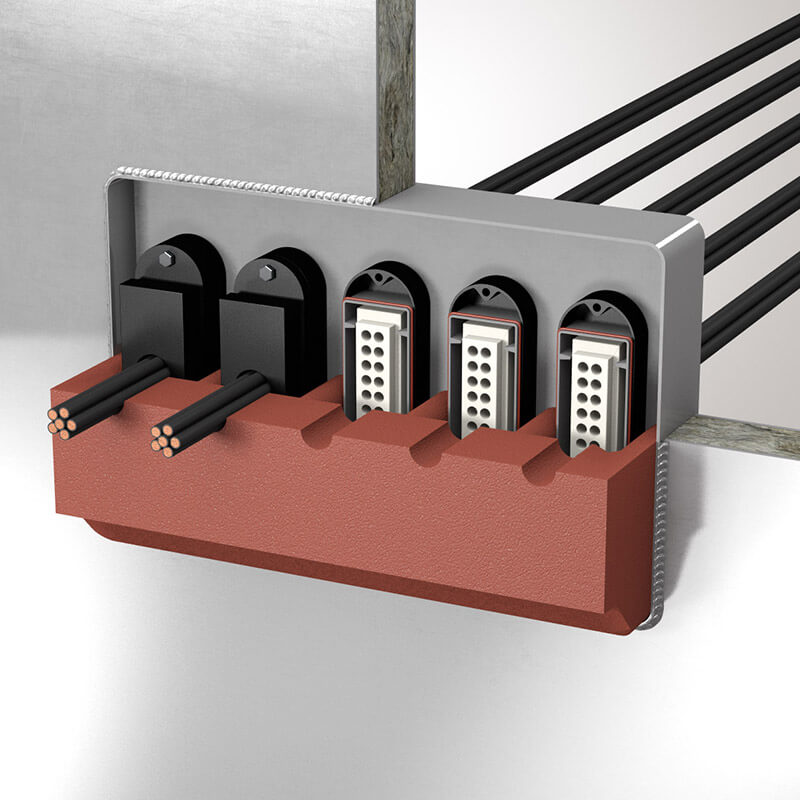

  11. ZZ® functional integrity of connectors and sensors

    Fire resistant fire protection enclosure for ensuring the functional integrity of safety-related electronic components and sensor technology (such as vehilce controllers, brake controllers, controls for doors and emergency exits)


    Benefits
    • functional integrity of safety systems and control electronics
    • Customisable 3-dimensional moulded components
    • safe application and fast “plug and play” installation

    View Detail

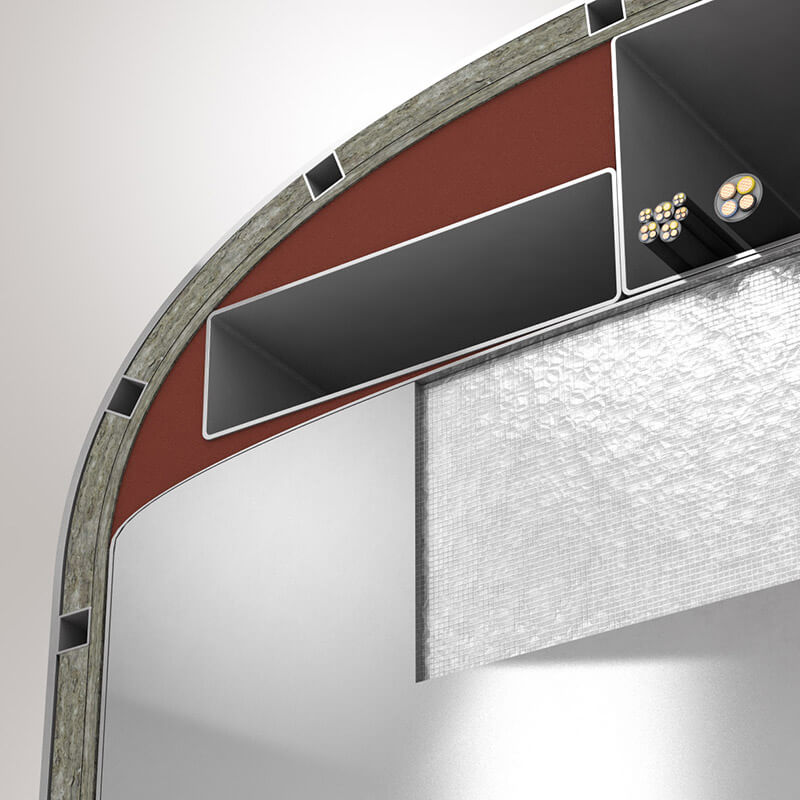

  12. ZZ® elastic moulded components for wall and ceiling linings

    Partial wall and ceiling linings up to ≤ 0.2 m² for situations in which dimensional tolerances have to be compensated with flexible foams, as well as for difficult installations.


    Benefits
    • partial lining for wall and ceiling constructions
    • compensation of dimensional tolerances within the penetrations through the separating element

    View Detail

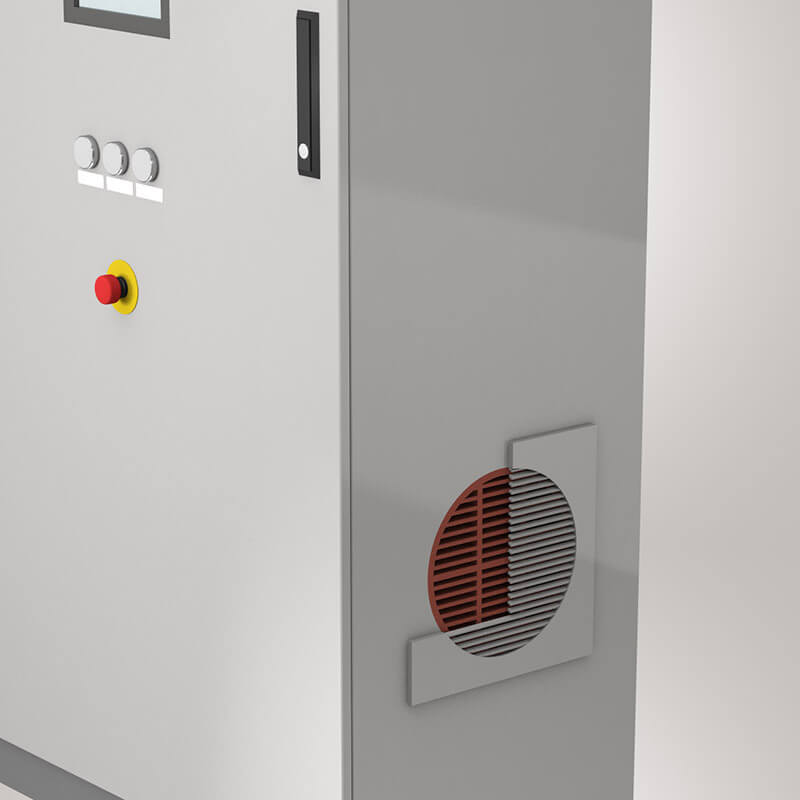

  13. Fire resistant seal for openings in air circulation and heat dissipation vents

    Fire resistant seal for openings in air circulation and heat dissipation vents within control cabinets, machine rooms, doors and ducts; intumescent


    Benefits
    • maintenance-free opening seal for round and square air vent openings in control cabinets, machine rooms, doors, and ducts for air circulation and heat dissipation

    View Detail
