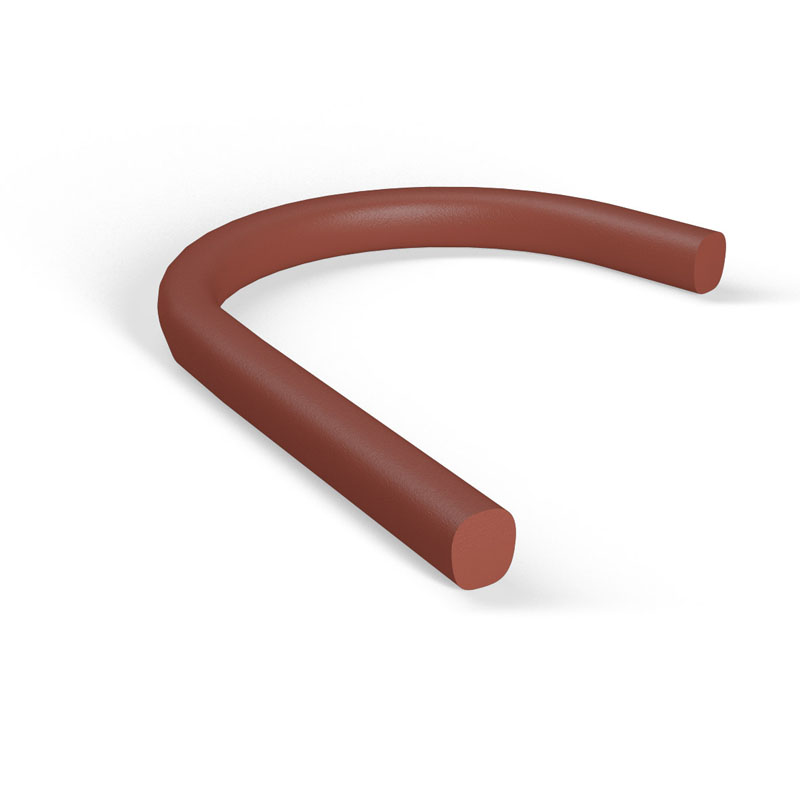

ZZ® 581 Fire Protection Joint Strip, round
Round elastic sealing tape made of intumescent fire protection foam. The product is available in various dimensions as standard and offers a wide range of solutions. Due to its elasticity, it compensates for inaccuracies and material expansion in structures caused by temperature differences.
| Name | ZZ® 581 Fire Protection Joint Strip, round |
| Manufacturer | Karl Zimmermann GmbH |
| Designation | Diameter [mm] | Art. no. | PU |
|---|---|---|---|
| ZZ® 581 Fire Protection Joint Strip, round | Ø 16 | B08N02-0024 | |
| ZZ® 581 Fire Protection Joint Strip, round | Ø 24 | B08N02-0025 | |
| ZZ® 581 Fire Protection Joint Strip, round | Ø 30 | B08N02-0026 | |
| ZZ® 581 Fire Protection Joint Strip, round | Ø 39 | B08N02-0027 | |
| ZZ® 581 Fire Protection Joint Strip, round | Ø 49 | B08N02-0028 | |
| ZZ® 581 Fire Protection Joint Strip, round | Ø 60 | B08N02-0029 | |
| ZZ® 581 Fire Protection Joint Strip, round | Ø 70 | B08N02-0030 | |
| ZZ® 581 Fire Protection Joint Strip, round | Ø 80 | B08N02-0031 |
Detailed information
Downloads
Description
Round elastic sealing tape made of intumescent fire protection foam. The product is available in various dimensions as standard and offers a wide range of solutions. Due to its elasticity, it compensates for inaccuracies and material expansion in structures caused by temperature differences.
Additional Information
| Classification of the reaction to fire according to DIN EN 13501-1 | Class E |
|---|---|
| Thermal conductivity | λ = 0.103 W/(m*K) Test standard: DIN EN 12667 |
| Bulk density | ρ ≥ 230 kg/m³ |
| Storage temperature | 5 °C – 30 °C |
| safety instructions | Please refer to the safety data sheet. |
