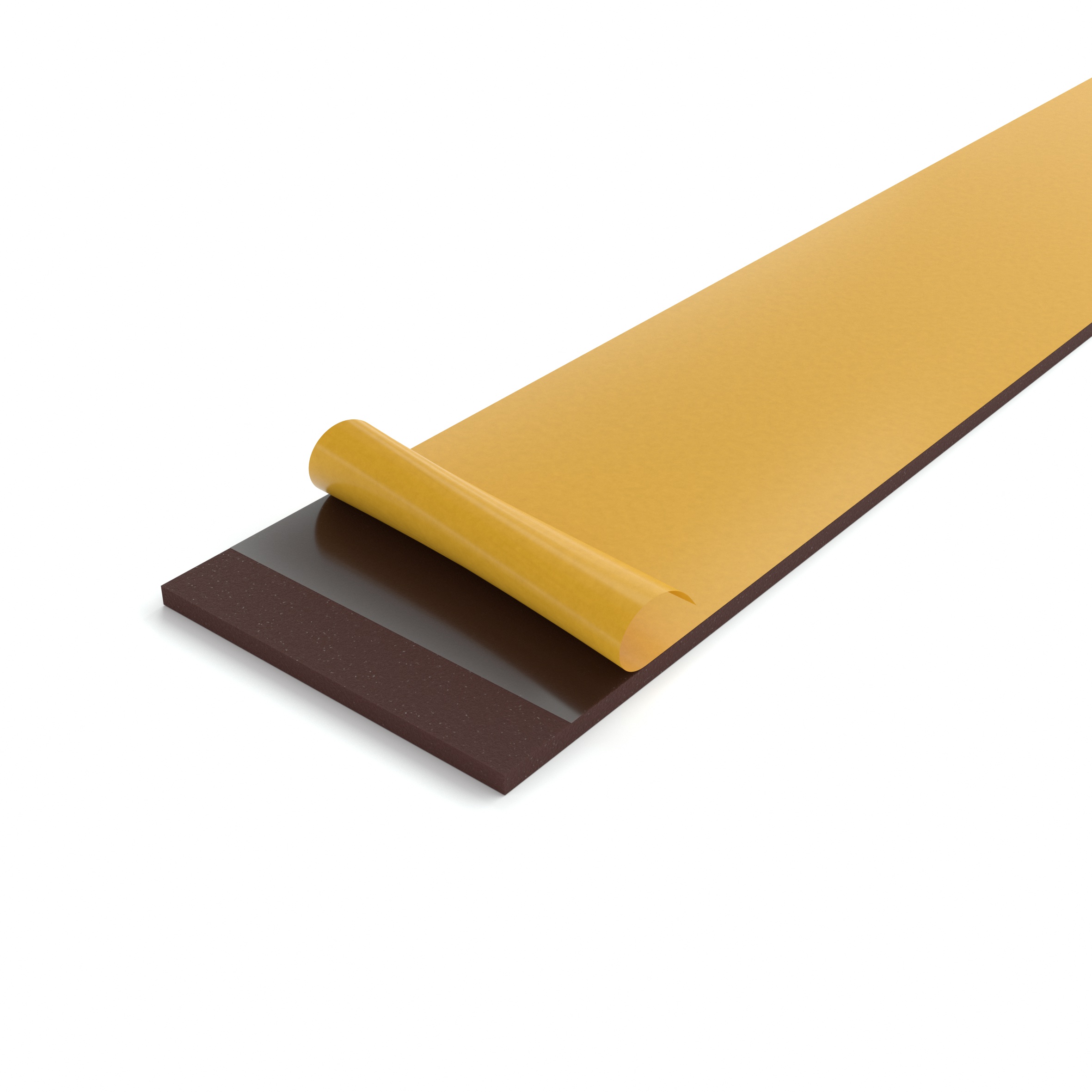

ZZ® 281-a Fire Protection Mat, self-adhesive
Elastic moulded part with a self-adhesive laminate as an installation aid. This is made from flexible intumescent fire protection foam. It can be manufactured in various dimensions (thickness, width and length).
| Name | ZZ® 281-a Fire Protection Mat, self-adhesive |
| Product type | CUT AND FIT |
| Manufacturer | Karl Zimmermann GmbH |
| Designation | Heigth [mm] | Art. no. | PU |
|---|---|---|---|
| ZZ® 281-a Fire Protection Mat, self-adhesive | 5 | B03N01-0360 | |
| ZZ® 281-a Fire Protection Mat, self-adhesive | 10 | B03N01-0361 | |
| ZZ® 281-a Fire Protection Mat, self-adhesive | 20 | B03N01-0362 | |
| ZZ® 281-a Fire Protection Mat, self-adhesive | 30 | B03N01-0363 | |
| ZZ® 281-a Fire Protection Mat, self-adhesive | 40 | B03N01-0364 | |
| ZZ® 281-a Fire Protection Mat, self-adhesive | 50 | B03N01-0365 |
Detailed information
Downloads
Description
Elastic moulded part with a self-adhesive laminate as an installation aid. This is made from flexible intumescent fire protection foam. It can be manufactured in various dimensions (thickness, width and length).
Additional Information
| Packaging units | 1 |
|---|---|
| Classification of the reaction to fire according to DIN EN 13501-1 | Class E |
| Thermal conductivity | λ = 0.103 W/(m*K) Test standard: DIN EN 12667 |
| Bulk density | ρ ≥ 230 kg/m³ |
| Storage temperature | 5 °C – 30 °C |
