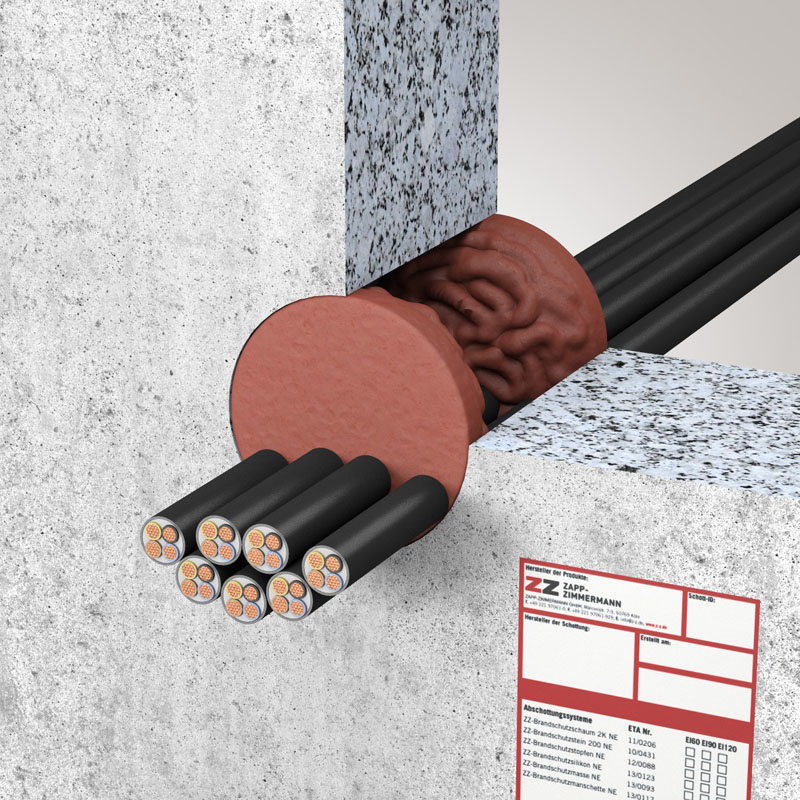

ZZ-Brandschutzmasse NE MW

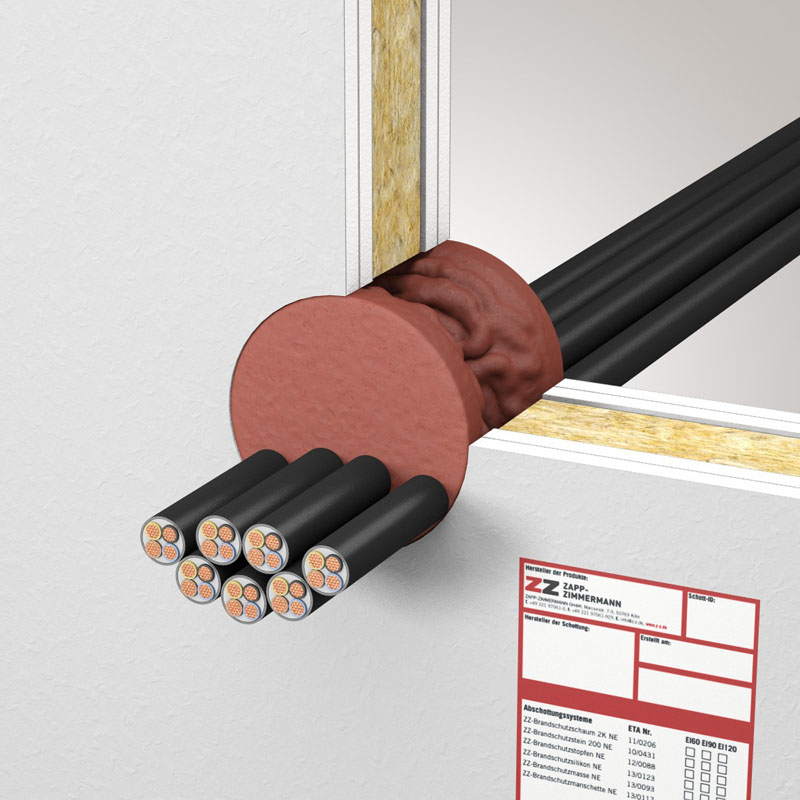

ZZ-Brandschutzmasse NE LTW
ZZ-Brandschutzmasse NE MW
ZZ-Brandschutzmasse NE LTW

ZZ® C30

Cable penetration seal up to EI 120 for rigid walls, rigid floors and flexible walls. Through penetration firestop system for all types of sheathed cables except waveguides.

Test norm EN 1366-3
Approval Number ETA-13/0093
Fire resistance class E, EI
Fire resistance duration [min] 60, 90, 120
Seal type Cable penetration seal
Seal opening angular, round, unregular
approved components flexible wall, rigid wall, rigid floor

System components

DesignationArt. no.PU
ZZ® 333 Fire Protection MasticB15N00-00131
Identification Plate ETAB16H00-00511

Detailed information

Downloads
  • European Technical Assessment
  • Installation Manual - ZZ® C30 ETA-13-0093
Description

Cable penetration seal up to EI 120 for rigid walls, rigid floors and flexible walls. Through penetration firestop system for all types of sheathed cables except waveguides.

Additional Information
Suitable for
  • Fast and easy sealing of component openings
  • ZZ® 333 Fire Protection Mastic has a high level of stability
  • Flammable backfill is possible
  • Low filling depth
  • Can be used in flexible wall without additional lining
Approved penetrating elements
  • Sheathed electrical cables, telecommunication cables, data cables and optical fibre cables except waveguides up to a maximum outer diameter of 21 mm
  • Retrofitting of additional cables allowed
Maximum dimensions in rigid wall width x height [mm]100x100 or Ø 113
Maximum dimensions in flexible wall width x height [mm]100x100 or Ø 113
Maximum dimensions in rigid floor width x height [mm]100x100 or Ø 113

Accessories

  1. Profi-Kartuschenpistole (310 ml)

    Cartridge Gun Professional 1K

  2. EconoMax Low Budget (310 ml 1K Kartusche & 580 ml Schlauchbeutel)

    Cartridge Gun EconoMax TB

  3. PowerMax (310 ml 1K Kartusche & 580 ml Schlauchbeutel)

    Cartridge Gun PowerMax Accu TB

  4. Glättspachtel 9 x 8,5 [cm]

    Smoothing Trowel

  5. Temperierbox WAECO TC 21FL

    DOMETIC Temperate Box
