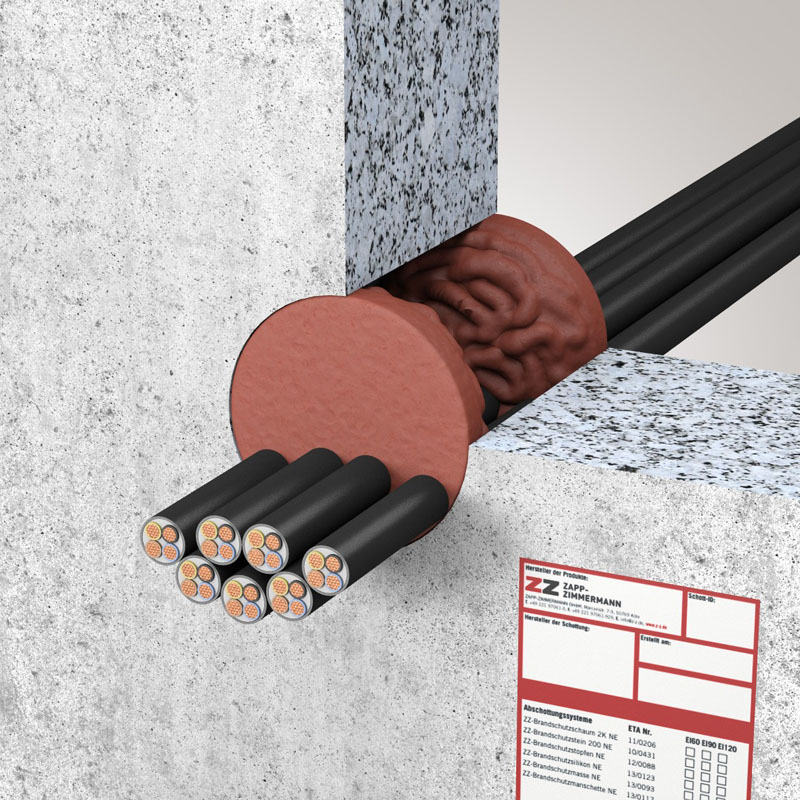

ZZ Fire Protection Mastic NE rigid wall

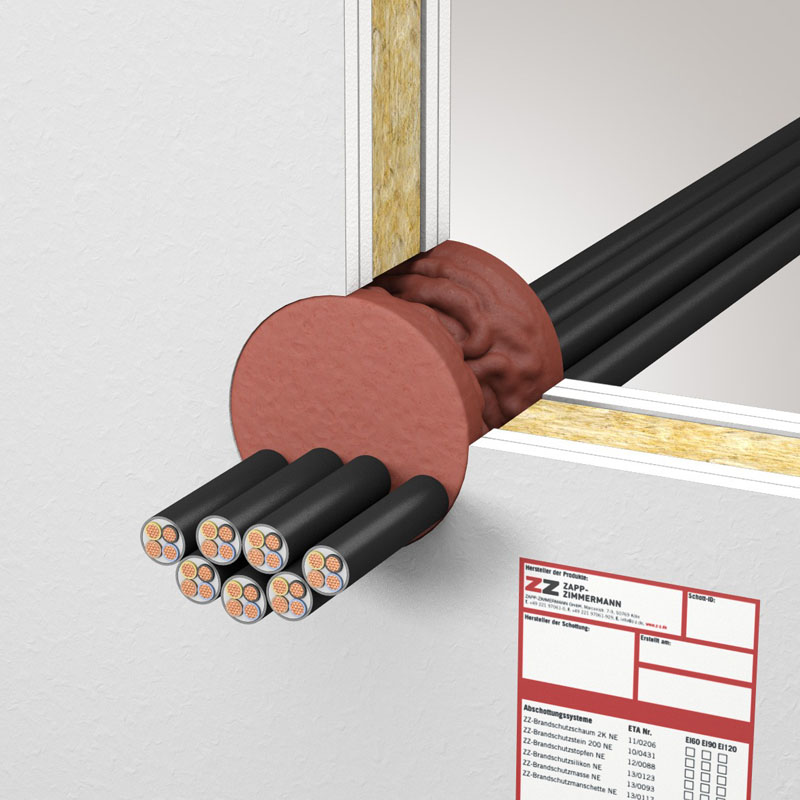

ZZ Fire Protection Mastic NE flexible wall
ZZ Fire Protection Mastic NE rigid wall
ZZ Fire Protection Mastic NE flexible wall

ZZ® C30

Cable penetration seal up to EI 120 for rigid walls, rigid floors and flexible walls. Through penetration firestop system for all types of sheathed cables except waveguides.

Test norm EN 1366-3
Approval Number ETA-13/0093
Fire resistance class E, EI
Fire resistance duration [min] 60, 90, 120
Seal type Cable penetration seal
Seal opening angular, round, unregular
approved components flexible wall, rigid wall, rigid floor

System components

DesignationArt. no.PU
ZZ® 333 Fire Protection Mastic show variants
Designation Art. no.PU
ZZ® 333 Fire Protection MasticB15N00-00131
ZZ® 333 Fire Protection MasticB15VP1-0013900
Identification Plate ETAB16H00-00511

Detailed information

Downloads

Download all

Description

Cable penetration seal up to EI 120 for rigid walls, rigid floors and flexible walls. Through penetration firestop system for all types of sheathed cables except waveguides.

Additional Information

Suitable for
  • Fast and easy sealing of component openings
  • ZZ® 333 Fire Protection Mastic has a high level of stability
  • Flammable backfill is possible
  • Low filling depth
  • Can be used in flexible wall without additional lining
Approved penetrating elements
  • Sheathed electrical cables, telecommunication cables, data cables and optical fibre cables except waveguides up to a maximum outer diameter of 21 mm
  • Retrofitting of additional cables allowed
Maximum dimensions in rigid wall width x height [mm]100x100 or Ø 113
Maximum dimensions in flexible wall width x height [mm]100x100 or Ø 113
Maximum dimensions in rigid floor width x height [mm]100x100 or Ø 113

Accessories
