ZZ® System No. C-AJ-4104 Cable tray with cables in solid wall or floor


  • Up to 6 in. by 24 in. steel or aluminum cable tray with max. 45% cable fill

  • F-Rating: 2 h; T-Rating: 1 h

  • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks

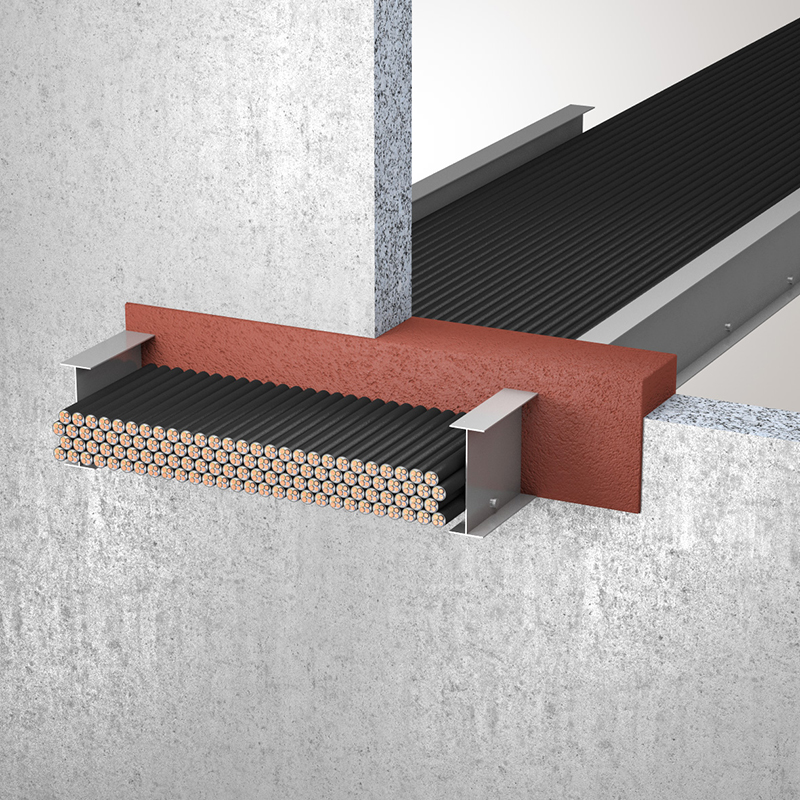

  • Fire Protection Foam ZZ® 360 only

  • Max. opening size: 224 in.² with a max dimension of 32 in.

  • Annular space: point contact to max. 3-1/2 in. (vertical) and 8 in. (horizontal)

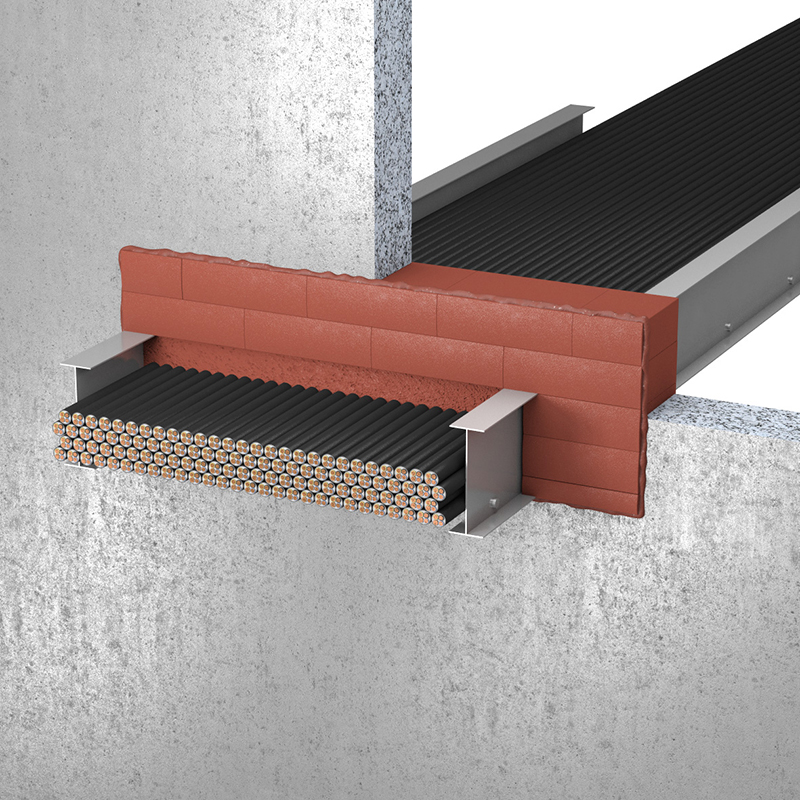

  • In combination with Fire Protection Block ZZ® 260

  • Maximum opening size: 384 in.² with a max dimension of 32 in.

  • Annular space: point contact to max. 3-1/2 in. (vertical) and 8 in. (horizontal) to periphery of opening or foam/block interface, rest of the opening has to be sealed with Fire Protection Block ZZ® 260

System information

Test norm UL 1479
Approval Number C-AJ-4104
Seal type Mixed penetration seal

System components

DesignationArt.-Nr.VE
ZZ® 365 Fire Protection SealantB15V12-00011

Detailinformationen

Downloads
  • Listing System No. C­-AJ-­4104
Description

Details

  • Up to 6 in. by 24 in. steel or aluminum cable tray with max. 45% cable fill
  • F-Rating: 2 h; T-Rating: 1 h
  • Floor or wall of min. 4-1/2 in. thick reinforced concrete or any UL Classified Concrete Blocks
  • Fire Protection Foam ZZ® 360 only
  • Max. opening size: 224 in.² with a max dimension of 32 in.
  • Annular space: point contact to max. 3-1/2 in. (vertical) and 8 in. (horizontal)
  • In combination with Fire Protection Block ZZ® 260
  • Maximum opening size: 384 in.² with a max dimension of 32 in.
  • Annular space: point contact to max. 3-1/2 in. (vertical) and 8 in. (horizontal) to periphery of opening or foam/block interface, rest of the opening has to be sealed with Fire Protection Block ZZ® 260
Additional Information

Additional Information
