ZZ® 345 Fire Protection Silicone
ZZ® 345 Fire Protection Silicone is characterised by excellent processing qualities and a high level of stability. ZZ® 345 Fire Protection Silicone can be used as cable penetration seal and for fire protection sealing of joints with minor and significant movement capability. The ZZ® 345 Fire Protection Silicone is available either in cartridges or tubular bag.

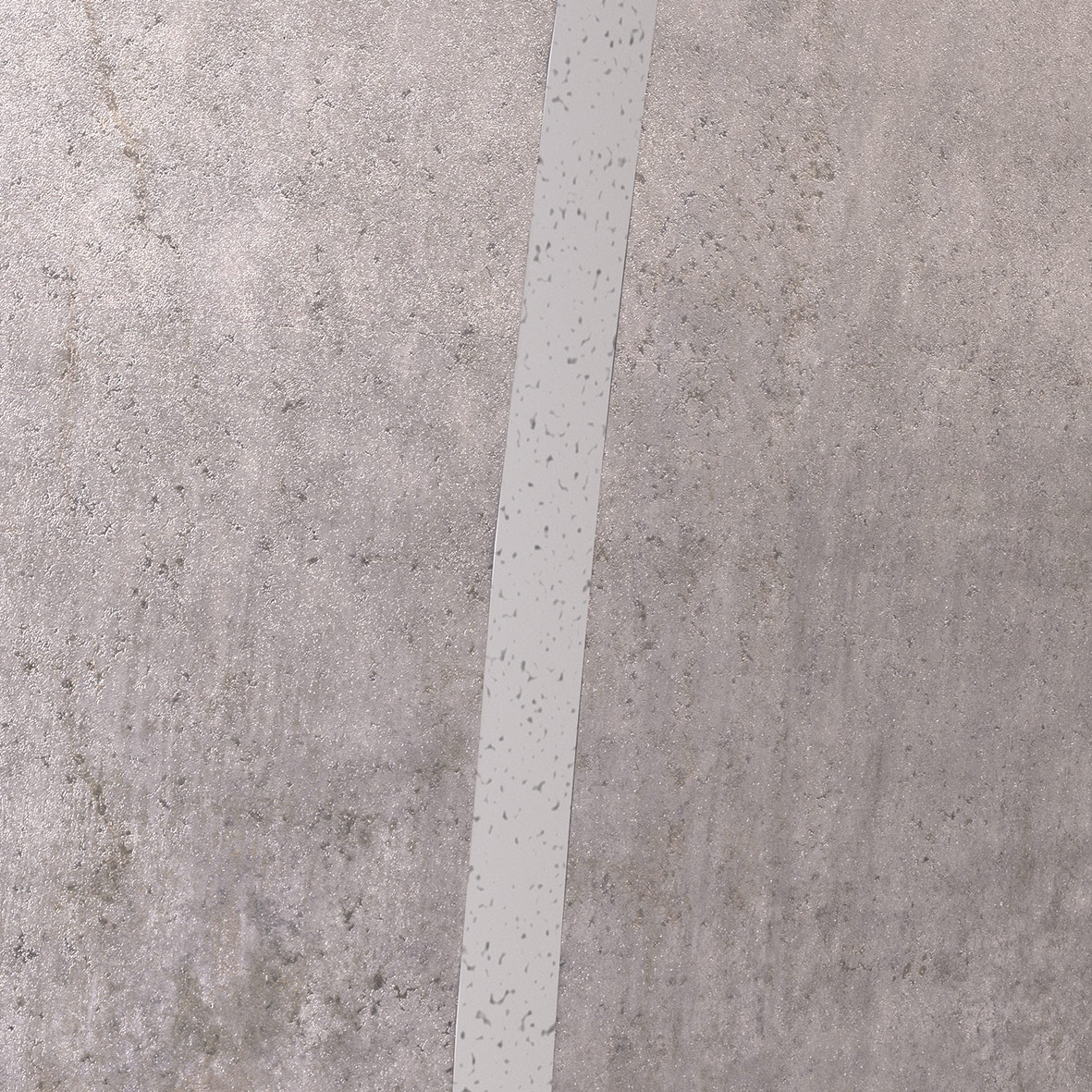

Fire protection in tunnels – tested according to RijksWaterStaat curve (RWS)
- Up to EI120 between concrete test specimens with 30 mm fibre cement boards
- Up to EI240 in combination with fibre cement boards
In addition, the ZZ® 345 Fire Protection Silicone has successfully passed the tests for durability and weather resistance (Type X classification).
| Name | ZZ® 345 Fire Protection Silicone |
| Manufacturer | ZAPP-ZIMMERMANN |
| Designation | Content | Art. no. | PU |
|---|---|---|---|
| ZZ® 345-C Fire Protection Silicone | cartridge | B15H00-0001 | 1 |
| ZZ® 345-TB Fire Protection Silicone | tubular bag | B15H00-0002 | 1 |
Detailed information
- Downloads
- Description
- Approval:
- ETA-12/0118 and ETA-13/0123
- Reaction to fire in accordance with DIN EN 13501-1:
- Class E
- Reaction to fire:
- DIN 4102-B1 in accordance with P-BWU03-I-16.5.352
- Classification in accordance with DIN EN ISO 11600:
- ISO 11600-F-20 LM
- Testing the fire protection properties under environmental influences:
- Use category x (product for use in outdoor areas, as well as indoor areas, also in areas with exposure to weather)
- Colour:
- Cement grey
- Content:
- 310 ml cartridge, 580 ml tubular bag
- Application temperature:
- + 5 °C to + 30 °C
- Storage:
- + 5 °C to + 30 °C (store dry and only in the original containers)
- Skin formation time:
- Approx. 10 minutes (at 23 °C and 50 % rel. humidity)
- Viscosity:
- Pasty, non-sag
- Hardening:
- Approx. 2 mm in 24 hours (at 23 °C and 50 % rel. humidity)
- Chemical basis:
- RTV-1 silicone (oxime system) with halogen-free fire protection agents
- Storage stability:
- 12 months at 23 °C / 50 % rel. humidity, shelf life, see imprint on the container
- Additional Information
Product Information tubular bag or cartridge
Storage temperature 5 °C – 30 °C
